Aeration Fine Bubble Disc Diffuser For Wastewater Treatment

Aeration Fine Bubble Disc Diffuser For Wastewater Treatment

aeration disc diffusers

bubble disc

fine bubble disc diffuser for wastewater treatment

Place of Origin:

CHINA

Brand Name:

DUBHE

Certification:

ISO

Model Number:

DUDH

Contact Us

Request A Quote
Product Details
Design Air Flow Range(Sm³/hr):
1.5-8
Service Area(㎡):
0.3-0.8
SOTE(%):
22-59
SOTR(kg O2/m3/hr):
0.13-0.4
Bubble Size(mm):
1-2
Sevice Life(year):
》5
Run Flow(m3/hr):
1—4.5
Membrane Thickness(mm):
2
Payment & Shipping Terms
Product Description

Fine bubble Disc Diffuser: Maximum Aeration Performance & Efficiency—DUDH Series

Aeration Fine Bubble Disc Diffuser For Wastewater Treatment 0
DESCRIPTION

Aeration Fine Bubble Disc Diffuser For Wastewater Treatment 1

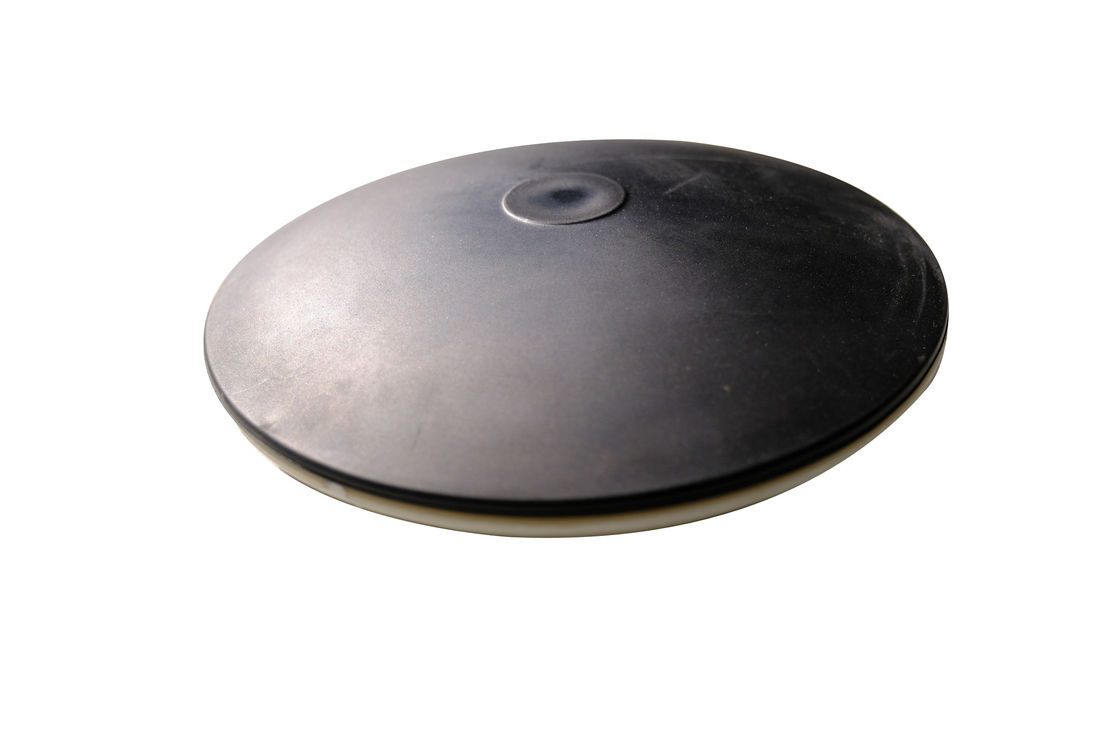

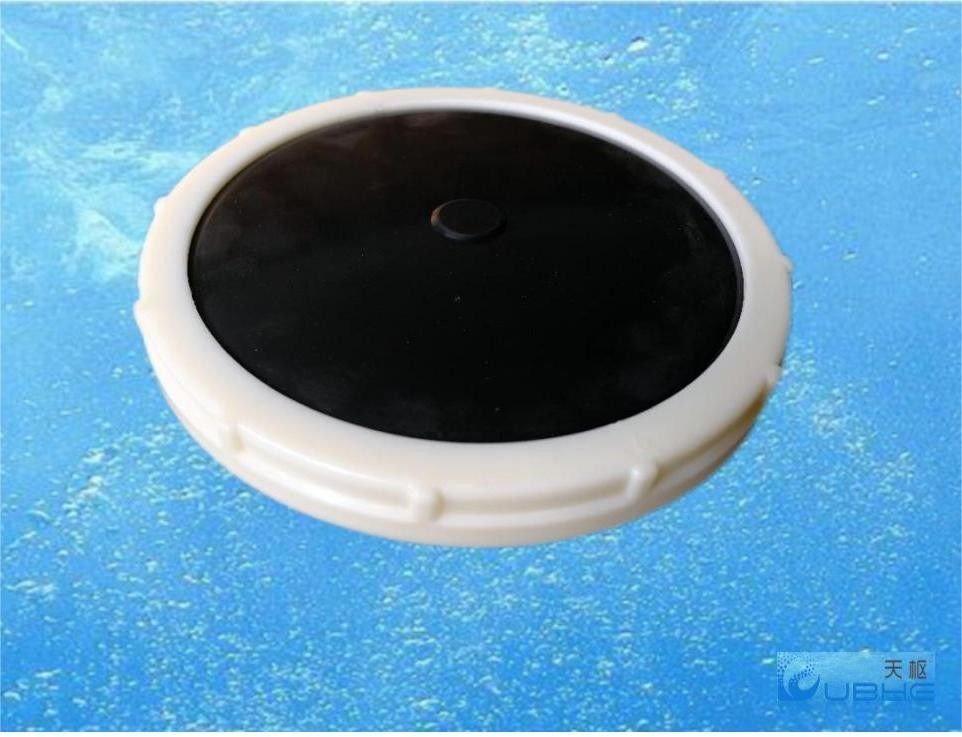

Construction: The Fine Bubble Disc Diffuser typically consists of a disc-shaped body made of high-quality materials such as EPDM (ethylene propylene diene monomer), silicone, or polyurethane. The disc is perforated with numerous small holes or slits, which serve as outlets for the release of fine bubbles.



Aeration Fine Bubble Disc Diffuser For Wastewater Treatment 0
FEATURES

High aeration effectiveness

The aeration process involves bringing together water and oxygen for oxidation and dissolution of metals and dissolution of gases. With our fine bubble disc diffuser and fine bubble tube diffuser, it makes the process more effective.

 High oxygen transfer efficiency (OTE)

Fine bubble diffusers generally work to treat water waste through OTE. However, with our products, it helps for a more enhanced process considering its specifications.

Energy efficient

Fine bubble diffusers have long been introduced opposite the coarse diffusers. One of the features of our product is its energy-saving mechanism.
That is, it needs lesser energy for it to work. In effect, you will benefit from energy conservation.

System versatility

We have fine bubble diffusers that suit different water waste management systems. These diffusers are manufactured to ensure that they can adapt to different kinds of systems and basins that are yet to be made or are already existing.

Material efficiency

Our diffusers are made from various materials from ethylene propylene diene monomer rubber (EPDM rubber), which is conventional material. We also have fEPDM which has high chemical resistance.
Some are also of polytetrafluoroethylene or (PTFE) to reduce fouling.

Aeration Fine Bubble Disc Diffuser For Wastewater Treatment 0
MATERIAL

Aeration Fine Bubble Disc Diffuser For Wastewater Treatment 4EPDM Membrane

Manufactured by a standard cure, low plasticizer content, and 1mm or 2mm perforations. DUBHE mold EPDM with modern equipment utilizing individual thermocouples and vacuum technology ensures a repeatable very high-quality product.

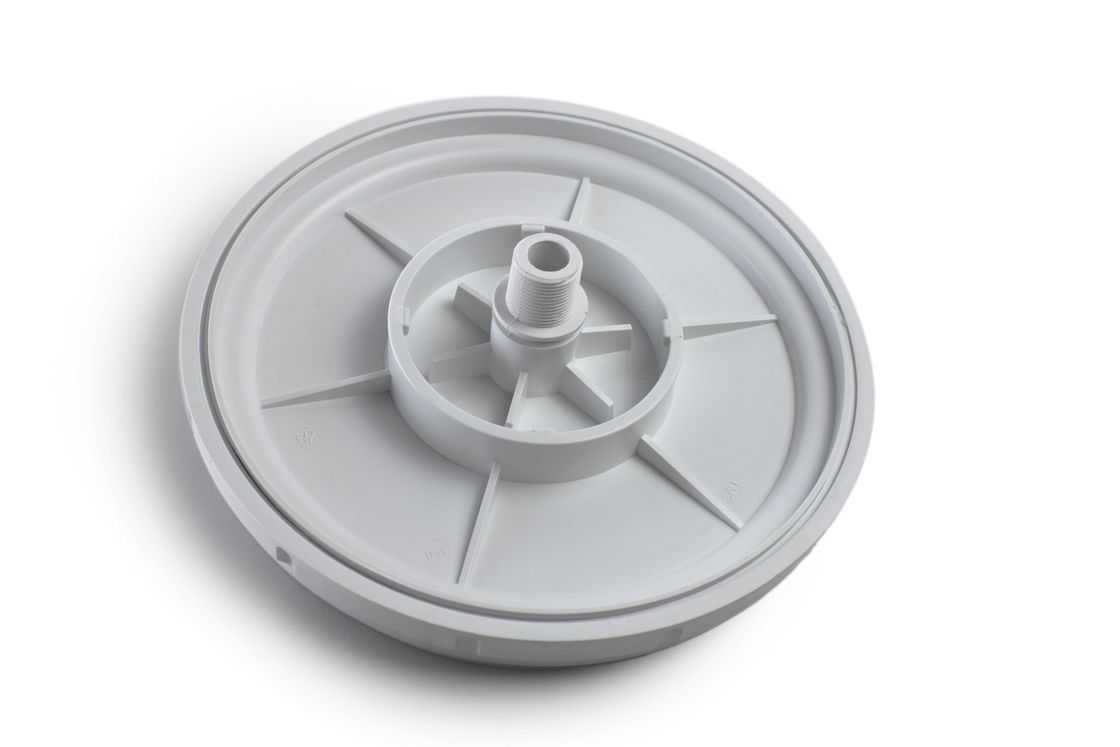

Aeration Fine Bubble Disc Diffuser For Wastewater Treatment 4Diffuser Bases

        The Diffuser Basesis molded with virgin polypropylene for extended performance, and is highly efficient with airflow performance of 1.5-2.5SCFM.

Aeration Fine Bubble Disc Diffuser For Wastewater Treatment 0
STRUCTURE



Aeration Fine Bubble Disc Diffuser For Wastewater Treatment 7



Aeration Fine Bubble Disc Diffuser For Wastewater Treatment 8

Aeration Fine Bubble Disc Diffuser For Wastewater Treatment 0
Working Process



Aeration Fine Bubble Disc Diffuser For Wastewater Treatment 10

Aeration Fine Bubble Disc Diffuser For Wastewater Treatment 0
SPECIFICATION

Aeration Fine Bubble Disc Diffuser For Wastewater Treatment 12

Aeration Fine Bubble Disc Diffuser For Wastewater Treatment 0
APPLICATION

Aeration Fine Bubble Disc Diffuser For Wastewater Treatment 14

Aeration Fine Bubble Disc Diffuser For Wastewater Treatment 0
CASE

  Aeration Fine Bubble Disc Diffuser For Wastewater Treatment 16 Aeration Fine Bubble Disc Diffuser For Wastewater Treatment 17 Aeration Fine Bubble Disc Diffuser For Wastewater Treatment 18 Aeration Fine Bubble Disc Diffuser For Wastewater Treatment 19 Aeration Fine Bubble Disc Diffuser For Wastewater Treatment 20
 Aeration Fine Bubble Disc Diffuser For Wastewater Treatment 21

Q: What's the MOQ?

A: Greater than 1 (not free shipping)

Q: Do you have an inspection report for the material?

A: Yes, we have

Q: Can we visit your company and factory?
A: Yes, you can
Q: Can you accept mixed batches of different products?
A: Yes, small device
