Coarse Aeration Fine Bubble Tube Diffuser Tubular Membrane Diffuser

Coarse Aeration Fine Bubble Tube Diffuser Tubular Membrane Diffuser

tubular diffuser

aeration diffuser tube

tubular membrane diffuser

Place of Origin:

CHINA

Brand Name:

DUBHE

Certification:

ISO

Model Number:

DUDH-1000

Contact Us

Request A Quote
Product Details
Service Area(㎡/individual):
1-3
Water Depth(m):
2-6
Ventilation Capacity(㎥/individual):
3-12
Oxygenation Capacity(kg/h):
0.9-1.5
Oxygen Utilization Rate(%):
35-42
Theoretical Power Efficiency (kg/kw·h):
6-9
Resistance Loss (mmH2O):
200-400
Payment & Shipping Terms
Product Description



Coarse Aeration Fine Bubble Tube Diffuser Tubular Membrane Diffuser 0
DESCRIPTION

Coarse Aeration Fine Bubble Tube Diffuser Tubular Membrane Diffuser 1

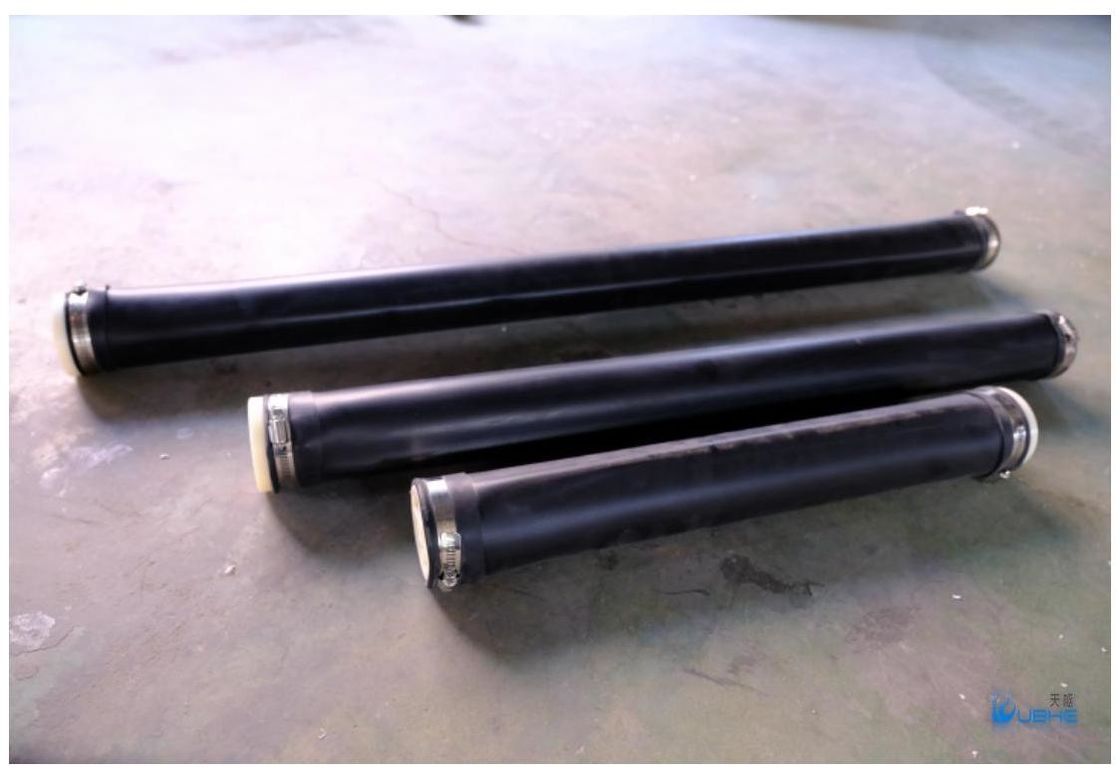

Fine bubble tube diffuser, abbreviated as tubular aerator, is a new type of energy-saving microporous aerator. The tubular microporous aeration pipe is composed of imported rubber diaphragm and gas supply main pipe. The tubular aerator has the characteristics of a simple structure, stable performance, no backflow of sewage, no clogging of pores, high oxygen utilization rate, uniform circumferential force, and convenient installation and maintenance. The tubular microporous aerator has reached the level of similar products abroad and is currently the more economical and reasonable aerator among aerators.



Coarse Aeration Fine Bubble Tube Diffuser Tubular Membrane Diffuser 0
STRUCTURE

Coarse Aeration Fine Bubble Tube Diffuser Tubular Membrane Diffuser 3The tubular microporous aerator adopts a tubular structure, and the membrane tension is greatly reduced compared to the disc aerator.



Coarse Aeration Fine Bubble Tube Diffuser Tubular Membrane Diffuser 4The rubber film of the tubular aerator adopts natural rubber adhesive and aging formula to extend the service life of the film



Coarse Aeration Fine Bubble Tube Diffuser Tubular Membrane Diffuser 5Uniform opening with a large number of holes, with each group having 6624 holes × 2 (ordinary disc type microporous aerator Φ 215 for 2000 holes).



Coarse Aeration Fine Bubble Tube Diffuser Tubular Membrane Diffuser 6 Adopting stainless steel connecting fasteners, the interface is not prone to air leakage and is easy to disassemble.



Coarse Aeration Fine Bubble Tube Diffuser Tubular Membrane Diffuser 5The tubular microporous aerator has a high oxygen utilization rate, uniform gas distribution, no blockage, long service life, no water accumulation in the trachea, and stable and reliable performance.



Coarse Aeration Fine Bubble Tube Diffuser Tubular Membrane Diffuser 6Simple installation structure, non-buoyancy aeration pipe, and convenient design and use.







Coarse Aeration Fine Bubble Tube Diffuser Tubular Membrane Diffuser 9    Coarse Aeration Fine Bubble Tube Diffuser Tubular Membrane Diffuser 10



Coarse Aeration Fine Bubble Tube Diffuser Tubular Membrane Diffuser 0
FEATURES



Fine bubble tube diffuser is a non-clogging type that combines automatic cleaning and prevents the reverse flow of sewage. Due to the suspension of air supply by the blower, the membrane contracts and closes in a timely manner, and sewage never seeps back into the tubular aerator. When the blower is restarted, the membrane expands and releases bubbles, while also bouncing away the sludge adhering to the surface of the membrane. This maintenance-free feature is a good choice for activated sludge construction. Due to the fact that the diffusion adhesive of the microporous aerator is made of imported rubber, it has excellent physical and mechanical properties. The accessories and air pipes are composed of engineering plastics, so they are not afraid of corrosion and have possible performance, reducing the workload of operation and maintenance.

Coarse Aeration Fine Bubble Tube Diffuser Tubular Membrane Diffuser 0
PRINCIPLE

Fine bubble tube diffuser is a water treatment oxygen-filling device. Its working principle is that oxygen is transported by a blower through a pipeline and enters the microporous aerator through a pipeline. Then, microporous bubbles are blown out through the microporous membrane on the aerator, fully diffusing and mixing into the mixed liquid, allowing the oxygen in the bubbles to dissolve into the mixed liquid, providing dissolved oxygen required for microbial biochemical reactions, and ensuring sufficient mixing of sewage, Keep the activated sludge in a suspended state. By fully contacting the three phases of mud, water, and gas, it is ensured that activated sludge fully utilizes the dissolved oxygen in the water to decompose organic pollutants.





Coarse Aeration Fine Bubble Tube Diffuser Tubular Membrane Diffuser 13

Coarse Aeration Fine Bubble Tube Diffuser Tubular Membrane Diffuser 0
Unique System Strengths

Complete product line-----creating the system that fits your needs

DUBHE manufactures disc diffusers, tube diffusers, and we mount these products on a wide range of piping materials including PVC, CPVC, PP, and Stainless Steel.

We have the ability to attach diffusers to pipes using saddles, grommets, or pre-assembled PODS.

We can provide retrievable systems or fixed grids, and systems in dit form or mostly factory assembled.



Piping system integrity icker wall pipe and double anchors for fewer breakages.

Our piping has double rod support stands as standard two anchors for each support location means twice the resistance to hydraulic and thermal loads. Most often supports fail due to temperature and water velocity.SSllocates two anchors where support is needed most, helping to increase product longevity.

Coarse Aeration Fine Bubble Tube Diffuser Tubular Membrane Diffuser 0
SPECIFICATION



Coarse Aeration Fine Bubble Tube Diffuser Tubular Membrane Diffuser 16





Comprehensive design service and after-sales support



DUBHE provides full design services, including biological and mixing calculations, process simulations, and hydraulic studies. We maintain a full drafting department with 3D and animation capabilities and we can assist with specifications and CAD drawings. Our service and installation crew can hold your hand during the early stages of the project and our worldwide multilingual staff is dedicated to your complete satisfaction.

Coarse Aeration Fine Bubble Tube Diffuser Tubular Membrane Diffuser 17  Coarse Aeration Fine Bubble Tube Diffuser Tubular Membrane Diffuser 18  Coarse Aeration Fine Bubble Tube Diffuser Tubular Membrane Diffuser 19Coarse Aeration Fine Bubble Tube Diffuser Tubular Membrane Diffuser 20




Coarse Aeration Fine Bubble Tube Diffuser Tubular Membrane Diffuser 21

Q: Do you have any MOQ limit?

A: Greater than 1 (not free shipping)

Q: Can you print our logo on the outer package?

A: Yes

Q: Can we visit your company and factory?

A: Yes, you can

Q: Can you accept mixed batches of different products?

A: Yes
