Aeration Disc Type Fine Bubble Diffuser Wastewater Treatment

Aeration Disc Type Fine Bubble Diffuser Wastewater Treatment

fine bubble diffusers wastewater treatment

aeration diffuser fine bubble

bubble disc diffuser

Place of Origin:

CHINA

Brand Name:

DUBHE

Certification:

ISO

Model Number:

DUDH-7

Contact Us

Request A Quote
Product Details
Design Air Flow Range(Sm³/hr):
1.5-3
Service Area(㎡):
0.3-0.65
SOTE(%):
22-40
SOTR(kg O2/m3/hr):
0.13-0.4
Bubble Size(mm):
1-2
Sevice Life(year):
》5
Run Flow(m3/hr):
1—2
Membrane Thickness(mm):
2
Payment & Shipping Terms
Product Description

Fine Bubble Disc Diffuser: Maximum Aeration Performance & Efficiency—DUDH-7





Aeration Disc Type Fine Bubble Diffuser Wastewater Treatment 0
DESCRIPTION

Aeration Disc Type Fine Bubble Diffuser Wastewater Treatment 1

The disc diaphragm type microporous aerator is the latest type of aeration device developed in the 1980s. The device has a small diameter of aeration bubbles, a small gas-liquid interface diameter, a large gas-liquid interface area, uniform bubble diffusion, and strong corrosion resistance.



Bubble diffusers are a vital part of the wastewater aeration and treatment processes, making it possible to force air bubbles into water pipes to feed the microorganisms in the tanks responsible for processing the water.

This widely-installed fine bubble diffuser actually comes in 3 alternate models for flexibility and effectiveness. Using the latest EPDM technology, we provide fine bubble disc diffusers that are responsive to the needs of wastewater treatments.

We take into great consideration the worldwide appeal against the growing energy cost crisis and the intolerable carbon emissions. The fine bubble disc diffuser is aimed at establishing maximum aeration performance and efficiency through constant research and development.

Generally, the fine bubble disc diffuser works to provide solutions to problems and concerns in wastewater treatment facilities. It is mainly applied for the aeration of municipal wastewater and other restricted industrial wastewater.

The materials used in the manufacture of fine bubble disc diffusers are meticulously studied and applied to potentially respond to wastewater issues.



Aeration Disc Type Fine Bubble Diffuser Wastewater Treatment 0
FEATURES



 Aeration Disc Type Fine Bubble Diffuser Wastewater Treatment 3

      Wide Range of Applications:

          The Dubhe DUDH disc aerator can be used in a wide range of water treatment applications, including municipal                          wastewater treatment, industrial wastewater treatment, and aquaculture.

Aeration Disc Type Fine Bubble Diffuser Wastewater Treatment 3

     Quiet Operation:



          The Dubhe DUDH disc aerator is designed to operate quietly, which is important for wastewater treatment plants located            in urban areas.

Aeration Disc Type Fine Bubble Diffuser Wastewater Treatment 3

     Modular Design:



          The device is designed with a modular design, which allows for easy installation and maintenance, as well as flexibility in             the configuration of the aerator.



Aeration Disc Type Fine Bubble Diffuser Wastewater Treatment 3Material efficiency

Our diffusers are made from various materials from ethylene propylene diene monomer rubber (EPDM rubber), which is conventional material. We also have fEPDM which has high chemical resistance.
Some are also of polytetrafluoroethylene or (PTFE) to reduce fouling.

Aeration Disc Type Fine Bubble Diffuser Wastewater Treatment 0
MATERIAL

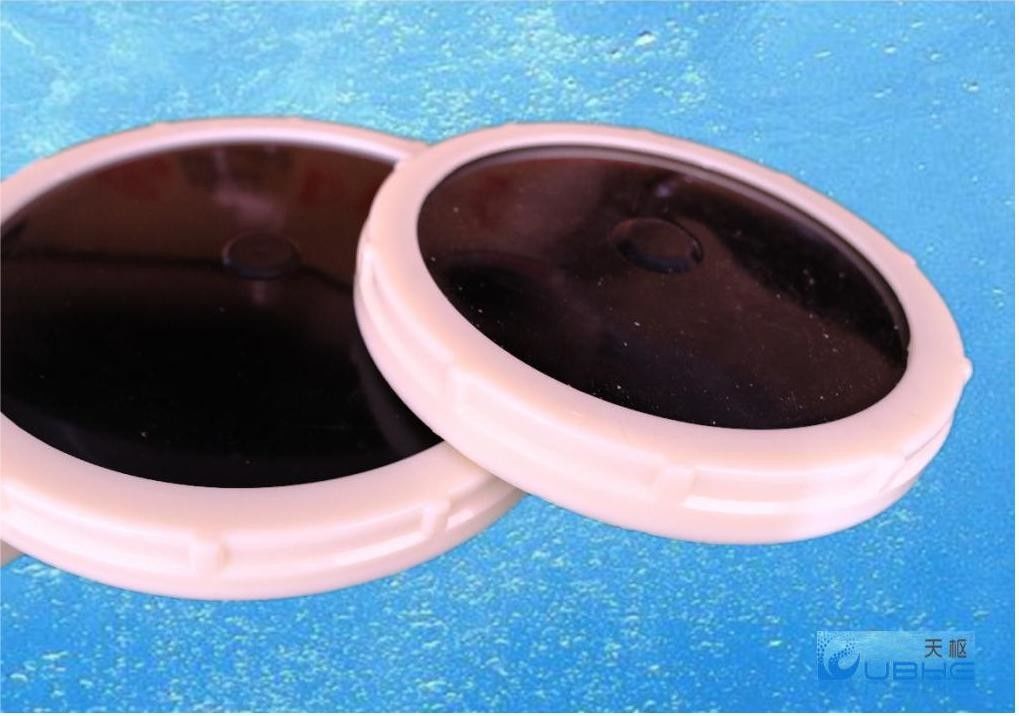

Aeration Disc Type Fine Bubble Diffuser Wastewater Treatment 8EPDM Membrane

Manufactured by a standard cure, low plasticizer content, and 1mm or 2mm perforations. DUBHE mold EPDM with modern equipment utilizing individual thermocouples and vacuum technology ensures a repeatable very high-quality product.

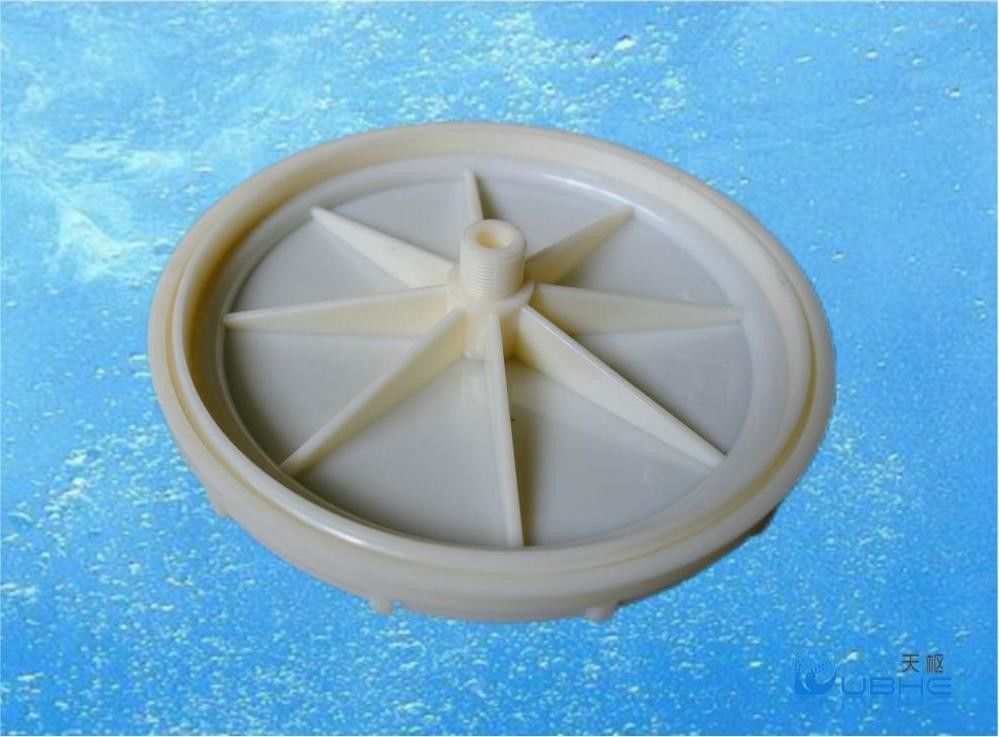

Aeration Disc Type Fine Bubble Diffuser Wastewater Treatment 8Diffuser Bases

The Diffuser Basesis molded with virgin polypropylene for extended performance, and is highly efficient with airflow performance of 1.5-2.5SCFM.

Aeration Disc Type Fine Bubble Diffuser Wastewater Treatment 0
STRUCTURE

Aeration Disc Type Fine Bubble Diffuser Wastewater Treatment 11



Aeration Disc Type Fine Bubble Diffuser Wastewater Treatment 12

Aeration Disc Type Fine Bubble Diffuser Wastewater Treatment 0
Working Process

Aeration Disc Type Fine Bubble Diffuser Wastewater Treatment 14

Aeration Disc Type Fine Bubble Diffuser Wastewater Treatment 0
SPECIFICATION

Aeration Disc Type Fine Bubble Diffuser Wastewater Treatment 16

Aeration Disc Type Fine Bubble Diffuser Wastewater Treatment 0
APPLICATION

Aeration Disc Type Fine Bubble Diffuser Wastewater Treatment 18

Aeration Disc Type Fine Bubble Diffuser Wastewater Treatment 0
CASE

  Aeration Disc Type Fine Bubble Diffuser Wastewater Treatment 20 Aeration Disc Type Fine Bubble Diffuser Wastewater Treatment 21 Aeration Disc Type Fine Bubble Diffuser Wastewater Treatment 22 Aeration Disc Type Fine Bubble Diffuser Wastewater Treatment 23 Aeration Disc Type Fine Bubble Diffuser Wastewater Treatment 24
Aeration Disc Type Fine Bubble Diffuser Wastewater Treatment 25

Q: Can you accept mixed batches of different products?

A: Yes.

Q: What is the lead time of an order?

A: About 7-30 days.

Q: Can I have a sample order?

A: No.

Q: What's the delivery time?

A: About 30 days.
