Aeration Fine Bubble Tube Diffusers Wastewater 2 Inch Pipe Air Diffuser Pipe

Aeration Fine Bubble Tube Diffusers Wastewater 2 Inch Pipe Air Diffuser Pipe

fine bubble aeration tube

air diffuser pipe

tube diffusers wastewater

Place of Origin:

CHINA

Brand Name:

DUBHE

Certification:

ISO

Model Number:

DUDH-1000

Contact Us

Request A Quote
Product Details
Service Area(㎡/individual):
1-3
Water Depth(m):
2-6
Ventilation Capacity(㎥/individual):
3-12
Oxygenation Capacity(kg/h):
0.9-1.5
Oxygen Utilization Rate(%):
35-42
Theoretical Power Efficiency (kg/kw·h):
6-9
Resistance Loss (mmH2O):
200-400
Payment & Shipping Terms
Product Description

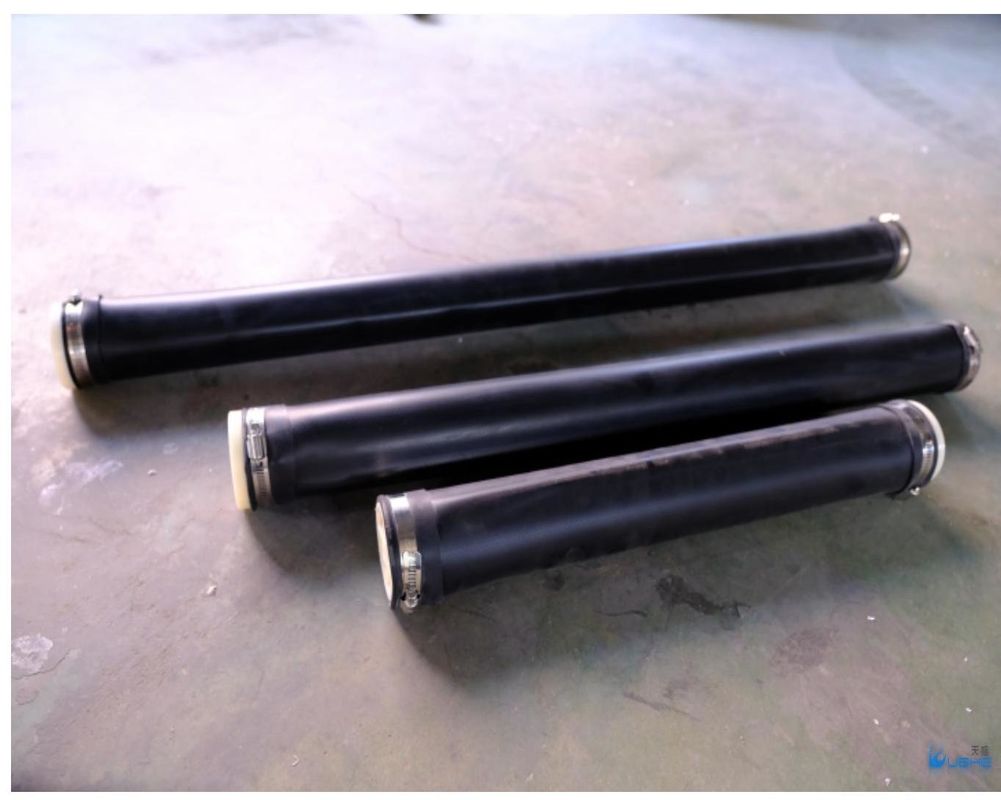

Tube Diffuser With EPDM Membrane Sewage Treatment(with 2 inch pipe)



Aeration Fine Bubble Tube Diffusers Wastewater 2 Inch Pipe Air Diffuser Pipe 0
DESCRIPTION

Aeration Fine Bubble Tube Diffusers Wastewater 2 Inch Pipe Air Diffuser Pipe 1



Fine bubble tube diffuser, abbreviated as tubular aerator, is a new type of energy-saving microporous aerator. The tubular microporous aeration pipe is composed of imported rubber diaphragm and gas supply main pipe. The tubular aerator has the characteristics of a simple structure, stable performance, no backflow of sewage, no clogging of pores, high oxygen utilization rate, uniform circumferential force, and convenient installation and maintenance. The tubular microporous aerator has reached the level of similar products abroad and is currently the more economical and reasonable aerator among aerators.



Aeration Fine Bubble Tube Diffusers Wastewater 2 Inch Pipe Air Diffuser Pipe 0
STRUCTURE

Aeration Fine Bubble Tube Diffusers Wastewater 2 Inch Pipe Air Diffuser Pipe 3The tubular microporous aerator adopts a tubular structure, and the membrane tension is greatly reduced compared to the disc aerator.



Aeration Fine Bubble Tube Diffusers Wastewater 2 Inch Pipe Air Diffuser Pipe 4The rubber film of the tubular aerator adopts natural rubber adhesive and aging formula to extend the service life of the film



Aeration Fine Bubble Tube Diffusers Wastewater 2 Inch Pipe Air Diffuser Pipe 5Uniform opening with a large number of holes, with each group having 6624 holes × 2 (ordinary disc type microporous aerator Φ 215 for 2000 holes).



Aeration Fine Bubble Tube Diffusers Wastewater 2 Inch Pipe Air Diffuser Pipe 6 Adopting stainless steel connecting fasteners, the interface is not prone to air leakage and is easy to disassemble.



Aeration Fine Bubble Tube Diffusers Wastewater 2 Inch Pipe Air Diffuser Pipe 5The tubular microporous aerator has a high oxygen utilization rate, uniform gas distribution, no blockage, long service life, no water accumulation in the trachea, and stable and reliable performance.



Aeration Fine Bubble Tube Diffusers Wastewater 2 Inch Pipe Air Diffuser Pipe 6Simple installation structure, non-buoyancy aeration pipe, and convenient design and use.







Aeration Fine Bubble Tube Diffusers Wastewater 2 Inch Pipe Air Diffuser Pipe 9    Aeration Fine Bubble Tube Diffusers Wastewater 2 Inch Pipe Air Diffuser Pipe 10



Aeration Fine Bubble Tube Diffusers Wastewater 2 Inch Pipe Air Diffuser Pipe 0
FEATURES



The non-clogging fine bubble tube diffuser is designed with automatic cleaning and prevention of sewage reverse flow. The membrane contracts and closes in a timely manner when the blower suspends air supply, preventing sewage from seeping back into the tubular aerator. When the blower is restarted, the membrane expands and releases bubbles, bouncing away sludge adhering to its surface. This maintenance-free feature makes it a suitable choice for activated sludge construction. The microporous aerator's diffusion adhesive is made of imported rubber, providing excellent physical and mechanical properties. The accessories and air pipes are made of engineering plastics, which are corrosion-resistant and have high performance, reducing the workload of operation and maintenance.

Aeration Fine Bubble Tube Diffusers Wastewater 2 Inch Pipe Air Diffuser Pipe 0
PRINCIPLE

Fine bubble tube diffuser is a water treatment oxygen-filling device. Its working principle is that oxygen is transported by a blower through a pipeline and enters the microporous aerator through a pipeline. Then, microporous bubbles are blown out through the microporous membrane on the aerator, fully diffusing and mixing into the mixed liquid, allowing the oxygen in the bubbles to dissolve into the mixed liquid, providing dissolved oxygen required for microbial biochemical reactions, and ensuring sufficient mixing of sewage, Keep the activated sludge in a suspended state. By fully contacting the three phases of mud, water, and gas, it is ensured that activated sludge fully utilizes the dissolved oxygen in the water to decompose organic pollutants.





Aeration Fine Bubble Tube Diffusers Wastewater 2 Inch Pipe Air Diffuser Pipe 13

Aeration Fine Bubble Tube Diffusers Wastewater 2 Inch Pipe Air Diffuser Pipe 0
Unique System Strengths

Complete product line-----creating the system that fits your needs

DUBHE produces a range of diffusers, including disc diffusers and tube diffusers, which can be mounted on various piping materials such as PVC, CPVC, PP, and Stainless Steel.

We offer multiple options for attaching the diffusers to pipes, including saddles, grommets, and pre-assembled PODS.

Our systems can be designed as retrievable or fixed grids, and can be delivered as a kit or mostly factory assembled.



Piping system integrity icker wall pipe and double anchors for fewer breakages.

As standard, our piping is equipped with double rod support stands, offering two anchors for each support location. This design provides twice the resistance to hydraulic and thermal loads, which are the most common causes of support failure due to water velocity and temperature.

We strategically place two anchors at the points where support is most needed, helping to increase the longevity of our products.

Aeration Fine Bubble Tube Diffusers Wastewater 2 Inch Pipe Air Diffuser Pipe 0
SPECIFICATION



Aeration Fine Bubble Tube Diffusers Wastewater 2 Inch Pipe Air Diffuser Pipe 16





Comprehensive design service and after sales support



DUBHE offers comprehensive design services, which include biological and mixing calculations, hydraulic studies, and process simulations. Our drafting department is fully equipped with 3D and animation capabilities, and we can assist in preparing CAD drawings and specifications. Our service and installation crew can guide you through the early stages of the project, while our multilingual staff, located worldwide, is committed to ensuring your complete satisfaction.





Aeration Fine Bubble Tube Diffusers Wastewater 2 Inch Pipe Air Diffuser Pipe 17  Aeration Fine Bubble Tube Diffusers Wastewater 2 Inch Pipe Air Diffuser Pipe 18  Aeration Fine Bubble Tube Diffusers Wastewater 2 Inch Pipe Air Diffuser Pipe 19  Aeration Fine Bubble Tube Diffusers Wastewater 2 Inch Pipe Air Diffuser Pipe 20




Aeration Fine Bubble Tube Diffusers Wastewater 2 Inch Pipe Air Diffuser Pipe 21

Q: Can we visit your company and factory?

A:Yes,you can

Q: Can you accept mixed batch of different products?

A:Yes

Q: What is the lead time of an order?

A:About 7-30 days

Q:Can I have a sample order?

A:No
