Nano Fine Bubble Tube Diffuser Membrane Tube Diffuser

Nano Fine Bubble Tube Diffuser Membrane Tube Diffuser

tube diffuser membrane

nano tube diffuser

membrane tube diffuser

Place of Origin:

CHINA

Brand Name:

DUBHE

Certification:

ISO

Model Number:

DUDH-1000

Contact Us

Request A Quote
Product Details
Service Area(㎡/individual):
1-3
Water Depth(m):
2-6
Ventilation Capacity(㎥/individual):
3-12
Oxygenation Capacity(kg/h):
0.9-1.5
Oxygen Utilization Rate(%):
35-42
Theoretical Power Efficiency (kg/kw·h):
6-9
Resistance Loss (mmH2O):
200-400
Payment & Shipping Terms
Product Description

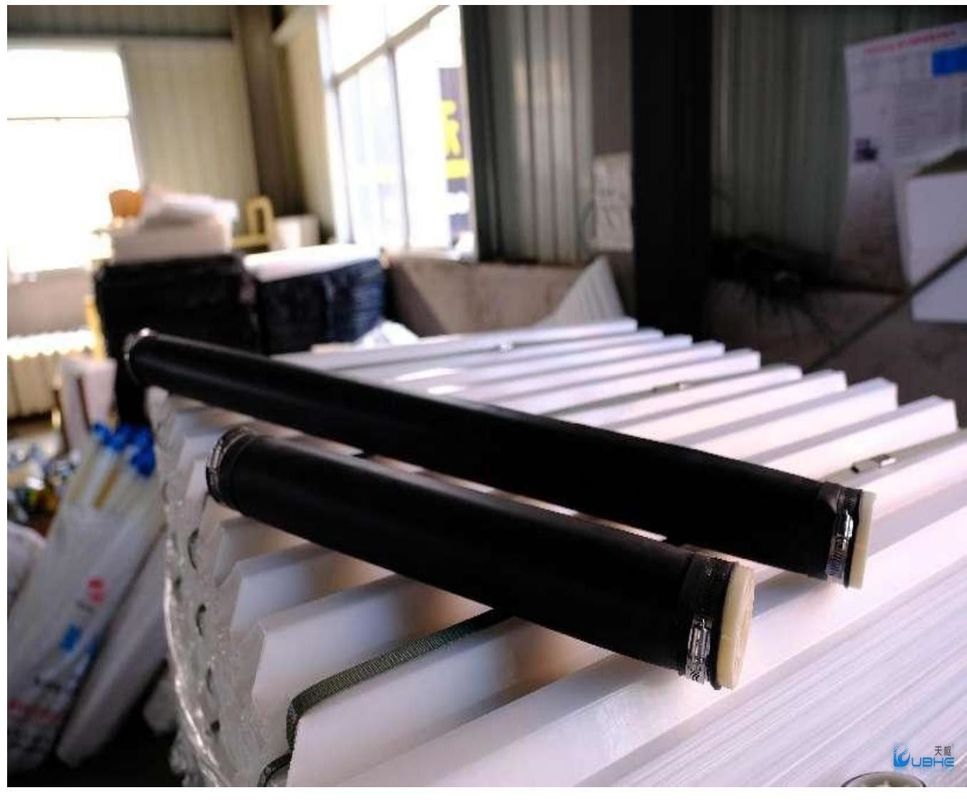

Tube Diffuser With EPDM Membrane Sewage Treatment(with 3 inch pipe)

Nano Fine Bubble Tube Diffuser Membrane Tube Diffuser 0
DESCRIPTION

Nano Fine Bubble Tube Diffuser Membrane Tube Diffuser 1

The EPDM membrane sewage treatment tubular aerator is a highly efficient aeration system designed for use in wastewater treatment plants. This particular model features a 3-inch tube and uses a flexible EPDM membrane to diffuse air into fine bubbles, increasing the surface area of the air-water interface and facilitating oxygen transfer. The membrane diffuser technology helps to create uniform aeration throughout the wastewater, ensuring that all areas of the water are properly oxygenated.

Nano Fine Bubble Tube Diffuser Membrane Tube Diffuser 0
STRUCTURE

Nano Fine Bubble Tube Diffuser Membrane Tube Diffuser 3The tubular microporous aerator adopts a tubular structure, and the membrane tension is greatly reduced compared to the disc aerator.



Nano Fine Bubble Tube Diffuser Membrane Tube Diffuser 4The rubber film of the tubular aerator adopts natural rubber adhesive and aging formula to extend the service life of the film



Nano Fine Bubble Tube Diffuser Membrane Tube Diffuser 5Uniform opening with a large number of holes, with each group having 6624 holes × 2 (ordinary disc type microporous aerator Φ 215 for 2000 holes).



Nano Fine Bubble Tube Diffuser Membrane Tube Diffuser 6 Adopting stainless steel connecting fasteners, the interface is not prone to air leakage and is easy to disassemble.



Nano Fine Bubble Tube Diffuser Membrane Tube Diffuser 5With a high oxygen utilization rate, uniform gas distribution, and long service life, the tubular microporous aerator offers stable and reliable performance while avoiding blockages and preventing water accumulation in the trachea.



Nano Fine Bubble Tube Diffuser Membrane Tube Diffuser 6Simple installation structure, non-buoyancy aeration pipe, and convenient design and use.







Nano Fine Bubble Tube Diffuser Membrane Tube Diffuser 9    Nano Fine Bubble Tube Diffuser Membrane Tube Diffuser 10



Nano Fine Bubble Tube Diffuser Membrane Tube Diffuser 0
FEATURES

Fine bubble tube diffuser is a non-clogging type that combines automatic cleaning and prevents the reverse flow of sewage. Due to the suspension of air supply by the blower, the membrane contracts and closes in a timely manner, and sewage never seeps back into the tubular aerator. When the blower is restarted, the membrane expands and releases bubbles, while also bouncing away the sludge adhering to the surface of the membrane. This maintenance-free feature is a good choice for activated sludge construction. Due to the fact that the diffusion adhesive of the microporous aerator is made of imported rubber, it has excellent physical and mechanical properties. The accessories and air pipes are composed of engineering plastics, so they are not afraid of corrosion and have possible performance, reducing the workload of operation and maintenance.

Nano Fine Bubble Tube Diffuser Membrane Tube Diffuser 0
PRINCIPLE

Fine bubble tube diffuser is a water treatment oxygen-filling device. Its working principle is that oxygen is transported by a blower through a pipeline and enters the microporous aerator through a pipeline. Then, microporous bubbles are blown out through the microporous membrane on the aerator, fully diffusing and mixing into the mixed liquid, allowing the oxygen in the bubbles to dissolve into the mixed liquid, providing dissolved oxygen required for microbial biochemical reactions, and ensuring sufficient mixing of sewage, Keep the activated sludge in a suspended state. By fully contacting the three phases of mud, water, and gas, it is ensured that activated sludge fully utilizes the dissolved oxygen in the water to decompose organic pollutants.





Nano Fine Bubble Tube Diffuser Membrane Tube Diffuser 13

Nano Fine Bubble Tube Diffuser Membrane Tube Diffuser 0
Unique System Strengths

Complete product line-----creating the system that fits your needs

DUBHE manufactures disc diffusers and tube diffusers, and we mount these products on a wide range of piping materials including PVC, CPVC, PP, and Stainless Steel.

We have the ability to attach diffusers to pipes using saddles, grommets, or pre-assembled PODS.

We can provide retrievable systems or fixed grids, and systems in dit form or mostly factory assembled.

Piping system integrity icker wall pipe and double anchors for fewer breakages.

Our piping has double rod support that stands as standard two anchors for each support location means twice the resistance to hydraulic and thermal loads. Most often supports fail due to temperature and water velocity.SSllocates two anchors where support is needed most, helping to increase product longevity.

Comprehensive design service and after-sales support

DUBHE provides full design services, including biological and mixing calculations, process simulations, and hydraulic studies. We maintain a full drafting department with 3D and animation capabilities and we can assist with specifications and CAD drawings. Our service and installation crew can hold your hand during the early stages of the project and our worldwide multilingual staff is dedicated to your complete satisfaction.

Nano Fine Bubble Tube Diffuser Membrane Tube Diffuser 0
CASE

Nano Fine Bubble Tube Diffuser Membrane Tube Diffuser 16  Nano Fine Bubble Tube Diffuser Membrane Tube Diffuser 17  Nano Fine Bubble Tube Diffuser Membrane Tube Diffuser 18  Nano Fine Bubble Tube Diffuser Membrane Tube Diffuser 19

Nano Fine Bubble Tube Diffuser Membrane Tube Diffuser 20

Q:Can I have a sample order?

A:No

Q: What's the delivery time?

A:About 30 days

Q: Do you have any MOQ limit?

A:Greater than 1 (not free shipping)

Q: Can you print our logo on the outer package?

A:Yes
