Gravity Thickener Wastewater Treatment Belt Thickener Filter Low Pressure

Gravity Thickener Wastewater Treatment Belt Thickener Filter Low Pressure

gravity thickener wastewater treatment

gravity thickener water treatment

thickener water treatment

Place of Origin:

CHINA

Brand Name:

DUBHE

Certification:

ISO

Model Number:

DHBT-1500

Contact Us

Request A Quote
Product Details
Product Name:
Belt Filter Type Thickeners
Dried Sludge(kg/hr):
180~585
Reference Weight(kgs):
1500
Filter Belt Width:
1500
Application:
Dewatering Municipal And Industrial Sludge
Color:
White Or Printed
Packaging:
Standard Export Packing
Installation:
Engineer Guide
Payment & Shipping Terms
Minimum Order Quantity
1Set
Delivery Time
5-8 Weeks
Payment Terms
L/C, T/T, Western Union
Product Description

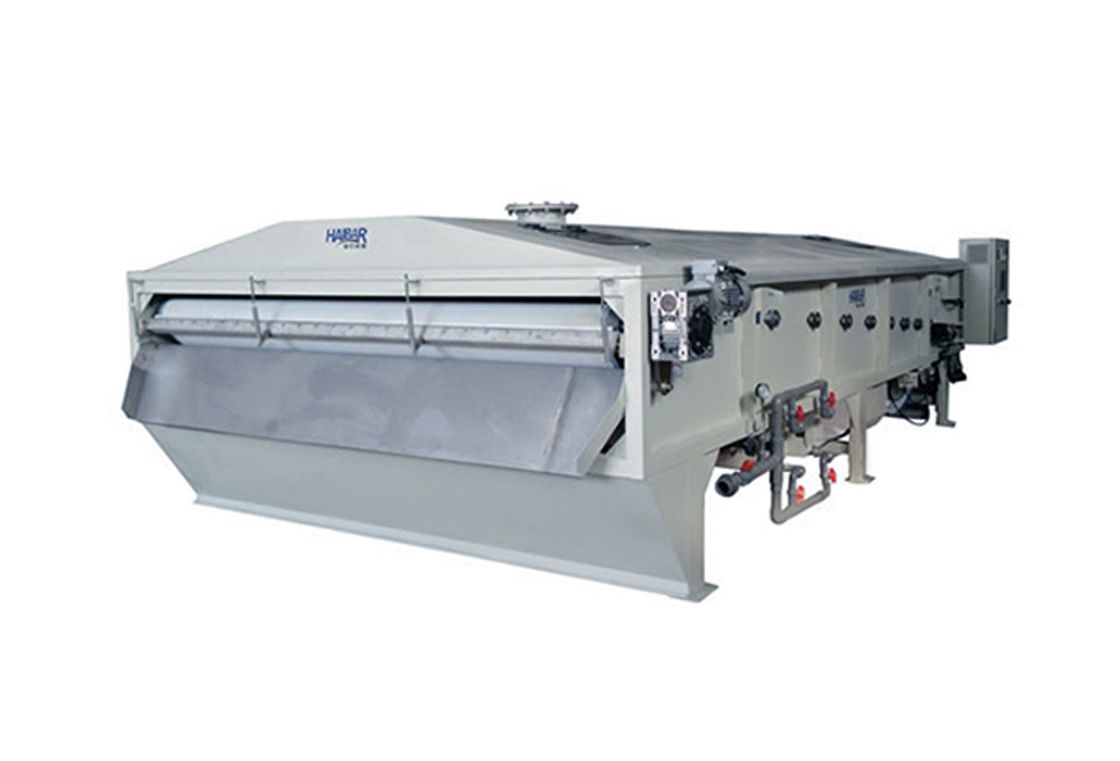

Gravity Belt Thickening Filter: Low-Pressure Process for Wastewater Treatment DHBT-1500

Gravity Thickener Wastewater Treatment Belt Thickener Filter Low Pressure 0How Gravity Belt Thickening Works:

Gravity Belt Thickening (GBT) is a process that increases the sludge solids concentration by allowing water to drain from the sludge under gravity through a permeable medium, which is a moving belt. Here's a step-by-step explanation of how GBT works:



Sludge Introduction: The sludge is introduced onto the permeable belt, typically at the inlet end of the gravity belt thickener. It can be fed onto the belt using various methods, such as pumps, gravity flow, or other mechanical means.

Belt Movement: The permeable belt, made of materials like polyester, moves continuously in a loop. It travels through several zones of the gravity belt thickener, each serving a specific purpose.

Drainage Zone: As the sludge sits on the belt, water or filtrate starts to drain through the belt's pores under the influence of gravity. The sludge solids gradually accumulate on the belt's surface, forming a layer. The drainage zone allows for the separation of water from the sludge.

Gravity Thickener Wastewater Treatment Belt Thickener Filter Low Pressure 1

Gravity Thickener Wastewater Treatment Belt Thickener Filter Low Pressure 0Peripheral Configuration:

Gravity Thickener Wastewater Treatment Belt Thickener Filter Low Pressure 3

Gravity Thickener Wastewater Treatment Belt Thickener Filter Low Pressure 0Application:

  • For the various Industry Waste Slurry pre-thickening Treatment.

  • For the solid and liquid separation of the industrial processing treatment of Paper &Pulp, Fiber, Chemical, Food, Plastic, Metallurgy, Mining, etc. Industries.

  • For the raw material processing filtering-recovering of the brewing, flavoring, stuffing, starch factory, and the various food-processing factory.

  • The filtering before tap-water intaking, the filtering-recovering of the rainwater.

    The solid and liquid separation of the fruit processing industry, and vegetable processing

    industry.

Gravity Thickener Wastewater Treatment Belt Thickener Filter Low Pressure 0Specification:

Gravity Thickener Wastewater Treatment Belt Thickener Filter Low Pressure 6

Gravity Thickener Wastewater Treatment Belt Thickener Filter Low Pressure 7

Gravity Thickener Wastewater Treatment Belt Thickener Filter Low Pressure 8
