Home > products > Bubble Air Diffuser >
Fine Bubble Disc Diffr SOTE % 22-59 High Hole Quantity 3500 with 2mm Membrane Thickness

Fine Bubble Disc Diffr SOTE % 22-59 High Hole Quantity 3500 with 2mm Membrane Thickness

Place of Origin:

China

Brand Name:

DUBHE

Certification:

ISO

Model Number:

DUDS

Contact Us

Request A Quote
Product Details
SOTE(%):
22-59
Shape:
Disc
Hole Quantity:
3500
Material:
EPDM
Air Consumption:
0.2-0.6m3/min
Membrane Thickness:
2mm
Payment & Shipping Terms
Product Description

Product Description:

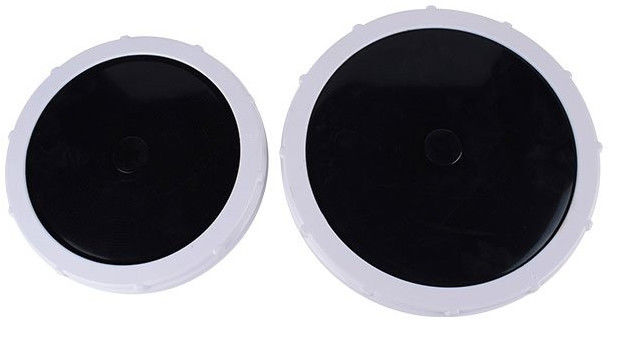

The Fine Bubble Disc Diffuser is a high-performance product that offers superior oxygen transfer efficiency. It features a unique design that provides a large surface area, allowing it to efficiently disperse oxygen into the water. The disc shape is constructed from EPDM material with a 2mm membrane thickness and 3500 individual holes, allowing for a SOTE (Standard Oxygen Transfer Efficiency) of 22-59%. This product is perfect for water treatment applications, providing optimal oxygen transfer performance with minimal effort.

Fine Bubble Disc Diffr SOTE % 22-59 High Hole Quantity 3500 with 2mm Membrane Thickness 0

Features:

  • Product Name: Fine Bubble Disc Diffuser
  • Air Consumption: 0.2-0.6m3/min
  • SOTE(%): 22-59
  • Hole quantity: 3500
  • Shape: Disc
  • Material: EPDM


Technical Parameters:

Parameter Value
Hole quantity 3500
Air Consumption 0.2-0.6m3/min
Material EPDM
Shape Disc
SOTE(%) 22-59
Membrane thickness 2mm


Applications:

DUBHE's Fine Bubble Disc Diffuser, DUDS, is a highly efficient oxygenation device used in wastewater treatment plants and aquaculture. Made with EPDM material, it has 3500 evenly distributed tiny air holes, and a SOTE (Standard Oxygen Transfer Efficiency) of 22-59%. This disc shape diffuser provides an air consumption of 0.2-0.6m3/min, which makes it very efficient and cost-effective for oxygenation purposes. DUDS is an ideal solution for a wide range of wastewater treatment and aquaculture applications. It can reduce energy consumption while achieving high oxygenation efficiency.

Fine Bubble Disc Diffr SOTE % 22-59 High Hole Quantity 3500 with 2mm Membrane Thickness 1

Support and Services:

Technical Support and Service for Fine Bubble Disc Diffuser

We provide technical support and service for Fine Bubble Disc Diffuser, including:

  • Installation and startup services
  • Operational and maintenance training
  • Field and onsite service repair
  • Spare parts and consumables
  • Consultation and advisory services
  • Design and customization services


FAQ:

Q1: What is Fine Bubble Disc Diffuser?
A1: Fine Bubble Disc Diffuser is a kind of aeration system developed by DUBHE, with the model number DUDS. It is designed to aerate wastewater and provides oxygen to the water for biochemical treatment.
Q2: Where is the Fine Bubble Disc Diffuser manufactured?
A2: The Fine Bubble Disc Diffuser is manufactured in China by DUBHE.
Q3: What are the advantages of using Fine Bubble Disc Diffuser?
A3: The Fine Bubble Disc Diffuser has many advantages, such as high oxygen transfer efficiency, low energy consumption, low noise, easy installation and maintenance, etc.
Q4: What is the application of the Fine Bubble Disc Diffuser?
A4: The Fine Bubble Disc Diffuser is mainly used in the wastewater treatment process, including aeration, oxygenation, biological treatment, etc.
Q5: What is the material of the Fine Bubble Disc Diffuser?
A5: The Fine Bubble Disc Diffuser is made of high-quality engineering plastic, polypropylene and stainless steel.
