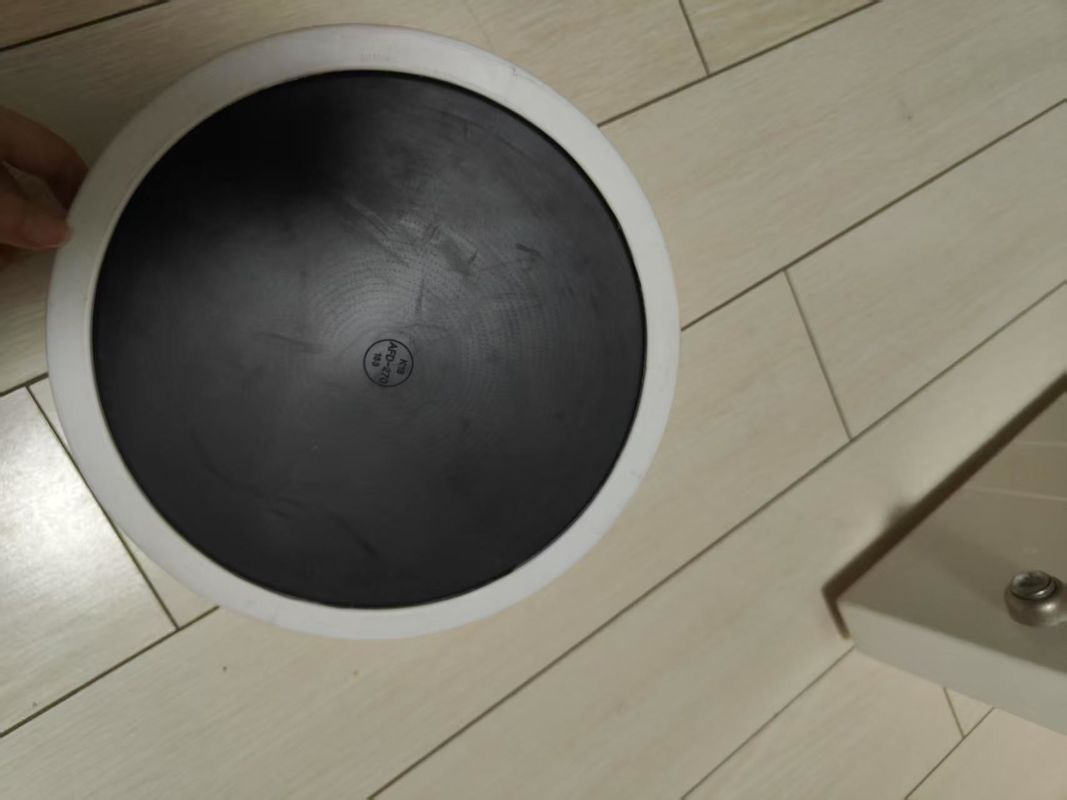

Fine Bubble Disc Diffuser for High Oxygen Transfer and Aeration Performance in Wastewater Treatment

High Oxygen Transfer disc diffuser

Aeration Performance disc diffuser

Place of Origin:

South Korea

Brand Name:

SSI

Certification:

ISO

Model Number:

DUDS

Document:

ECD270-2 (9inch)-Techincal ...22.pdf

Request A Quote

Fine Bubble Disc Diffuser for High Oxygen Transfer and Aeration Performance in Wastewater Treatment

Product Details

Membrane Thickness:

2mm

Material:

EPDM

Hole Quantity:

3500

SOTE(%):

22-59

Air Consumption:

0.2-0.6m3/min

Shape:

Disc

Service Area:

0.5-1.0㎡/pcs

Bolt Length:

9inch

Air Flow Rate:

0.5-2.0 Cubic Feet Per Minute

Includes:

Two (2) Bolts

Model:

FBD-9

Bubble Size:

1-2 Mm

Usage:

Water Treatment

Plastics Tray:

ABS

Feature:

High Oxygen Transfer Efficiency

Connector:

3/4 NPT

Sote:

35-59%

Mounting Type:

Female Threaded Connection

Oxygen Transfer Rate:

Over 38%

Material Of Membrane:

EPDM(silicon Optional)

Membrane Material:

EPDM

Sample:

Free Sample Of Bubble Diffuser

Type:

Disc

Service Life:

>5 Years

Weight:

0.5-1.2 Kg

Diameter:

200/270/340mm

Support Tube Diameter:

25mm

Roduct Name:

Saddle For Diffusers

Hs Code:

8421999090

Bubble Type:

Micro

Payment & Shipping Terms

Minimum Order Quantity

Fine Bubble Disc Diffuser for Aeration System in Municipal and Industrial Water Purification Operation

Get Best Price

Fine Bubble Disc Diffuser for Aeration System in Municipal and Industrial Water Purification Operation

Get Best Price

Fine Bubble Disc Diffuser for High Oxygen Transfer and Aeration Performance in Wastewater Treatment

Get Best Price

Fine Bubble Disc Diffuser for High Oxygen Transfer and Aeration Performance in Wastewater Treatment

Get Best Price

86-021-80510158

shdubhe@gmail.com

Contact Now

Product Description

SSI ECD215 Disc Diffuser System – Advanced Aeration for Biological Wastewater Treatment

Name: Fine Bubble Disc Diffuser for High Oxygen Transfer and Aeration Performance in Wastewater Treatment
Brand: SHANGHAI DUBHE ENVIRONMENTAL PROTECTION&TECHNOLOGY CO.,LTD
SKU: DUDS
Availability: InStock

Reinforced Membrane Locking System
The diffuser cover features a downward-protruding rim with multiple locking bars positioned beneath the extension and within the support coil groove. Utilizing a thickened 10mm diameter membrane cord, the assembly process involves lifting the cover to securely fasten the membrane into the support disc's groove. The integrated ribs interlock with the internal rubber membrane, creating a dual sealing mechanism that completely prevents membrane detachment.

Enhanced Structural Design

Thread root reinforcement prevents fracturing under cyclic loading

Optimized airflow channel geometry increases gas passage area by 30%

Precision chamfering at all critical angles reduces operational pressure loss by 15-20%

Anti-Creep Retention Mechanism
Six L-shaped clamping bars arranged radially around the diffuser cover:
• Counteract long-term plastic deformation from membrane expansion pressure
• Maintain constant sealing force throughout operational cycles
• Eliminate membrane slippage even under continuous dynamic loading

Key Features & Benefits

"Precision-engineered for extreme durability:
• Reinforced piping system with 38% increased wall thickness + dual support stands resists hydraulic/thermal fatigue
• Proprietary PTFE membranes maintain stable DWP (+/- 5%) while reducing energy consumption by up to 15% vs standard membranes"
