Product Description:
The DAF-TD dissolved air flotation system is specifically designed for textile dyeing and printing wastewater treatment. Equipped with an integrated coagulation-flocculation dosing system, it generates micro-bubbles that capture and float dye particles, pigments, sizing agents, and suspended fibers to the surface. Achieving color removal efficiency above 90%, this DAF system effectively treats reactive dyes, disperse dyes, vat dyes, and pigment wastewater. It is the preferred solution for textile manufacturers across Brazil, Colombia, Peru, and Mexico seeking environmental discharge compliance.
Features:

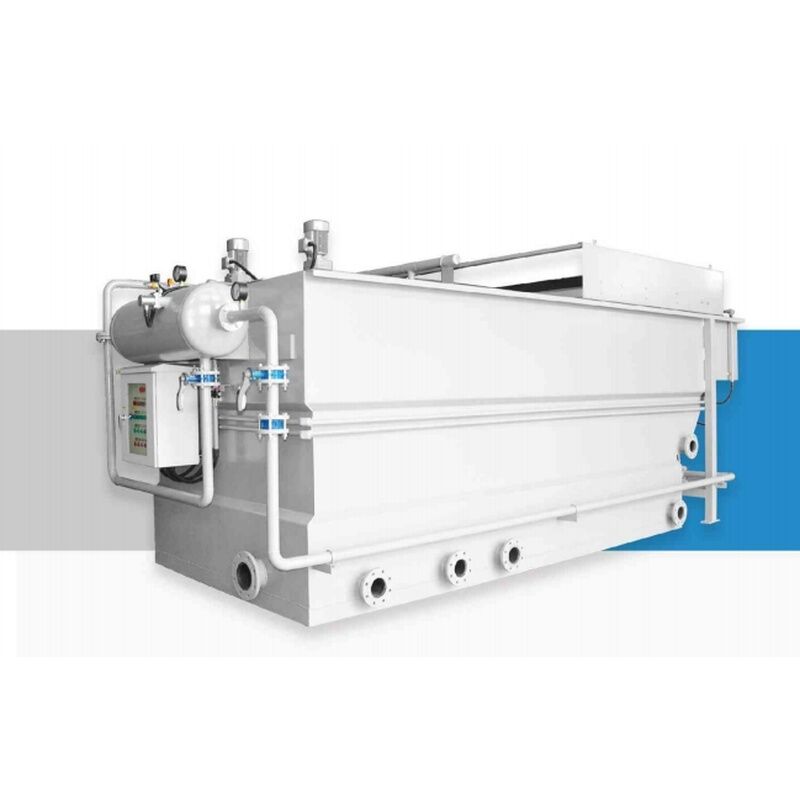

- Product Name: Textile Dyeing Dissolved Air Flotation DAF System
- Model: DAF-TD
- Application: Textile Dyeing and Printing Wastewater Treatment
- Material: Stainless Steel 304
- Treatment Capacity: 2-150 m3/h
- Color Removal Efficiency: Above 90%
- Chemical Dosing System: Integrated Coagulation-Flocculation
- Automation: Fully Automatic PLC with pH Control
DAF / IDAF Technical Specifications:
| Model |
Capacity |
Power (kW) |
Dimension (m) |
Nozzle list (DN) |
DAF/
IDAF |
m³/h |
Recycle
pump |
Air
compressor |
Skimmer |
IDAF
Fast mixer |
IDAF
Slow mixer |
DAF
L₁/L₂ |
IDAF
L₁/L₂ |
W₁/W₂ |
H₁/H₂ |
Inlet
(a) |
Outlet
(b) |
Sludge
outlet (c) |
Vent
nozzle (d) |
| 003 |
~3 |
0.75 |
0.55 |
0.12 |
0.37 |
0.25 |
3.6/2.8 |
4.1/3.2 |
2.4/1.2 |
2.2/1.7 |
50 |
50 |
80 |
80 |
| 005 |
~5 |
1.1 |
0.55 |
0.12 |
0.37 |
0.25 |
3.8/3.0 |
4.4/3.6 |
2.4/1.2 |
2.2/1.7 |
80 |
80 |
80 |
80 |
| 010 |
~10 |
4 |
0.55 |
0.12 |
0.37 |
0.25 |
4.3/3.3 |
5.0/4.0 |
2.9/1.7 |
2.4/1.9 |
100 |
100 |
100 |
100 |
| 020 |
~20 |
4 |
0.75 |
0.12 |
0.37 |
0.25 |
5.7/4.8 |
6.2/5.2 |
3.2/2.2 |
2.4/1.9 |
150 |
100 |
100 |
100 |
| 030 |
~30 |
5.5 |
0.75 |
0.12 |
0.37 |
0.25 |
6.5/5.5 |
7.7/6.7 |
3.2/2.2 |
2.4/1.9 |
150 |
150 |
150 |
100 |
| 040 |
~40 |
5.5 |
0.75 |
0.12 |
0.75 |
0.37 |
6.5/5.5 |
7.7/6.7 |
3.6/2.7 |
2.4/1.9 |
200 |
200 |
150 |
100 |
| 050 |
~50 |
7.5 |
0.75 |
0.12 |
0.75 |
0.37 |
7.3/6.3 |
8.8/7.8 |
3.6/2.7 |
2.4/1.9 |
200 |
200 |
150 |
100 |
| 080 |
~80 |
11 |
1.5 |
0.12 |
1.5 |
0.37 |
8.9/7.6 |
10.6/9.2 |
4.4/3.4 |
2.7/2.3 |
250 |
200 |
150 |
100 |
| 100 |
~100 |
11 |
1.5 |
0.12 |
1.5 |
0.37 |
10.8/9.4 |
13.2/11.8 |
4.4/3.4 |
2.7/2.3 |
300 |
250 |
150 |
100 |
| 120 |
~120 |
11 |
2.2 |
0.12 |
1.5 |
0.37 |
11.7/10.4 |
14.2/12.8 |
4.4/3.4 |
2.7/2.3 |
300 |
250 |
150 |
100 |
| 150 |
~150 |
15 |
3 |
0.12 |
1.5 |
0.37 |
13.5/12.0 |
15.8/14.4 |
4.5/3.8 |
2.7/2.3 |
300 |
300 |
150 |
100 |
Process Flow Diagram:
Applications:
This DAF dissolved air flotation system is engineered for textile dyeing and finishing wastewater, fabric printing effluent, denim washing and stone-washing wastewater, carpet and yarn dyeing process water, laundry and garment wash industrial discharge, and synthetic fiber production wastewater. Serving major textile hubs across Latin America including the Santa Catarina textile cluster in Brazil, Medellin textile manufacturers in Colombia, Gamarra textile district in Peru, and Puebla textile plants in Mexico.
Support and Services:
- Remote installation guidance and on-site commissioning for Latin America
- Chemical dosing optimization and jar testing support
- Preventive maintenance programs and chemical supply chain
- Operator training with bilingual documentation (English and Spanish)
- System upgrades and color removal performance audits
Packing and Shipping:
Product Packaging:
- Export-grade wooden case with moisture-proof wrapping
- Reinforced steel frame for ocean freight to Latin America
- Includes operation manual, dosing guide, and ISO certificates
Shipping:
- Sea freight to major Latin American ports: Santos, Buenaventura, Callao, Manzanillo
- Shipping cost based on destination port and order volume
- Tracking number provided upon dispatch
FAQ:
Q: What brand is this DAF system?
A: DUBHE.
Q: What is the model?
A: DAF-TD (Textile & Dyeing).
Q: Can it remove reactive dyes?
A: Yes, with integrated coagulation-flocculation dosing, color removal exceeds 90% for reactive, disperse, and vat dyes.
Q: Do you deliver to Brazil and Colombia?
A: Yes, we ship regularly to all major Latin American textile manufacturing regions.
Q: What is the MOQ?
A: 1 set.
