Product Description:

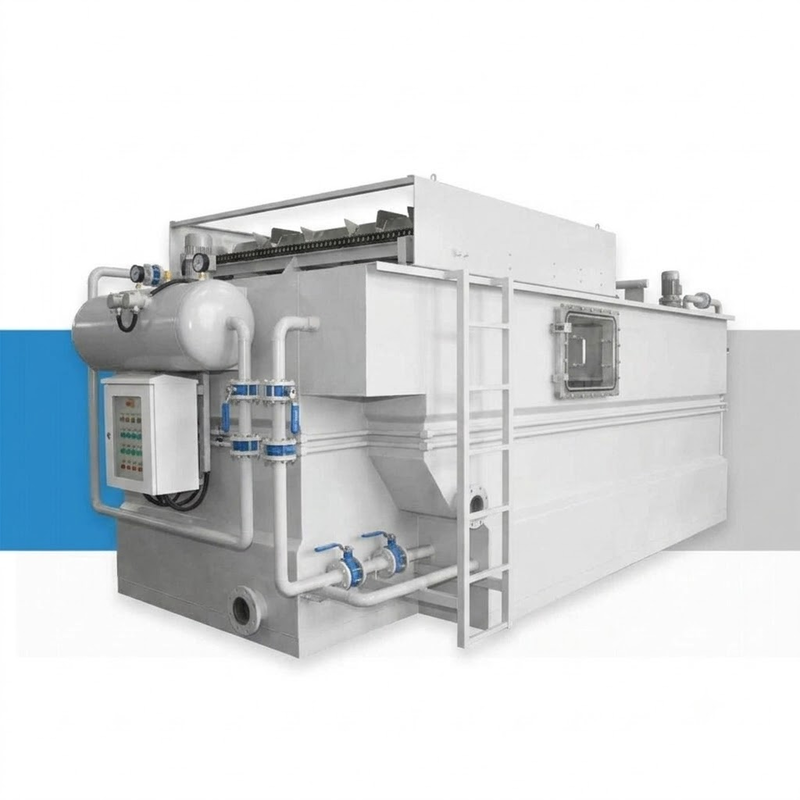

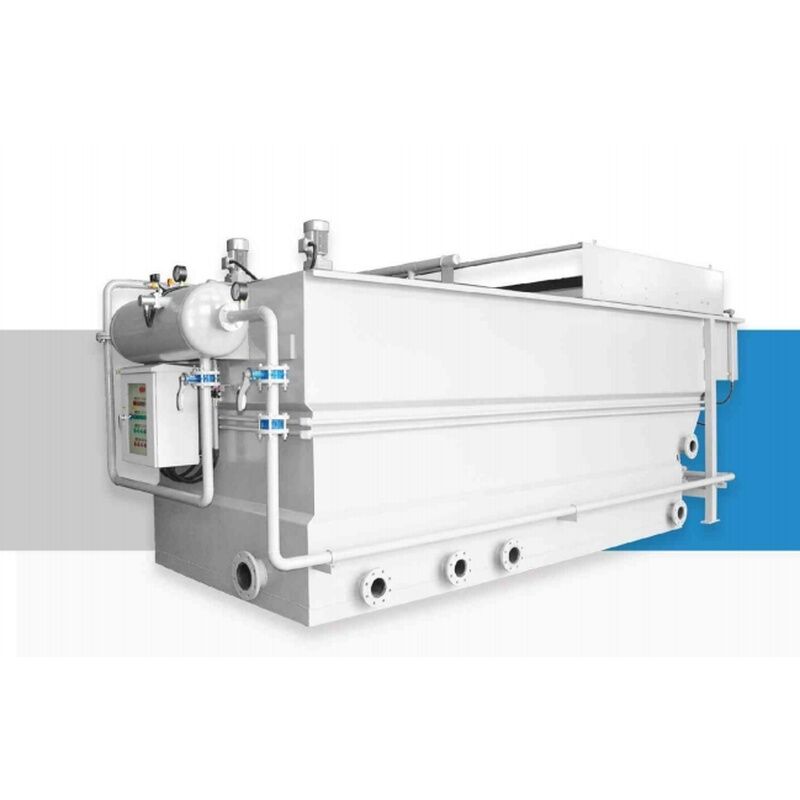

The DAF-PT dissolved air flotation system is purpose-engineered for petroleum refinery and oily wastewater treatment. Utilizing advanced micro-bubble dissolved air technology, it efficiently separates emulsified oil, grease, and suspended solids from refinery process water, produced water, and tank bottom sludge. With oil removal efficiency above 95% and a treatment capacity of 2-150 m3/h, this DAF system is the trusted solution for Latin American petroleum refineries in Venezuela, Brazil, Mexico, and Colombia seeking reliable API/DAF compliance for upstream and downstream operations.
Features:
- Product Name: Petroleum Refinery Dissolved Air Flotation DAF System
- Model: DAF-PT
- Application: Petroleum Refinery and Oily Wastewater Treatment
- Material: Stainless Steel 304
- Treatment Capacity: 2-150 m3/h
- Oil Removal Efficiency: Above 95%
- Hydraulic Load: 4-6 m3/(m2.h)
- Automation: Semi-Automatic PLC Control
DAF / IDAF Technical Specifications:
| Model |
Capacity |
Power (kW) |
Dimension (m) |
Nozzle list (DN) |
DAF/
IDAF |
m³/h |
Recycle
pump |
Air
compressor |
Skimmer |
IDAF
Fast mixer |
IDAF
Slow mixer |
DAF
L₁/L₂ |
IDAF
L₁/L₂ |
W₁/W₂ |
H₁/H₂ |
Inlet
(a) |
Outlet
(b) |
Sludge
outlet (c) |
Vent
nozzle (d) |
| 003 |
~3 |
0.75 |
0.55 |
0.12 |
0.37 |
0.25 |
3.6/2.8 |
4.1/3.2 |
2.4/1.2 |
2.2/1.7 |
50 |
50 |
80 |
80 |
| 005 |
~5 |
1.1 |
0.55 |
0.12 |
0.37 |
0.25 |
3.8/3.0 |
4.4/3.6 |
2.4/1.2 |
2.2/1.7 |
80 |
80 |
80 |
80 |
| 010 |
~10 |
4 |
0.55 |
0.12 |
0.37 |
0.25 |
4.3/3.3 |
5.0/4.0 |
2.9/1.7 |
2.4/1.9 |
100 |
100 |
100 |
100 |
| 020 |
~20 |
4 |
0.75 |
0.12 |
0.37 |
0.25 |
5.7/4.8 |
6.2/5.2 |
3.2/2.2 |
2.4/1.9 |
150 |
100 |
100 |
100 |
| 030 |
~30 |
5.5 |
0.75 |
0.12 |
0.37 |
0.25 |
6.5/5.5 |
7.7/6.7 |
3.2/2.2 |
2.4/1.9 |
150 |
150 |
150 |
100 |
| 040 |
~40 |
5.5 |
0.75 |
0.12 |
0.75 |
0.37 |
6.5/5.5 |
7.7/6.7 |
3.6/2.7 |
2.4/1.9 |
200 |
200 |
150 |
100 |
| 050 |
~50 |
7.5 |
0.75 |
0.12 |
0.75 |
0.37 |
7.3/6.3 |
8.8/7.8 |
3.6/2.7 |
2.4/1.9 |
200 |
200 |
150 |
100 |
| 080 |
~80 |
11 |
1.5 |
0.12 |
1.5 |
0.37 |
8.9/7.6 |
10.6/9.2 |
4.4/3.4 |
2.7/2.3 |
250 |
200 |
150 |
100 |
| 100 |
~100 |
11 |
1.5 |
0.12 |
1.5 |
0.37 |
10.8/9.4 |
13.2/11.8 |
4.4/3.4 |
2.7/2.3 |
300 |
250 |
150 |
100 |
| 120 |
~120 |
11 |
2.2 |
0.12 |
1.5 |
0.37 |
11.7/10.4 |
14.2/12.8 |
4.4/3.4 |
2.7/2.3 |
300 |
250 |
150 |
100 |
| 150 |
~150 |
15 |
3 |
0.12 |
1.5 |
0.37 |
13.5/12.0 |
15.8/14.4 |
4.5/3.8 |
2.7/2.3 |
300 |
300 |
150 |
100 |
Process Flow Diagram:
Applications:
This DAF dissolved air flotation system is ideally suited for petroleum refinery wastewater, crude oil desalting effluent, tank farm oily water separation, petrochemical plant process water, lubricant and used oil recycling wastewater, bilge and ballast water treatment, and offshore platform produced water. Trusted by oil and gas facilities across Latin America including PDVSA operations in Venezuela, Petrobras refineries in Brazil, PEMEX facilities in Mexico, and Ecopetrol plants in Colombia.
Support and Services:
- Remote installation guidance and on-site commissioning support for Latin America
- Troubleshooting and diagnosis of system operational issues
- Regular maintenance program and spare parts supply
- Operator training and technical documentation in English and Spanish
- Equipment upgrades and performance optimization services
Packing and Shipping:
Product Packaging:
- Export-grade wooden case packaging with moisture-proof film wrapping
- Reinforced steel frame structure for long-distance ocean freight to Latin America
- Complete with installation manual, operation guide, and certification documents
Shipping:
- Sea freight to major Latin American ports: Maracaibo, Rio de Janeiro, Veracruz, Cartagena
- Shipping cost calculated based on destination port and order volume
- Tracking number provided upon shipment dispatch
FAQ:
Q: What is the brand name?
A: DUBHE.
Q: What is the model?
A: DAF-PT (Petroleum).
Q: What is the oil removal efficiency?
A: Above 95% for emulsified and free oil.
Q: Do you ship to Latin America?
A: Yes, we regularly ship to Venezuela, Brazil, Mexico, Colombia and across LATAM.
Q: What is the MOQ?
A: 1 set.
