Product Description:

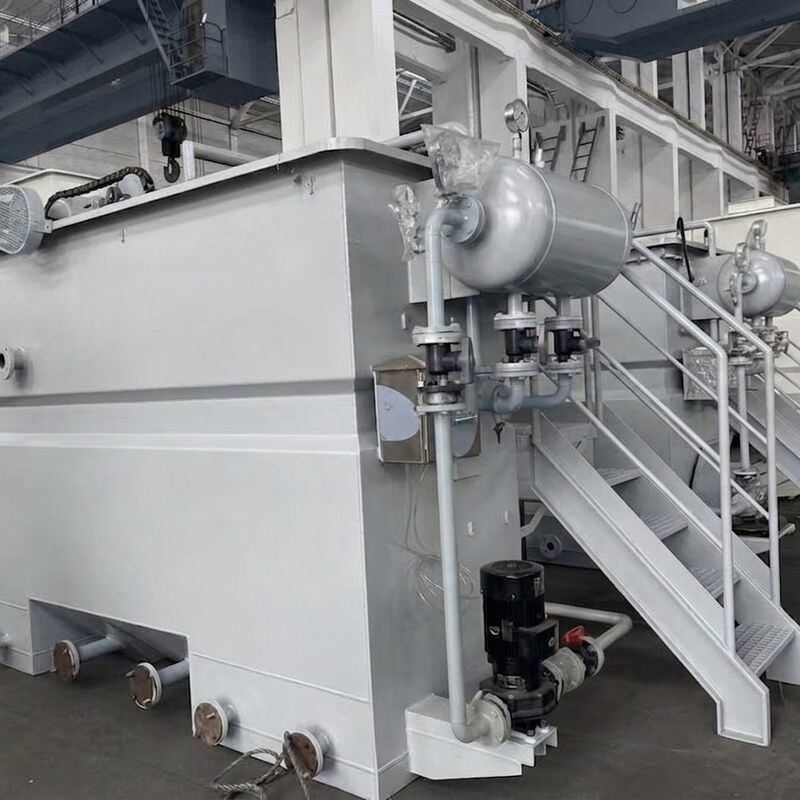

The DAF-BW dissolved air flotation system is specifically designed for brewery and winery wastewater treatment. Brewing and winemaking processes generate high-strength organic wastewater containing yeast cells, trub (hop and protein residues), spent grains, grape pomace, and cleaning-in-place (CIP) chemicals. This DAF system uses advanced micro-bubble dissolved air technology to efficiently float and separate yeast, suspended solids, and colloidal organic matter from process effluent. With 2-150 m3/h capacity and wide pH tolerance for CIP chemical variations, it is the trusted treatment solution for Latin American breweries in Brazil, Mexico, and Argentina, as well as wineries in Chile and Argentina's Mendoza and Maipo Valley regions.
Features:

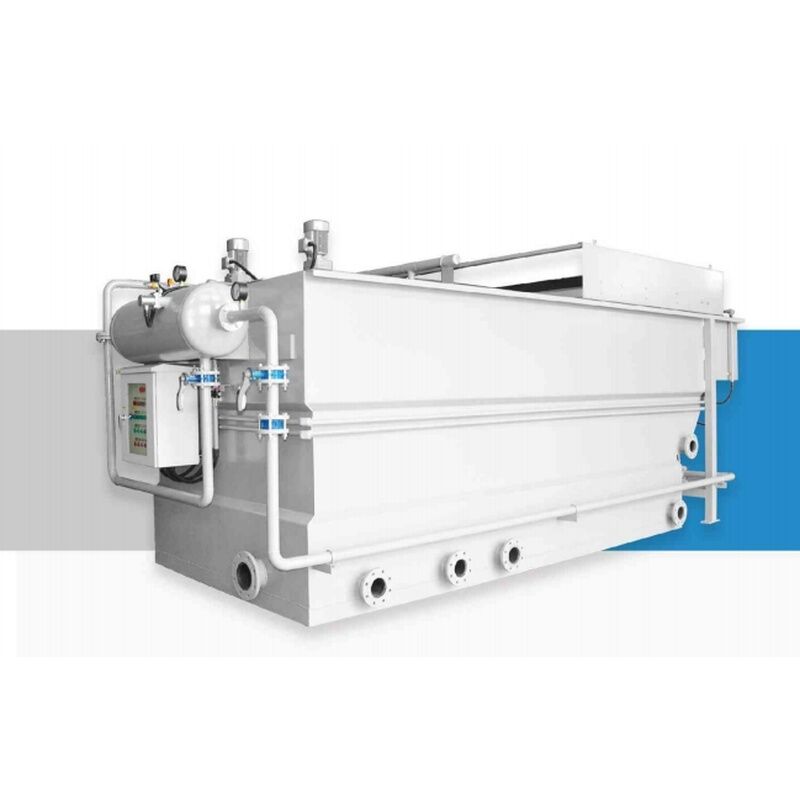

- Product Name: Brewery Winery Dissolved Air Flotation DAF System
- Model: DAF-BW
- Application: Brewery and Winery Wastewater Treatment
- Material: Stainless Steel 304
- Treatment Capacity: 2-150 m3/h
- Yeast Removal: Efficient Yeast and Trub Separation
- pH Tolerance: Wide Range for CIP Chemicals
- Automation: Fully Automatic PLC Control
DAF / IDAF Technical Specifications:
| Model |
Capacity |
Power (kW) |
Dimension (m) |
Nozzle list (DN) |
Recycle
pump |
Air
compressor |
Skimmer |
IDAF2
Fast mixer |
IDAF2
Slow mixer |
DAF2
L₁/L₂ |
IDAF2
L₁/L₂ |
W₁/W₂ |
H₁/H₂ |
Inlet
(a) |
Outlet
(b) |
Sludge
outlet (c) |
Vent
nozzle (d) |
| 010 |
~10 |
4.0 |
0.6 |
0.12 |
0.4 |
0.3 |
4.3/3.3 |
5.3/4.0 |
2.9/1.7 |
2.7/2.2 |
100 |
100 |
100 |
100 |
| 020 |
~20 |
4.0 |
0.8 |
0.12 |
0.4 |
0.3 |
6.1/4.8 |
6.5/5.2 |
3.2/2.2 |
2.7/2.2 |
150 |
100 |
100 |
100 |
| 030 |
~30 |
5.5 |
0.8 |
0.12 |
0.4 |
0.3 |
6.8/5.5 |
8.0/6.7 |
3.2/2.2 |
2.7/2.2 |
150 |
150 |
150 |
100 |
| 040 |
~40 |
5.5 |
0.8 |
0.12 |
0.8 |
0.4 |
6.8/5.5 |
8.0/6.7 |
3.6/2.7 |
2.6/2.2 |
200 |
200 |
150 |
100 |
| 050 |
~50 |
7.5 |
0.8 |
0.12 |
0.8 |
0.4 |
7.6/6.3 |
9.1/7.8 |
3.6/2.7 |
2.6/2.2 |
200 |
200 |
150 |
100 |
| 080 |
~80 |
11.0 |
1.5 |
0.12 |
1.5 |
0.4 |
9.2/7.6 |
10.8/9.2 |
4.4/3.4 |
3.0/2.6 |
250 |
200 |
150 |
100 |
| 100 |
~100 |
11.0 |
1.5 |
0.12 |
1.5 |
0.4 |
11.0/9.4 |
13.4/11.8 |
4.4/3.4 |
3.0/2.6 |
300 |
250 |
150 |
100 |
| 120 |
~120 |
11.0 |
2.2 |
0.12 |
1.5 |
0.4 |
12.0/10.4 |
14.4/12.8 |
4.4/3.4 |
3.0/2.6 |
300 |
250 |
150 |
100 |
| 150 |
~150 |
15.0 |
3.0 |
0.12 |
1.5 |
0.4 |
13.5/12.0 |
15.8/14.4 |
4.5/3.8 |
3.0/2.6 |
300 |
300 |
150 |
100 |
| 120 |
~120 |
11 |
2.2 |
0.12 |
1.5 |
0.37 |
11.7/10.4 |
14.2/12.8 |
4.4/3.4 |
2.7/2.3 |
300 |
250 |
150 |
100 |
| 150 |
~150 |
15 |
3 |
0.12 |
1.5 |
0.37 |
13.5/12.0 |
15.8/14.4 |
4.5/3.8 |
2.7/2.3 |
300 |
300 |
150 |
100 |
Process Flow Diagram:
Applications:
This DAF dissolved air flotation system is engineered for brewery mash tun and lauter tun wastewater, beer fermentation and conditioning tank CIP wash water, yeast propagation and cropping effluent, bottling and kegging line discharge, winery crush pad and press wastewater, wine tank and barrel cleaning effluent, and vintage season peak load treatment. Serving major Latin American beverage producers including Ambev and Heineken breweries in Brazil, Grupo Modelo facilities in Mexico, Quilmes breweries in Argentina, and Concha y Toro and Catena Zapata wineries in Chile and Argentina for sustainable craft and industrial beverage production.
Support and Services:
- Remote installation guidance and on-site commissioning for Latin America
- Troubleshooting and diagnosis of system operational issues
- Regular maintenance program and spare parts supply
- Operator training with bilingual documentation (English and Spanish)
- Equipment upgrades and performance optimization services
Packing and Shipping:
Product Packaging:
- Export-grade wooden case packaging with moisture-proof film wrapping
- Reinforced steel frame structure for long-distance ocean freight to Latin America
- Complete with installation manual, operation guide, and certification documents
Shipping:
- Sea freight to major Latin American ports: Santos, Buenaventura, Valparaiso, Veracruz
- Shipping cost calculated based on destination port and order volume
- Tracking number provided upon shipment dispatch
FAQ:
Q: Brand?
A: DUBHE.
Q: Model?
A: DAF-BW (Brewery & Winery).
Q: Can it handle CIP chemicals?
A: Yes, wide pH tolerance handles acidic and caustic CIP cleaning chemical variations.
Q: Do you ship to Argentina and Chile?
A: Yes, regular deliveries to Latin American breweries and wineries via major ports.
Q: MOQ?
A: 1 set.
