Product Description:

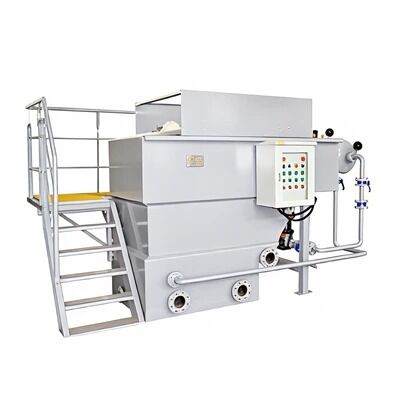

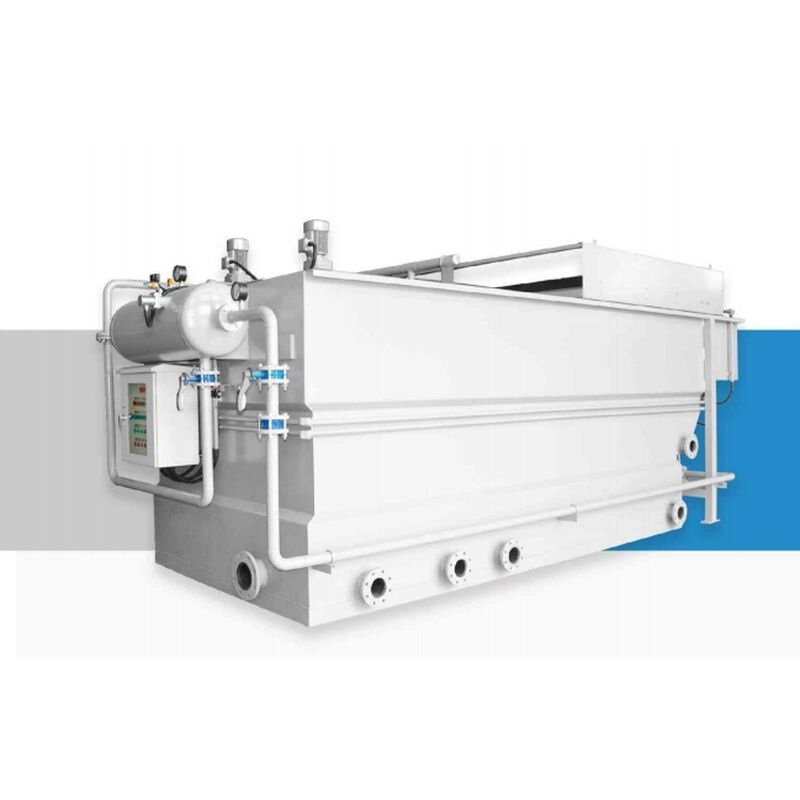

The DAF-LF dissolved air flotation system is purpose-built for landfill leachate pre-treatment, one of the most challenging wastewater streams in municipal solid waste management. Landfill leachate contains extremely high concentrations of COD, ammonia, heavy metals, and recalcitrant organic compounds. This DAF system uses 316L stainless steel construction for aggressive leachate resistance and pressurized dissolved air micro-bubble technology to float and remove suspended solids, oils, and colloidal organic matter before biological or membrane treatment stages. With 2-150 m3/h capacity, it is the essential pre-treatment solution for municipal landfills in the Middle East (Saudi Arabia, UAE, Qatar) and Latin America (Brazil, Mexico, Colombia) where rapid urbanization demands modern leachate treatment infrastructure.
Features:
- Product Name: Landfill Leachate Dissolved Air Flotation DAF System
- Model: DAF-LF
- Application: Landfill Leachate and Municipal Solid Waste Wastewater
- Material: Stainless Steel 316L
- Treatment Capacity: 2-150 m3/h
- COD Removal: Effective Pre-Treatment for Biological Process
- Corrosion Resistance: 316L for Aggressive Leachate
- Automation: Fully Automatic PLC Control
DAF / IDAF Technical Specifications:
| Model |
Capacity |
Power (kW) |
Dimension (m) |
Nozzle list (DN) |
Recycle
pump |
Air
compressor |
Skimmer |
IDAF2
Fast mixer |
IDAF2
Slow mixer |
DAF2
L₁/L₂ |
IDAF2
L₁/L₂ |
W₁/W₂ |
H₁/H₂ |
Inlet
(a) |
Outlet
(b) |
Sludge
outlet (c) |
Vent
nozzle (d) |
| 010 |
~10 |
4.0 |
0.6 |
0.12 |
0.4 |
0.3 |
4.3/3.3 |
5.3/4.0 |
2.9/1.7 |
2.7/2.2 |
100 |
100 |
100 |
100 |
| 020 |
~20 |
4.0 |
0.8 |
0.12 |
0.4 |
0.3 |
6.1/4.8 |
6.5/5.2 |
3.2/2.2 |
2.7/2.2 |
150 |
100 |
100 |
100 |
| 030 |
~30 |
5.5 |
0.8 |
0.12 |
0.4 |
0.3 |
6.8/5.5 |
8.0/6.7 |
3.2/2.2 |
2.7/2.2 |
150 |
150 |
150 |
100 |
| 040 |
~40 |
5.5 |
0.8 |
0.12 |
0.8 |
0.4 |
6.8/5.5 |
8.0/6.7 |
3.6/2.7 |
2.6/2.2 |
200 |
200 |
150 |
100 |
| 050 |
~50 |
7.5 |
0.8 |
0.12 |
0.8 |
0.4 |
7.6/6.3 |
9.1/7.8 |
3.6/2.7 |
2.6/2.2 |
200 |
200 |
150 |
100 |
| 080 |
~80 |
11.0 |
1.5 |
0.12 |
1.5 |
0.4 |
9.2/7.6 |
10.8/9.2 |
4.4/3.4 |
3.0/2.6 |
250 |
200 |
150 |
100 |
| 100 |
~100 |
11.0 |
1.5 |
0.12 |
1.5 |
0.4 |
11.0/9.4 |
13.4/11.8 |
4.4/3.4 |
3.0/2.6 |
300 |
250 |
150 |
100 |
| 120 |
~120 |
11.0 |
2.2 |
0.12 |
1.5 |
0.4 |
12.0/10.4 |
14.4/12.8 |
4.4/3.4 |
3.0/2.6 |
300 |
250 |
150 |
100 |
| 150 |
~150 |
15.0 |
3.0 |
0.12 |
1.5 |
0.4 |
13.5/12.0 |
15.8/14.4 |
4.5/3.8 |
3.0/2.6 |
300 |
300 |
150 |
100 |
Process Flow Diagram:
Applications:
This DAF dissolved air flotation system is engineered for municipal solid waste (MSW) landfill leachate pre-treatment, hazardous waste landfill leachate, waste transfer station wastewater, composting facility leachate, landfill gas condensate treatment, and old landfill leachate remediation. Trusted by municipal waste authorities and environmental contractors in the Middle East including Saudi Arabia (MWAN), UAE (Tadweer, Beeah), Qatar (MME), and Latin American cities including Sao Paulo and Rio de Janeiro (Brazil), Mexico City (Mexico), and Bogota (Colombia) for landfill leachate environmental compliance and groundwater protection.
Support and Services:
- Remote installation guidance and on-site commissioning for Latin America and Middle East
- Troubleshooting and diagnosis of system operational issues
- Regular maintenance program and spare parts supply
- Operator training with multilingual documentation (English, Spanish, Arabic)
- Equipment upgrades and performance optimization services
Packing and Shipping:
Product Packaging:
- Export-grade wooden case packaging with moisture-proof film wrapping
- Reinforced steel frame structure for long-distance ocean freight
- Complete with installation manual, operation guide, and certification documents
Shipping:
- Sea freight to major Latin American ports: Santos, Buenaventura, Callao and Middle East ports: Jebel Ali, Dammam, Jeddah
- Shipping cost calculated based on destination port and order volume
- Tracking number provided upon shipment dispatch
FAQ:
Q: Brand?
A: DUBHE.
Q: Model?
A: DAF-LF (Landfill).
Q: Is 316L necessary for leachate?
A: Yes, 316L stainless steel resists the aggressive, corrosive nature of landfill leachate with high chloride and heavy metal content.
Q: Do you ship to Middle East and Brazil?
A: Yes, regular deliveries to GCC and Latin American municipal waste management projects.
Q: MOQ?
A: 1 set.
