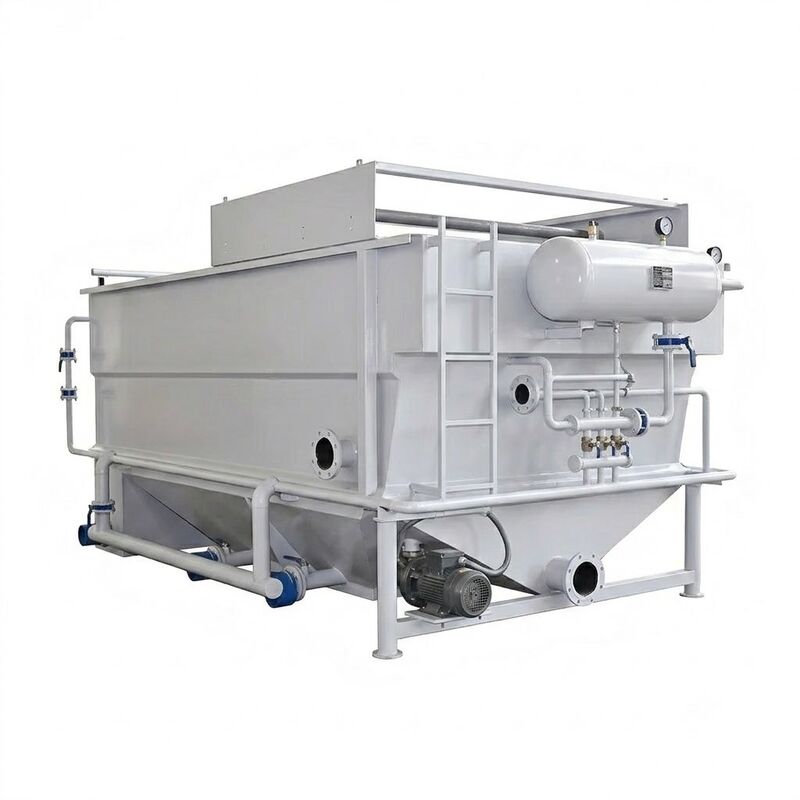

DAF Dissolved Air Flotation Clarifier System, Marine 316L 2-150 m3/h, for South America Seawater RO Feed Water Treatment

Product Description:

The DAF-DS-SA dissolved air flotation clarifier is purpose-engineered for South America seawater RO feed water treatment. In coastal desalination plants across Chile, Peru, Argentina and Colombia, raw seawater carries high loads of algae, suspended solids, and organic matter that rapidly foul RO membranes. This DAF system uses 316L marine-grade stainless steel and pressurized dissolved air micro-bubble technology to efficiently remove algae blooms including red tide, turbidity, and colloidal particles. With 2-150 m3/h capacity, it extends RO membrane life and reduces cleaning frequency in South American desalination operations.

Features:

• Product Name: DAF Dissolved Air Flotation Clarifier for South America Desalination
• Model: DAF-DS-SA (South America)
• Application: Seawater RO Feed Water Treatment and Clarification
• Material: Stainless Steel 316L Marine Grade
• Treatment Capacity: 2-150 m3/h
• Algae Removal: Red Tide and Algal Bloom Capable
• Automation: Fully Automatic PLC Control



   DAF / IDAF Technical Specifications:

  Model	Capacity	Power (kW)					Dimension (m)				Nozzle list (DN)
  		Recycle pump	Air compressor	Skimmer	IDAF2 Fast mixer	IDAF2 Slow mixer	DAF2 L₁/L₂	IDAF2 L₁/L₂	W₁/W₂	H₁/H₂	Inlet (a)	Outlet (b)	Sludge outlet (c)	Vent nozzle (d)
  010	~10	4.0	0.6	0.12	0.4	0.3	4.3/3.3	5.3/4.0	2.9/1.7	2.7/2.2	100	100	100	100
  020	~20	4.0	0.8	0.12	0.4	0.3	6.1/4.8	6.5/5.2	3.2/2.2	2.7/2.2	150	100	100	100
  030	~30	5.5	0.8	0.12	0.4	0.3	6.8/5.5	8.0/6.7	3.2/2.2	2.7/2.2	150	150	150	100
  040	~40	5.5	0.8	0.12	0.8	0.4	6.8/5.5	8.0/6.7	3.6/2.7	2.6/2.2	200	200	150	100
  050	~50	7.5	0.8	0.12	0.8	0.4	7.6/6.3	9.1/7.8	3.6/2.7	2.6/2.2	200	200	150	100
  080	~80	11.0	1.5	0.12	1.5	0.4	9.2/7.6	10.8/9.2	4.4/3.4	3.0/2.6	250	200	150	100
  100	~100	11.0	1.5	0.12	1.5	0.4	11.0/9.4	13.4/11.8	4.4/3.4	3.0/2.6	300	250	150	100
  120	~120	11.0	2.2	0.12	1.5	0.4	12.0/10.4	14.4/12.8	4.4/3.4	3.0/2.6	300	250	150	100
  150	~150	15.0	3.0	0.12	1.5	0.4	13.5/12.0	15.8/14.4	4.5/3.8	3.0/2.6	300	300	150	100




Applications:

Engineered for seawater reverse osmosis (SWRO) pre-treatment in South America, brackish water desalination intake clarification, and coastal industrial seawater supply. Trusted by desalination plant operators in Chile (Antofagasta, Atacama), Peru (Lima), Argentina and Colombia for RO membrane protection.

FAQ:

Q: Brand? A: DUBHE.

Q: Material for seawater? A: 316L marine-grade SS for superior corrosion resistance.

Q: Deliver to South America? A: Yes, to Chile, Peru, Argentina, Colombia via ocean freight.

Q: MOQ? A: 1 set.
