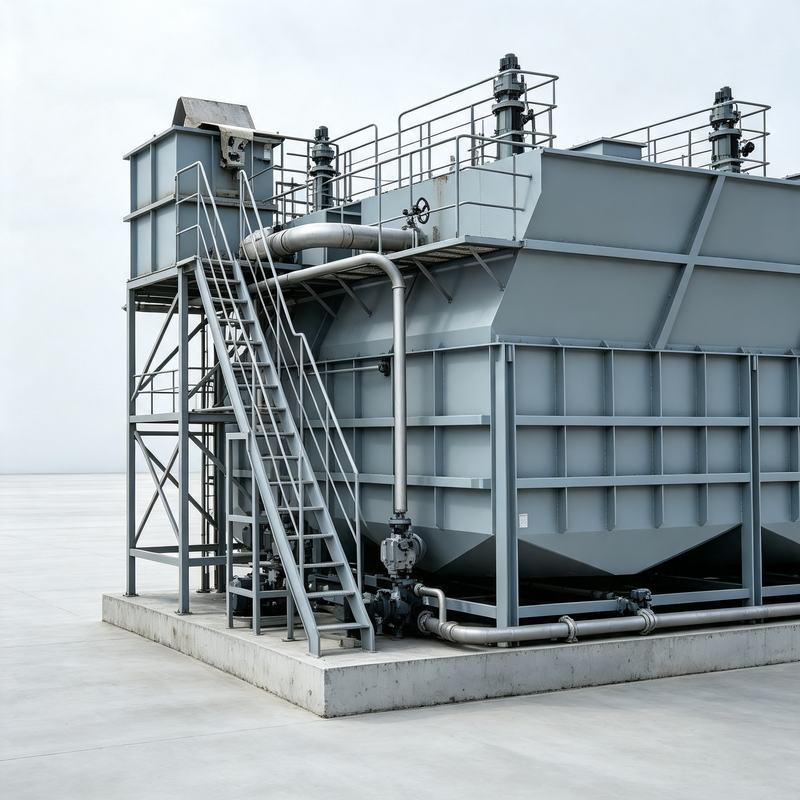

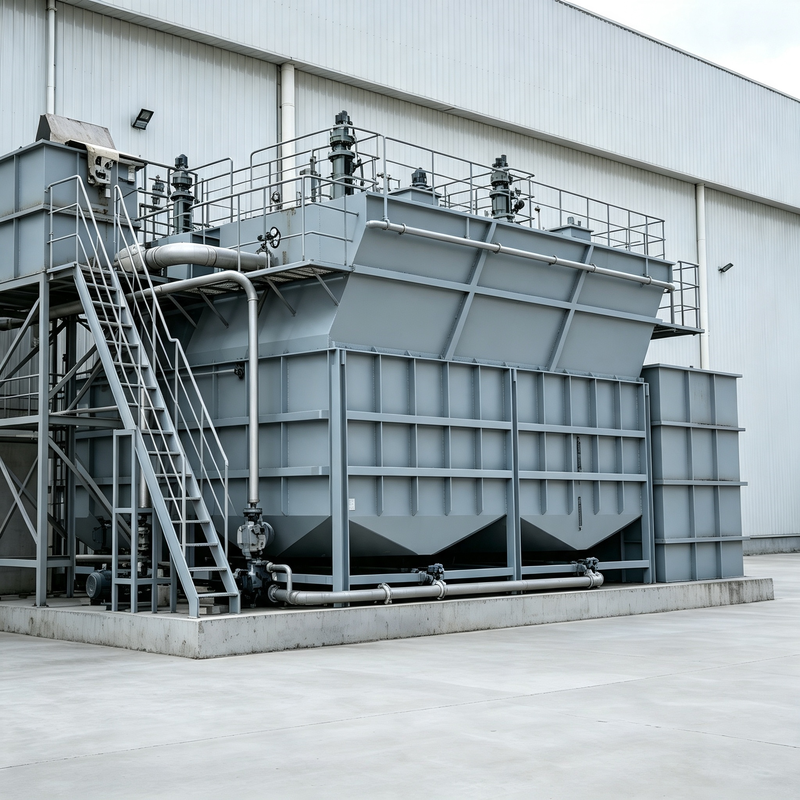

PVC Lamella Tube Settler Media Inclined Plate Clarifier for Wastewater Treatment Plant 50mm Spacing

PVC Lamella Tube Settler Media for Wastewater Treatment

Our PVC Lamella Tube Settler Media (Model BLT-50) is a high-performance inclined plate sedimentation filler designed for new construction and retrofit of clarifiers in wastewater treatment plants. Manufactured from rigid PVC with precise 50mm tube spacing and a 60° inclination angle, this media dramatically increases the effective settling area while reducing plant footprint by up to 80%. Widely adopted across Brazil, Mexico, Chile, Colombia, and Peru for municipal and industrial applications.

Key Features & Benefits

• Proven Hydraulic Design: 60° inclined honeycomb tube geometry ensures laminar flow conditions and optimal particle settling trajectories, achieving effluent turbidity below 5 NTU.
• High Surface Loading Rate: Designed for 3.0-5.0 m³/(m²·h) surface loading, enabling compact tank dimensions without sacrificing treatment quality.
• Durable Rigid PVC Construction: UV-stabilized PVC formulation resists chemical degradation and biological fouling, delivering 10+ years of service life in typical conditions.
• Modular Assembly: Standard 1000*1000*866mm modules with interlocking edges for fast on-site installation. Custom dimensions available for tank-specific requirements.
• Retrofit Ready: Ideal for upgrading existing rectangular or circular sedimentation tanks, increasing throughput capacity without expanding civil works.

Technical Specifications

Trusted Across Latin America

Bubble Air tube settler media is installed in municipal water treatment plants in São Paulo, Bogotá, Lima, Santiago, and Buenos Aires. We provide complete hydraulic design calculations, installation supervision in Spanish and Portuguese, and competitive FOB/CIF pricing to all major Latin American ports including Santos, Callao, Valparaíso, and Cartagena.

Contact our technical sales team for free process sizing and a tailored quotation. Bulk order discounts and annual supply contracts available for engineering firms and EPC contractors.
