Place of Origin:
Jiangsu, China
Brand Name:
DUBHE
Certification:
ISO 9001:2015
Model Number:
PE01

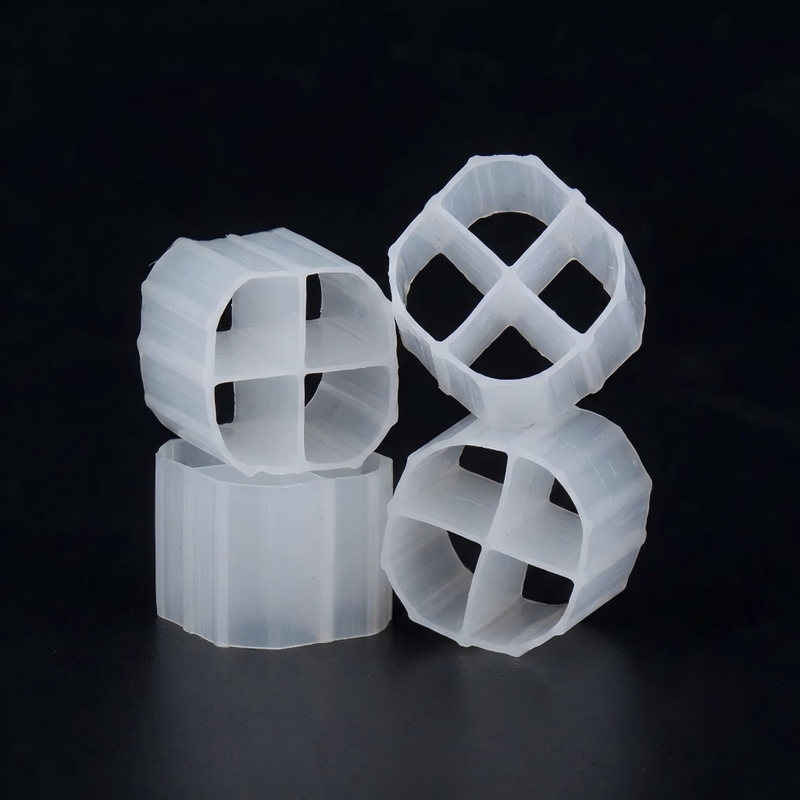

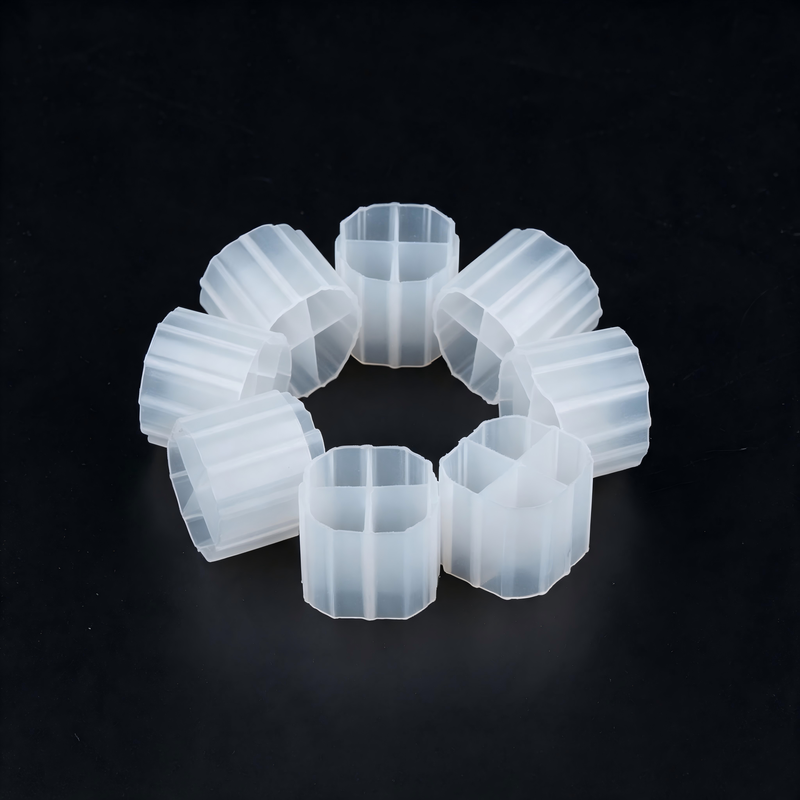

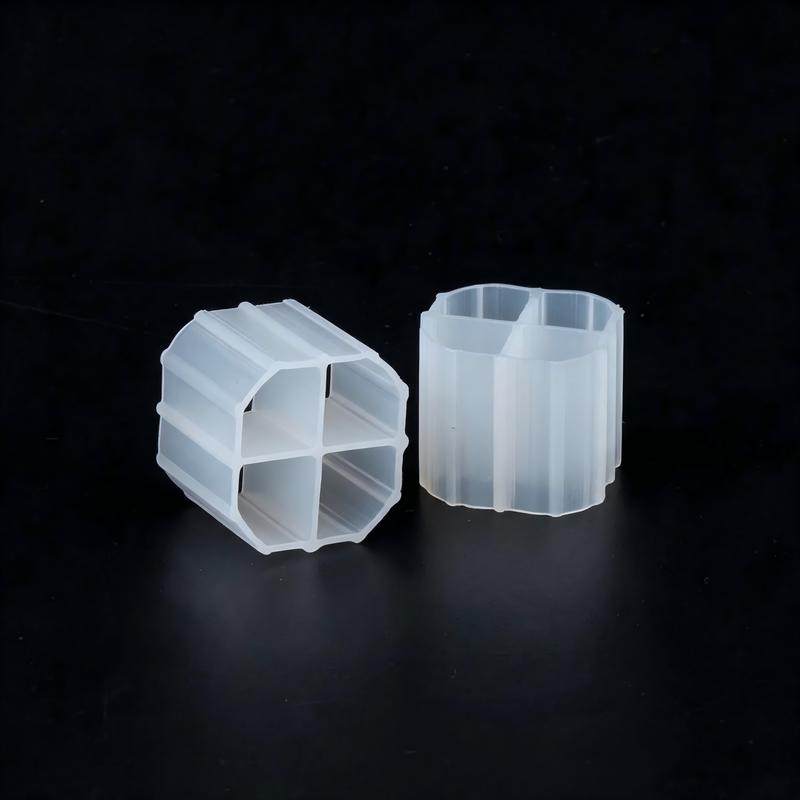

Our BM-K5-BIO PE01 bio media carrier is a premium bio media solution purpose-built for moving bed biofilm reactor (MBBR) and integrated fixed-film activated sludge (IFAS) systems operating in South American wastewater treatment plants. Manufactured from virgin HDPE with precision-engineered internal geometry, these K5-type bio media carriers deliver exceptional biofilm attachment performance, enhanced treatment capacity, and extended operational reliability in the diverse climatic and wastewater conditions found across Brazil, Argentina, Chile, Colombia, and Peru.
| Project | Unit | Parameter |
| Spec. | mm | Φ12×9,Φ10×7,Φ25×Φ10,Φ11×7,Φ16×10,Φ5×10,Φ25×4 |
| Material | - | HDPE |
| Efficient Surface | m²/m³ | >800 |
| Void ratio | % | >95 |
| Dosing ratio | % | 15~70 |
| Membrane hanging time | days | 5~15 |
| Nitrification efficiency | gNH4-N/m³.d | 400~1200 |
| BOD5 Oxidation efficiency | gBOD5/m³.d | 2000~10000 |
| COD Oxidation efficiency | gCOD/m³.d | 2000~15000 |
| Packing density | g/cm³ | 0.94-0.97 |
| Specific gravity | g/cm³ | >0.96 |
| Specific gravity after filming | g/cm³ | 1 |
| Service life | year | ≥15 |
| PH | - | 5~11 |
| Applicable temperature | ℃ | 35~65 |
DUBHE K5 bio media carriers are deployed in municipal wastewater treatment plants in Buenos Aires, Argentina, slaughterhouse effluent MBBR systems in Rio Grande do Sul, Brazil, coffee processing wastewater facilities in Medellín, Colombia, copper mine camp sewage treatment in Antofagasta, Chile, and fish processing effluent plants in Lima, Peru. Our bio media consistently achieves BOD removal exceeding 92% and ammonia-nitrogen reduction above 95% in these demanding South American applications.
Contact our bio media specialists for free reactor design consultation, carrier volume calculation, and comprehensive commercial quotation with door-to-port shipping to all South American destinations. Technical documentation available in Spanish and Portuguese.
