K3 Type HDPE Wastewater Treatment Filter Media WWTP MBBR Biofilm Carrier 800 m²/m³ for Latin America Sewage Plants

PE01 Type HDPE Wastewater Treatment Filter Media for WWTP MBBR Applications in Latin America

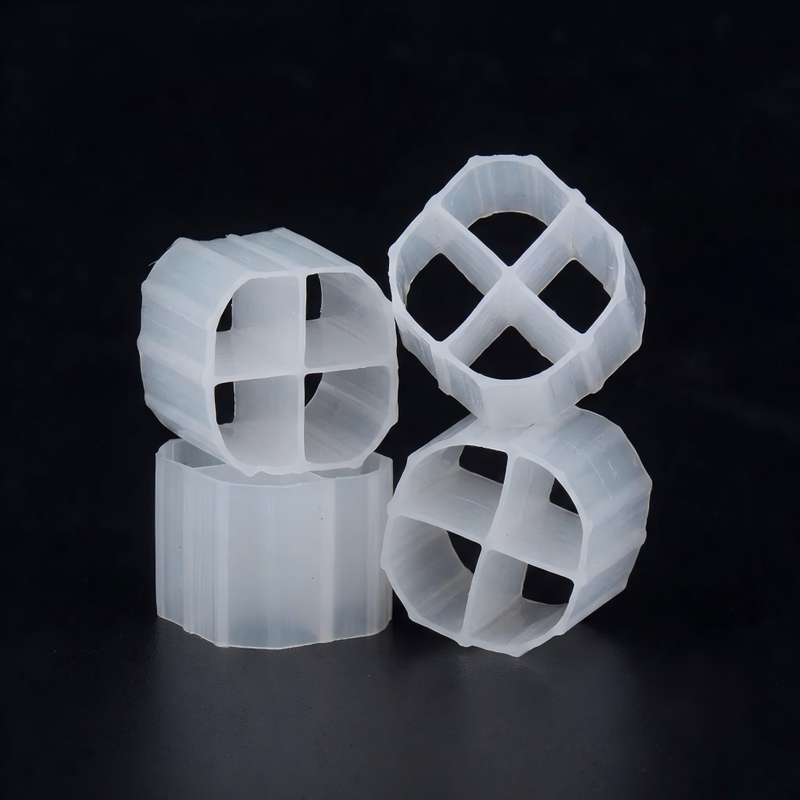

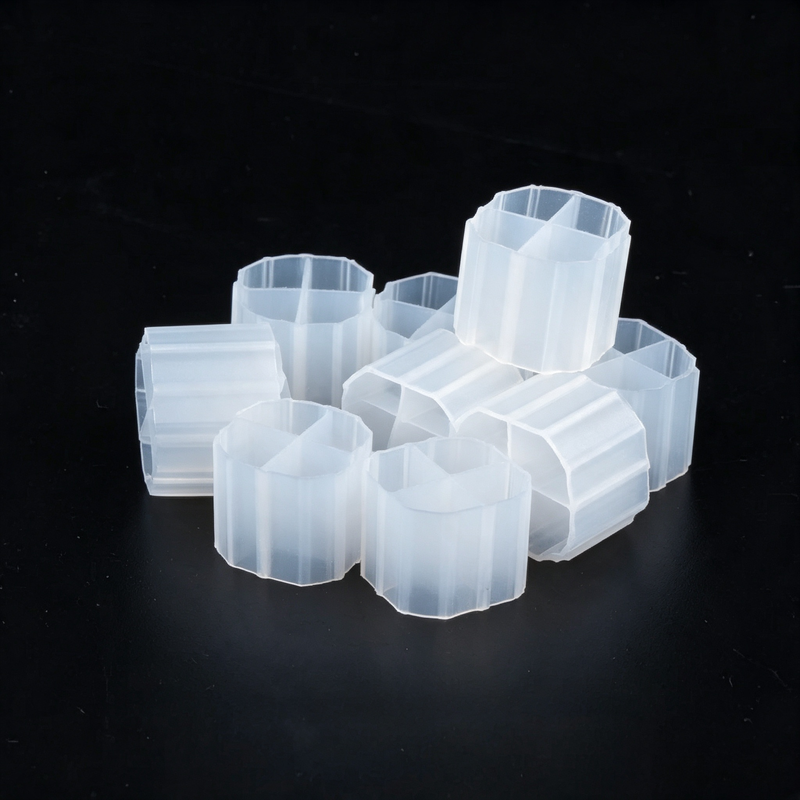

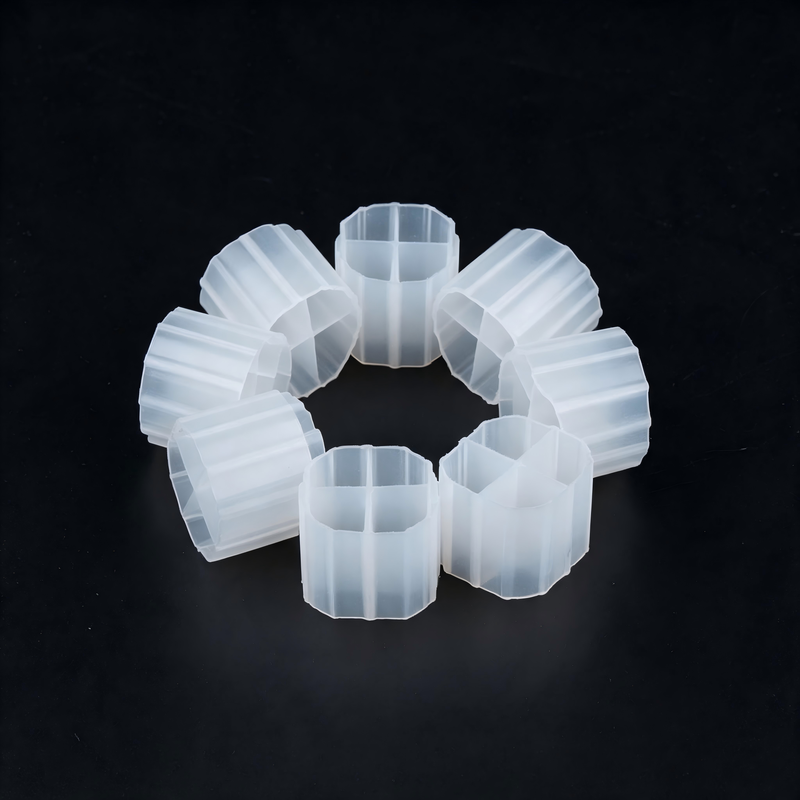

Our BM-K3-WWTP K3 type wastewater treatment filter media is a high-performance suspended biofilm carrier engineered specifically for WWTP (Wastewater Treatment Plant) MBBR and IFAS installations across Latin America. Featuring an optimized K3 cylindrical wheel geometry with multi-layer internal fins, these carriers deliver ≥800 m²/m³ protected surface area for robust biofilm development in municipal WWTP applications. The K3 design excels in wastewater treatment plants handling variable organic and hydraulic loads typical of Latin American urban sewage networks in Brazil, Mexico, Colombia, Chile, and Argentina.

PE01 WWTP Filter Media Engineered for Latin American Sewage Treatment

• K3 Geometry Optimized for WWTP Hydraulic Conditions: The BM-K3-WWTP carrier features a larger-diameter cylindrical wheel design (Φ25*12 mm and Φ25*10 mm) with reinforced internal fin structure. The K3 geometry provides exceptional structural integrity under the high mixing energy and long retention times characteristic of large-scale WWTP MBBR reactors, preventing carrier deformation and ensuring consistent biofilm performance over 15+ years of continuous operation in municipal wastewater treatment plants.

• Enhanced Internal Biofilm Protection: Multi-layer internal fins create protected micro-zones within each carrier, shielding nitrifying and denitrifying biofilms from shear forces during peak flow events common in Latin American WWTP combined sewer systems. This internal protection maintains stable nitrification performance even during wet-weather flow surges, a critical advantage for Latin American cities with combined sewer infrastructure.

• Superior Solids Management in WWTP Applications: The K3 carrier's open external geometry prevents ragging and fiber accumulation in municipal wastewater with high solids content. The smooth HDPE surface and optimized fin spacing allow primary-treated sewage solids to pass through the carrier bed without clogging, reducing WWTP maintenance requirements and eliminating the need for fine screening upstream of MBBR reactors.

• Proven Nitrification Stability at WWTP Scale: With nitrification efficiency of 400-1200 gNH₄-N/m³·d and BOD5 oxidation of 2000-10000 gBOD₅/m³·d, K3 carriers consistently achieve ammonia discharge limits below 5 mg/L in Latin American WWTP installations. The thick, mature biofilm supported by the K3 geometry maintains treatment stability through diurnal and seasonal load variations common in municipal sewage treatment.

• Low Lifecycle Cost for Municipal WWTP Budgets: Virgin HDPE construction with a ≥15-year service life eliminates carrier replacement costs over multiple municipal budget cycles. The low attrition rate (<0.5% per year) minimizes the need for makeup carrier addition, making K3 media the most cost-effective long-term wastewater treatment filter media choice for cash-constrained Latin American municipal WWTP operators.

Technical Specifications

K3 Media in Latin American WWTP Operations

DUBHE K3 wastewater treatment filter media serves municipal WWTP MBBR reactors in Porto Alegre, Brazil, urban sewage treatment plants in Querétaro, Mexico, city WWTP upgrades in Cartagena, Colombia, and municipal wastewater facilities in Valparaíso, Chile. Our K3 carriers consistently enable Latin American WWTPs to meet tightening effluent ammonia and BOD standards within existing basin footprints.

Contact our WWTP filter media team for complementary reactor fill calculation, hydraulic analysis, and detailed commercial proposal with shipping to all Latin American ports. Spanish and Portuguese engineering support available for WWTP design teams.
