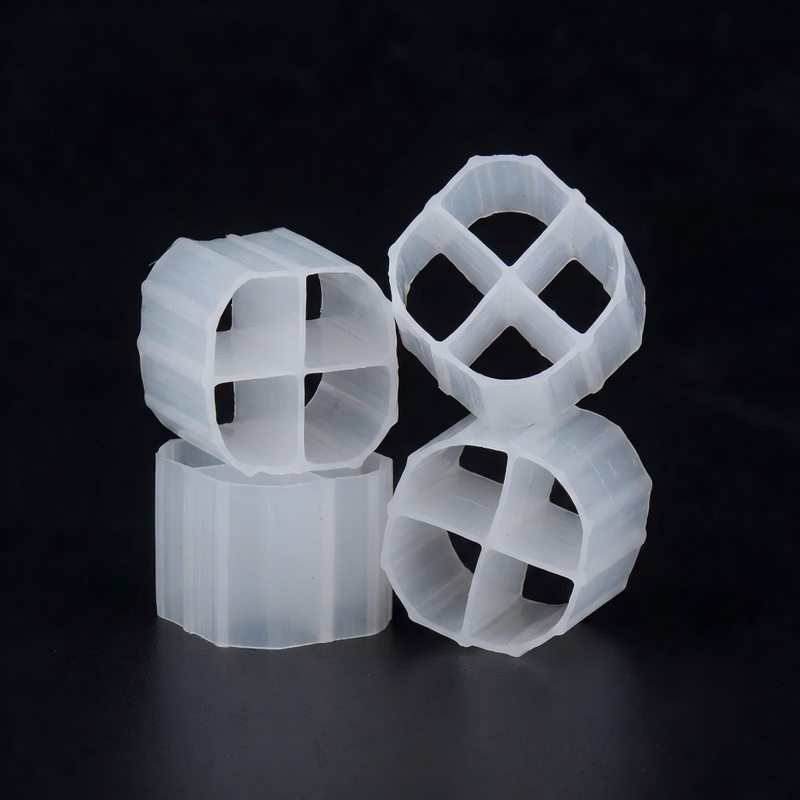

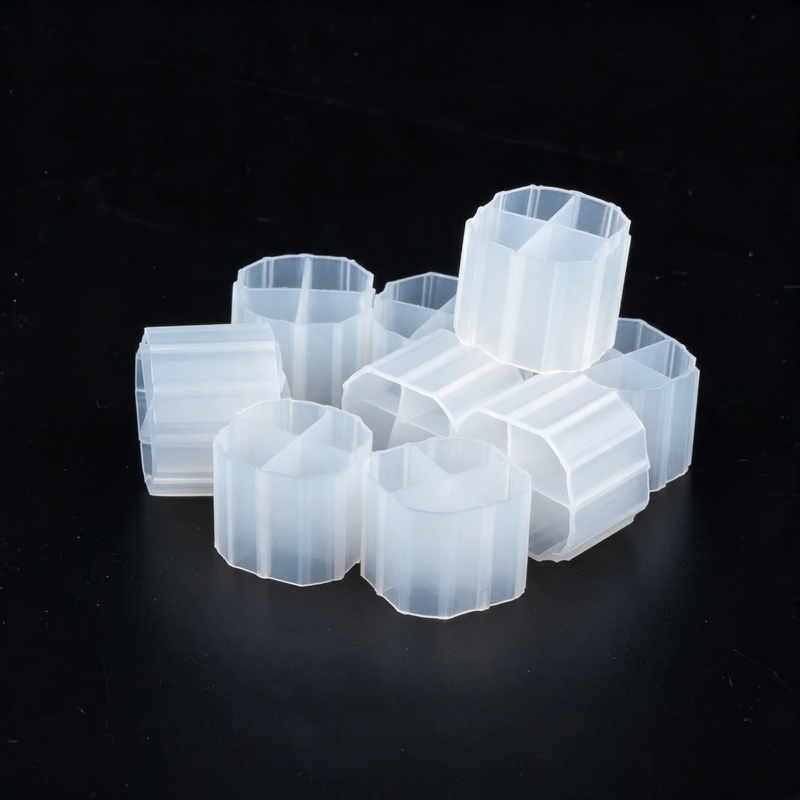

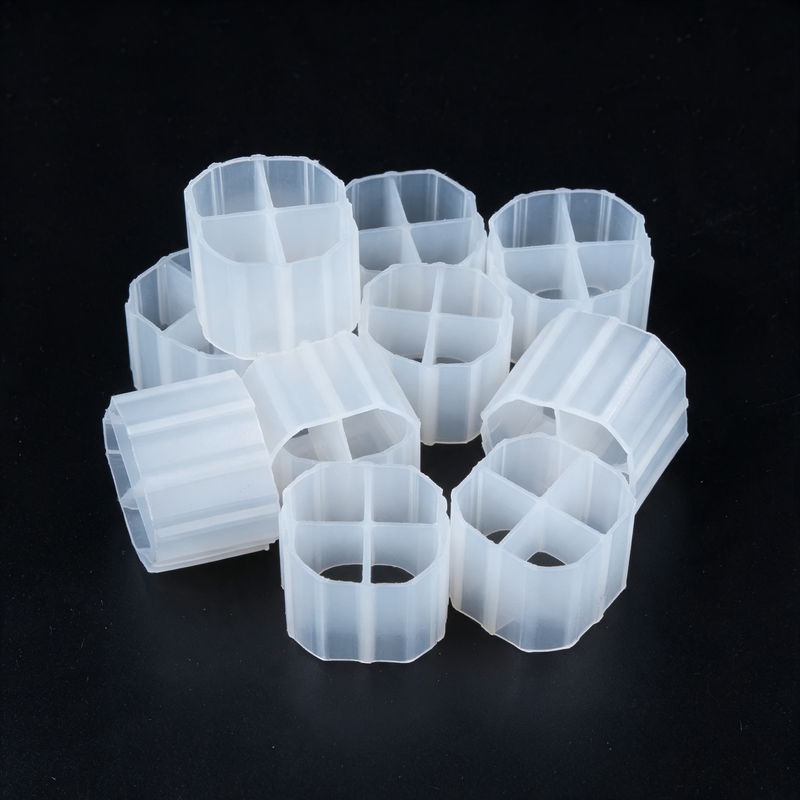

WWTP ETP Dual-Use MBBR Biofilm Carrier Media HDPE 800 m²/m³ Municipal Industrial Wastewater Treatment for Latin America

WWTP ETP Dual-Use MBBR Biofilm Carrier Media HDPE 800 m²/m³ Municipal Industrial Wastewater Treatment for Latin America

WWTP ETP Dual-Use MBBR Carrier

Municipal Industrial Biofilm Media HDPE

800 m²/m³ Universal MBBR Biocarrier

Place of Origin:

Jiangsu, China

Brand Name:

DUBHE

Certification:

ISO 9001:2015

Model Number:

PE01

Contact Us
Request A Quote
WWTP ETP Dual-Use MBBR Biofilm Carrier Media HDPE 800 m²/m³ Municipal Industrial Wastewater Treatment for Latin America WWTP ETP Dual-Use MBBR Biofilm Carrier Media HDPE 800 m²/m³ Municipal Industrial Wastewater Treatment for Latin America WWTP ETP Dual-Use MBBR Biofilm Carrier Media HDPE 800 m²/m³ Municipal Industrial Wastewater Treatment for Latin America
Product Details
Material:
Virgin HDPE
Carrier Type:
Universal Cylindrical Wheel
Specification:
Φ10×7 / Φ12×9 / Φ25×10 Mm
Specific Surface Area:
≥ 800 M²/m³
Void Ratio:
> 95%
Nitrification Efficiency:
400-1200 GNH₄-N/m³·d
COD Oxidation Efficiency:
2000-15000 GCOD/m³·d
Service Life:
≥ 15 Years
Highlight:

WWTP ETP Dual-Use MBBR Carrier

,

Municipal Industrial Biofilm Media HDPE

,

800 m²/m³ Universal MBBR Biocarrier

Payment & Shipping Terms
Minimum Order Quantity
1 Cubic Meter
Price
USD 175 - 340 / Cubic Meter
Packaging Details
Dual-use MBBR media in 50L woven PP bags, palletized ISPM 15. Bulk container loading available.
Delivery Time
7-15 working days after order confirmation
Payment Terms
T/T,L/C,Western Union
Supply Ability
700 Cubic Meters per Month
RELATED PRODUCTS
Good price Anaerobic MBBR Wastewater Treatment Filter Media HDPE Biofilm Carrier 800 m²/m³ for Latin America High-Strength Effluent online

Anaerobic MBBR Wastewater Treatment Filter Media HDPE Biofilm Carrier 800 m²/m³ for Latin America High-Strength Effluent

Get Best Price
Good price Denitrification Bio Media MBBR Carrier HDPE Pre-Colonized Surface for South America Nitrogen Removal Wastewater Plants online

Denitrification Bio Media MBBR Carrier HDPE Pre-Colonized Surface for South America Nitrogen Removal Wastewater Plants

Get Best Price
Good price K3 Type HDPE Wastewater Treatment Filter Media WWTP MBBR Biofilm Carrier 800 m²/m³ for Latin America Sewage Plants online

K3 Type HDPE Wastewater Treatment Filter Media WWTP MBBR Biofilm Carrier 800 m²/m³ for Latin America Sewage Plants

Get Best Price
Good price Industrial Effluent Treatment ETP Bio Media Virgin HDPE MBBR Biofilm Carrier for South America Plant Applications online

Industrial Effluent Treatment ETP Bio Media Virgin HDPE MBBR Biofilm Carrier for South America Plant Applications

Get Best Price
Contact Us
Contact Now
Product Description

WWTP ETP Dual-Use MBBR Biofilm Carrier for Latin America

Our PE01 dual-use biofilm carrier media is a versatile HDPE suspended carrier for both WWTP and ETP applications across Latin America. ≥800 m²/m³ surface area with multi-spec availability simplifies procurement for multi-site operators in Brazil, Mexico, Colombia, and Chile.

Universal MBBR Carrier for WWTP and ETP

  • Single Specification: Reliable across municipal WWTP and industrial ETP conditions.
  • Three-Spec Flexibility: Φ10*7, Φ12*9, Φ25*10 mm from same production line.
  • Simplified Logistics: 700 m³/month capacity with Latin America warehousing.

Technical Specifications

Spec.  mm Φ12×9,Φ10×7,Φ25×Φ10,Φ11×7,Φ16×10,Φ5×10,Φ25×4
Material - HDPE
Efficient Surface m²/m³ >800
Void ratio % >95
Dosing ratio % 15~70
Membrane hanging time  days 5~15
Nitrification efficiency  gNH4-N/m³.d 400~1200
BOD5 Oxidation efficiency  gBOD5/m³.d 2000~10000
COD Oxidation efficiency gCOD/m³.d 2000~15000
Packing density g/cm³ 0.94-0.97
Specific gravity g/cm³ >0.96
Specific gravity after filming  g/cm³ 1
Service life  year ≥15
PH - 5~11
Applicable temperature  ℃ 35~65

PACKAGE

WWTP ETP Dual-Use MBBR Biofilm Carrier Media HDPE 800 m²/m³ Municipal Industrial Wastewater Treatment for Latin America
