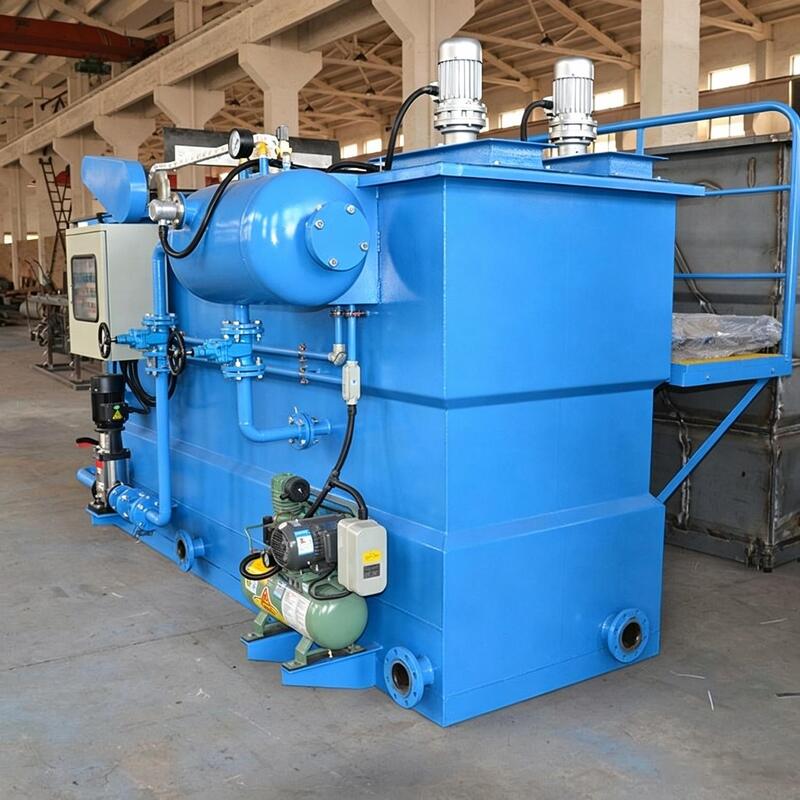

Name: Stainless Steel DAF2 Air Flotation Machine 10-150m³/h for WWTP Sewage Phosphorus Removal
Brand: SHANGHAI DUBHE ENVIRONMENTAL PROTECTION&TECHNOLOGY CO.,LTD
SKU: DAF2-WW Series
Price: 23.00 USD
Availability: InStock

Home > products > Solid Liquid Separator >

Stainless Steel DAF2 Air Flotation Machine 10-150m³/h for WWTP Sewage Phosphorus Removal

WWTP Phosphorus Removal DAF2 System

Sewage Upgrade 4000mg/L Flotation Load

W-Type Sludge Hopper Automatic Skimming

Place of Origin:

Jiangsu, China

Brand Name:

DUBHE

Certification:

ISO 9001:2015

Model Number:

DAF2-WW Series

Request A Quote

Stainless Steel DAF2 Air Flotation Machine 10-150m³/h for WWTP Sewage Phosphorus Removal

Product Details

Name:

Air Flotation Machine

Application:

WWTP Sewage Pre-treatment, Phosphorus Removal, Plant Upgrade

Treatment Capacity:

10-150 M³/h

Hydraulic Load:

4-8 M³/(m²·h)

Dissolved Air Pump:

1.5-18.5 KW

Skimmer:

0.2 KW

Allowable Floating Matter:

Up To 4000 Mg/L

Solid Content:

30-100 G/L

Sludge Hopper:

W-Type

Material:

Stainless Steel 304 / 316L

Highlight:

WWTP Phosphorus Removal DAF2 System

Sewage Upgrade 4000mg/L Flotation Load

W-Type Sludge Hopper Automatic Skimming

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

USD 8,500 - 38,000 / Set

Packaging Details

Export-grade plywood crate with VCI anti-rust protection, desiccant packs and reinforced steel frame for ocean freight

Delivery Time

25-40 working days after order confirmation

Payment Terms

T/T,L/C,Western Union

Supply Ability

30 Sets per Month

DAF2 Dissolved Air Flotation Machine 10-150m³/h for ETP Algae Removal Water Treatment

Get Best Price

DAF2 Air Flotation Machine Solid Liquid Separator 10-150m³/h for High Load Industrial Wastewater

Get Best Price

Stainless Steel DAF2 Air Flotation Machine 10-150m³/h for WWTP Sewage Phosphorus Removal

Get Best Price

Customizable DAF Solid Liquid Separator Machine 2-150m³/h for Food Municipal Semiconductor Wastewater

Get Best Price

Contact Now

Product Description

Stainless Steel DAF2 Air Flotation Machine for WWTP Sewage Phosphorus Removal

Our Stainless Steel DAF2 Air Flotation Machine (Model DAF2-WW Series) is the upgraded version of the standard DAF clarifier, engineered for WWTP (Wastewater Treatment Plant) sewage pre-treatment, plant upgrading and phosphorus removal duties. The DAF2 eliminates sedimentation problems in the pre-treatment section and delivers stable flotation performance even with heavy sludge loads. Trusted by water authorities and EPC contractors across Mexico, Brazil, Chile, Peru, Colombia and South Africa.

Key Features & Benefits

Enhanced WWTP Phosphorus Removal: Micro-bubble flotation effectively removes phosphorus-rich sludge and suspended solids, supporting discharge compliance for sewage treatment plants.
High Hydraulic Load: Operates at 4-8 m³/(m²·h) - up to double the load of conventional clarifiers, ideal for plant capacity upgrades.
Handles Heavy Sludge Loads: Allowable influent flotation concentration up to 4000 mg/L with automatic floating slag discharge at 30-100% solid content.
W-Type Sludge Hopper: Patented W-shape collecting hopper improves sludge concentration and discharge efficiency.
Demountable Design: Whole unit can be dismantled for easy transportation, installation and retrofit inside existing WWTP basins.

Technical Specifications

Standard DAF / IDAF Dissolved Air Flotation Equipment Technical Data Sheet
Model	Capacity	Power (kW)					Dimension (m)				Nozzle list (DN)
DAF/ IDAF	m³/h	Recycle pump	Air compressor	Skimmer	IDAF Fast mixer	IDAF Slow mixer	DAF L₁/L₂	IDAF L₁/L₂	W₁/W₂	H₁/H₂	Inlet (a)	Outlet (b)	Sludge outlet (c)	Vent nozzle (d)
003	~3	0.75	0.55	0.12	0.37	0.25	3.6/2.8	4.1/3.2	2.4/1.2	2.2/1.7	50	50	80	80
005	~5	1.1	0.55	0.12	0.37	0.25	3.8/3.0	4.4/3.6	2.4/1.2	2.2/1.7	80	80	80	80
010	~10	4	0.55	0.12	0.37	0.25	4.3/3.3	5.0/4.0	2.9/1.7	2.4/1.9	100	100	100	100
020	~20	4	0.75	0.12	0.37	0.25	5.7/4.8	6.2/5.2	3.2/2.2	2.4/1.9	150	100	100	100
030	~30	5.5	0.75	0.12	0.37	0.25	6.5/5.5	7.7/6.7	3.2/2.2	2.4/1.9	150	150	150	100
040	~40	5.5	0.75	0.12	0.75	0.37	6.5/5.5	7.7/6.7	3.6/2.7	2.4/1.9	200	200	150	100
050	~50	7.5	0.75	0.12	0.75	0.37	7.3/6.3	8.8/7.8	3.6/2.7	2.4/1.9	200	200	150	100
080	~80	11	1.5	0.12	1.5	0.37	8.9/7.6	10.6/9.2	4.4/3.4	2.7/2.3	250	200	150	100
100	~100	11	1.5	0.12	1.5	0.37	10.8/9.4	13.2/11.8	4.4/3.4	2.7/2.3	300	250	150	100
120	~120	11	2.2	0.12	1.5	0.37	11.7/10.4	14.2/12.8	4.4/3.4	2.7/2.3	300	250	150	100
150	~150	15	3	0.12	1.5	0.37	13.5/12.0	15.8/14.4	4.5/3.8	2.7/2.3	300	300	150	100

WWTP Applications

Ideal for sewage pre-treatment, plant upgrading, phosphorus removal, algae-laden water and sludge concentration. Spanish and Portuguese documentation, remote commissioning and operator training included.

Contact our industrial sales team today for a free effluent analysis and a DAF2 proposal tailored to your WWTP upgrade project.
