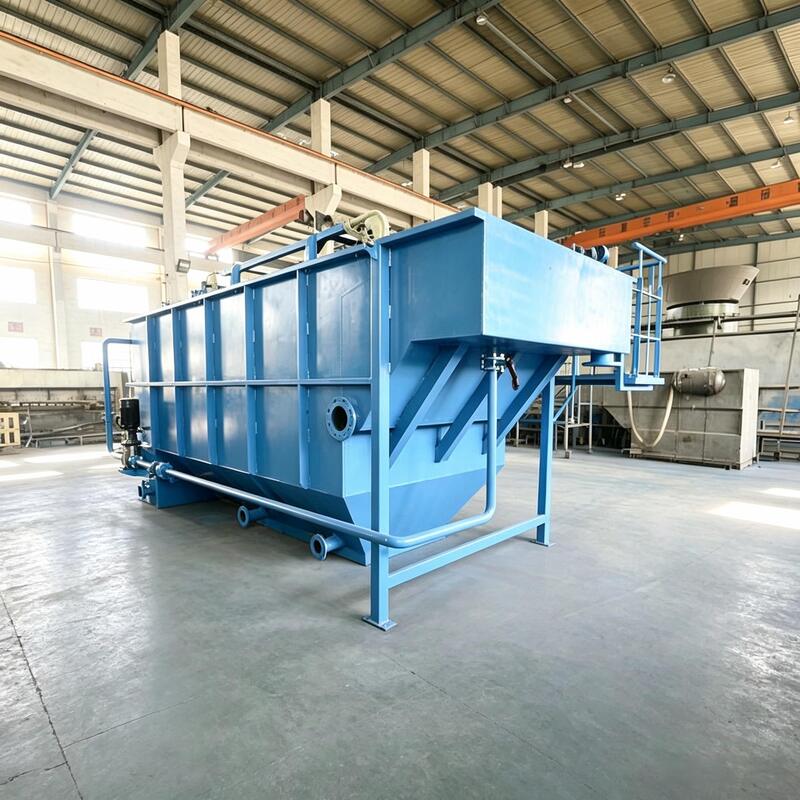

Name: DAF2 Stainless Steel Air Flotation Machine 10-150m³/h for Textile Dyeing Wastewater Treatment
Brand: SHANGHAI DUBHE ENVIRONMENTAL PROTECTION&TECHNOLOGY CO.,LTD
SKU: DAF2-TX Series
Price: 24.00 USD
Availability: InStock

Home > products > Solid Liquid Separator >

DAF2 Stainless Steel Air Flotation Machine 10-150m³/h for Textile Dyeing Wastewater Treatment

Textile Dyeing Wastewater Flotation

120m³/h Nonwoven Industry Proven

Automatic Slag Discharge 30-100%

Place of Origin:

Jiangsu, China

Brand Name:

DUBHE

Certification:

ISO 9001:2015

Model Number:

DAF2-TX Series

Request A Quote

DAF2 Stainless Steel Air Flotation Machine 10-150m³/h for Textile Dyeing Wastewater Treatment

Product Details

Name:

Air Flotation Machine

Application:

Textile Dyeing, Nonwoven Fabrics, Printing And Dyeing, Denim Washing

Treatment Capacity:

10-150 M³/h

Hydraulic Load:

4-8 M³/(m²·h)

Dissolved Air Pump:

1.5-18.5 KW

Skimmer:

0.2 KW

Allowable Floating Matter:

Up To 4000 Mg/L

Solid Content:

30-100 G/L

Sludge Hopper:

W-Type

Material:

Stainless Steel 304 / 316L

Highlight:

Textile Dyeing Wastewater Flotation

120m³/h Nonwoven Industry Proven

Automatic Slag Discharge 30-100%

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

USD 9,000 - 40,000 / Set

Packaging Details

Export-grade plywood crate with VCI anti-rust protection, desiccant packs and reinforced steel frame for ocean freight

Delivery Time

25-40 working days after order confirmation

Payment Terms

T/T,L/C,Western Union

Supply Ability

30 Sets per Month

DAF2 Dissolved Air Flotation Machine 10-150m³/h for ETP Algae Removal Water Treatment

Get Best Price

DAF2 Air Flotation Machine Solid Liquid Separator 10-150m³/h for High Load Industrial Wastewater

Get Best Price

Stainless Steel DAF2 Air Flotation Machine 10-150m³/h for WWTP Sewage Phosphorus Removal

Get Best Price

Customizable DAF Solid Liquid Separator Machine 2-150m³/h for Food Municipal Semiconductor Wastewater

Get Best Price

Contact Now

Product Description

DAF2 Air Flotation Machine for Textile Dyeing Wastewater Treatment

Our DAF2 Air Flotation Machine (Model DAF2-TX Series) is the upgraded dissolved air flotation system proven in textile dyeing and nonwoven fabric wastewater treatment - including a 120 m³/h installation at a leading global hydroentangled nonwoven fabric producer. The DAF2 removes dyes, fibers, sizing agents and suspended solids from textile effluent, protecting downstream biological treatment and enabling water reuse. Trusted by textile mills across Mexico, Brazil, Chile, Peru, Colombia and South Africa.

Key Features & Benefits

Proven Textile Industry Performance: Field-proven in nonwoven fabric and dyeing wastewater with heavy color loads and fiber content.
Eliminates Sedimentation Problems: Prevents sediment buildup in pre-treatment, ensuring stable effluent quality and operation.
High Load Tolerance: Handles up to 4000 mg/L influent flotation concentration at 4-8 m³/(m²·h) hydraulic load.
Automatic Slag Discharge: Continuous skimming with 30-100% solid content sludge, reducing downstream sludge handling cost.
Demountable Stainless Steel Unit: SS304/316L construction with modular design for easy transport and rapid installation.

Technical Specifications

Standard DAF / IDAF Dissolved Air Flotation Equipment Technical Data Sheet
Model	Capacity	Power (kW)					Dimension (m)				Nozzle list (DN)
DAF/ IDAF	m³/h	Recycle pump	Air compressor	Skimmer	IDAF Fast mixer	IDAF Slow mixer	DAF L₁/L₂	IDAF L₁/L₂	W₁/W₂	H₁/H₂	Inlet (a)	Outlet (b)	Sludge outlet (c)	Vent nozzle (d)
003	~3	0.75	0.55	0.12	0.37	0.25	3.6/2.8	4.1/3.2	2.4/1.2	2.2/1.7	50	50	80	80
005	~5	1.1	0.55	0.12	0.37	0.25	3.8/3.0	4.4/3.6	2.4/1.2	2.2/1.7	80	80	80	80
010	~10	4	0.55	0.12	0.37	0.25	4.3/3.3	5.0/4.0	2.9/1.7	2.4/1.9	100	100	100	100
020	~20	4	0.75	0.12	0.37	0.25	5.7/4.8	6.2/5.2	3.2/2.2	2.4/1.9	150	100	100	100
030	~30	5.5	0.75	0.12	0.37	0.25	6.5/5.5	7.7/6.7	3.2/2.2	2.4/1.9	150	150	150	100
040	~40	5.5	0.75	0.12	0.75	0.37	6.5/5.5	7.7/6.7	3.6/2.7	2.4/1.9	200	200	150	100
050	~50	7.5	0.75	0.12	0.75	0.37	7.3/6.3	8.8/7.8	3.6/2.7	2.4/1.9	200	200	150	100
080	~80	11	1.5	0.12	1.5	0.37	8.9/7.6	10.6/9.2	4.4/3.4	2.7/2.3	250	200	150	100
100	~100	11	1.5	0.12	1.5	0.37	10.8/9.4	13.2/11.8	4.4/3.4	2.7/2.3	300	250	150	100
120	~120	11	2.2	0.12	1.5	0.37	11.7/10.4	14.2/12.8	4.4/3.4	2.7/2.3	300	250	150	100
150	~150	15	3	0.12	1.5	0.37	13.5/12.0	15.8/14.4	4.5/3.8	2.7/2.3	300	300	150	100

Textile Applications

Suitable for textile printing and dyeing mills, nonwoven fabric production, denim washing and garment processing wastewater. Spanish and Portuguese documentation, remote commissioning and operator training included.

Contact our team today for a free effluent analysis and a DAF2 proposal tailored to your textile wastewater project.
