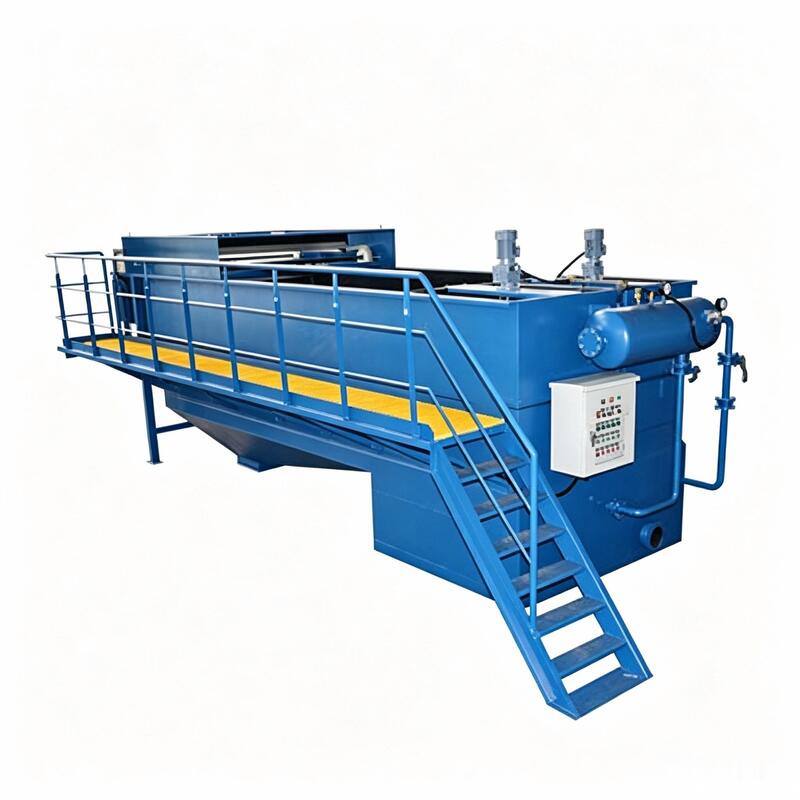

Solid Liquid Separator DAF Air Flotation Machine 10-150m3/h Stainless Steel ETP Effluent Treatment Equipment

Solid Liquid Separator DAF Working Principle

The solid liquid separator DAF air flotation machine is a high-efficiency clarification device for ETP effluent treatment. Pressurized air is dissolved into the wastewater and released as fine micro-bubbles that attach to suspended solids, colloids, oil and grease, carrying them to the water surface. The automatic skimmer then discharges the concentrated sludge, achieving rapid solid-liquid separation. The equipment effectively eliminates sedimentation problems in the effluent pre-treatment section, ensuring stable operation and consistent effluent quality.

Features and Advantages

• Efficient solid-liquid separation with automatic slag discharge, sludge content up to 30~100 g/L
• High hydraulic load: 4~8 m3/(m2.h)
• Allowable influent flotation concentration up to ~4000 mg/L
• Stainless steel construction, corrosion resistant for aggressive industrial effluent
• "W" type sludge collecting hopper and side closed scraping system
• Whole unit dismantlable for easy transport and on-site installation

Technical Parameters

Applications

1. ETP effluent treatment plants for textile printing and dyeing, food processing, chemical and machinery industries. 2. Industrial wastewater pretreatment with obvious sedimentation phenomena. 3. Sewage treatment plant pretreatment and upgrading. 4. Aquaculture wastewater treatment. 5. River and lake purification projects.

Application Case

Industrial effluent treatment case. Industry: Food Processing Wastewater. Capacity: 120 m3/h. Product: DAF air flotation machine. Food processing effluent contains high concentrations of suspended solids, grease and organic matter. The solid liquid separator DAF machine removes suspended solids and directly settleable impurities in the pretreatment stage, stabilizes water quality and quantity, and provides a reliable feed for downstream biological treatment, significantly improving the overall ETP performance.
