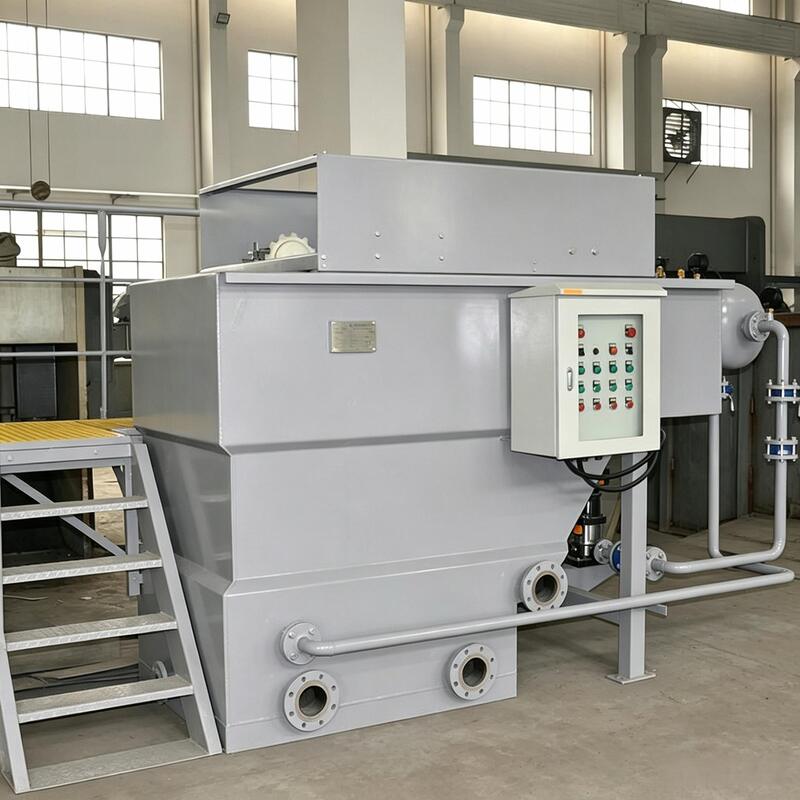

Name: DAF Dissolved Air Flotation Unit 10-150m3/h Stainless Steel Wastewater Treatment Equipment for WWTP Plants
Brand: SHANGHAI DUBHE ENVIRONMENTAL PROTECTION&TECHNOLOGY CO.,LTD
SKU: DAF-W10 to DAF-W150
Price: 54.00 USD
Availability: InStock

Home > products > Solid Liquid Separator >

DAF Dissolved Air Flotation Unit 10-150m3/h Stainless Steel Wastewater Treatment Equipment for WWTP Plants

DAF Unit WWTP Wastewater Treatment

Automatic Skimming DAF Equipment

Stainless Steel DAF Flotation Unit

Place of Origin:

Guangdong, China

Brand Name:

BUBBLEAIR

Certification:

ISO 9001:2015, CE

Model Number:

DAF-W10 to DAF-W150

Request A Quote

DAF Dissolved Air Flotation Unit 10-150m3/h Stainless Steel Wastewater Treatment Equipment for WWTP Plants

Product Details

Model Range:

DAF-W10 To DAF-W150

Capacity:

10-150 M3/h

Hydraulic Load:

4~6 M3/(m2.h)

Dissolved Air Pump Power:

0.75~18.5 KW

Allowable Concentration Of Floating Matter:

Up To 3000 Mg/L

Solid Content:

30~100 G/L

Automatic Skimming:

Yes

Material:

Stainless Steel SS304/SS316

Main Function:

Wastewater Treatment / Solid Liquid Separation

Application:

Municipal & Industrial WWTP

Highlight:

DAF Unit WWTP Wastewater Treatment

Automatic Skimming DAF Equipment

Stainless Steel DAF Flotation Unit

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

USD 8,000-100,000 / Set

Packaging Details

Export seaworthy plywood case, container loading

Delivery Time

20-35 days after deposit

Payment Terms

T/T,L/C,Western Union

Supply Ability

50 Sets per Month

DAF Dissolved Air Flotation Unit 10-150m3/h Stainless Steel Wastewater Treatment Equipment for WWTP Plants

Get Best Price

DAF Dissolved Air Flotation System 10-150m3/h Stainless Steel Effluent Treatment Plant ETP Wastewater Equipment

Get Best Price

Versatile DAF Dissolved Air Flotation System 10-150m3/h Stainless Steel WWTP Sewage Treatment Equipment

Get Best Price

DAF2 Dissolved Air Flotation Machine 10-150m³/h for WWTP Sludge Thickening Concentration

Get Best Price

Contact Now

Product Description

DAF Dissolved Air Flotation Unit for WWTP Wastewater Treatment Product Description

This DAF dissolved air flotation unit is engineered for WWTP wastewater treatment plants that demand stable, high-volume solid liquid separation. Handling 10 to 150 m3/h at a hydraulic load of 4~6 m3/(m2.h), the unit combines automatic skimming with a compact stainless steel structure, removing suspended solids, oil and grease efficiently. Municipal and industrial WWTP projects in Latin America, South America and South Africa choose this equipment for its stable operation, low energy consumption and minimal maintenance.

Features and Advantages

Complete DAF unit for WWTP wastewater treatment plants
Automatic skimming with solid content up to 30~100 g/L
High hydraulic load: 4~6 m3/(m2.h) for high-volume applications
Allowable concentration of floating matter up to 3000 mg/L
Stable operation with low energy consumption
Stainless steel construction, easy to operate and maintain

Technical Parameters

Standard DAF / IDAF Dissolved Air Flotation Equipment Technical Data Sheet
Model	Capacity	Power (kW)					Dimension (m)				Nozzle list (DN)
DAF/ IDAF	m³/h	Recycle pump	Air compressor	Skimmer	IDAF Fast mixer	IDAF Slow mixer	DAF L₁/L₂	IDAF L₁/L₂	W₁/W₂	H₁/H₂	Inlet (a)	Outlet (b)	Sludge outlet (c)	Vent nozzle (d)
003	~3	0.75	0.55	0.12	0.37	0.25	3.6/2.8	4.1/3.2	2.4/1.2	2.2/1.7	50	50	80	80
005	~5	1.1	0.55	0.12	0.37	0.25	3.8/3.0	4.4/3.6	2.4/1.2	2.2/1.7	80	80	80	80
010	~10	4	0.55	0.12	0.37	0.25	4.3/3.3	5.0/4.0	2.9/1.7	2.4/1.9	100	100	100	100
020	~20	4	0.75	0.12	0.37	0.25	5.7/4.8	6.2/5.2	3.2/2.2	2.4/1.9	150	100	100	100
030	~30	5.5	0.75	0.12	0.37	0.25	6.5/5.5	7.7/6.7	3.2/2.2	2.4/1.9	150	150	150	100
040	~40	5.5	0.75	0.12	0.75	0.37	6.5/5.5	7.7/6.7	3.6/2.7	2.4/1.9	200	200	150	100
050	~50	7.5	0.75	0.12	0.75	0.37	7.3/6.3	8.8/7.8	3.6/2.7	2.4/1.9	200	200	150	100
080	~80	11	1.5	0.12	1.5	0.37	8.9/7.6	10.6/9.2	4.4/3.4	2.7/2.3	250	200	150	100
100	~100	11	1.5	0.12	1.5	0.37	10.8/9.4	13.2/11.8	4.4/3.4	2.7/2.3	300	250	150	100
120	~120	11	2.2	0.12	1.5	0.37	11.7/10.4	14.2/12.8	4.4/3.4	2.7/2.3	300	250	150	100
150	~150	15	3	0.12	1.5	0.37	13.5/12.0	15.8/14.4	4.5/3.8	2.7/2.3	300	300	150	100
