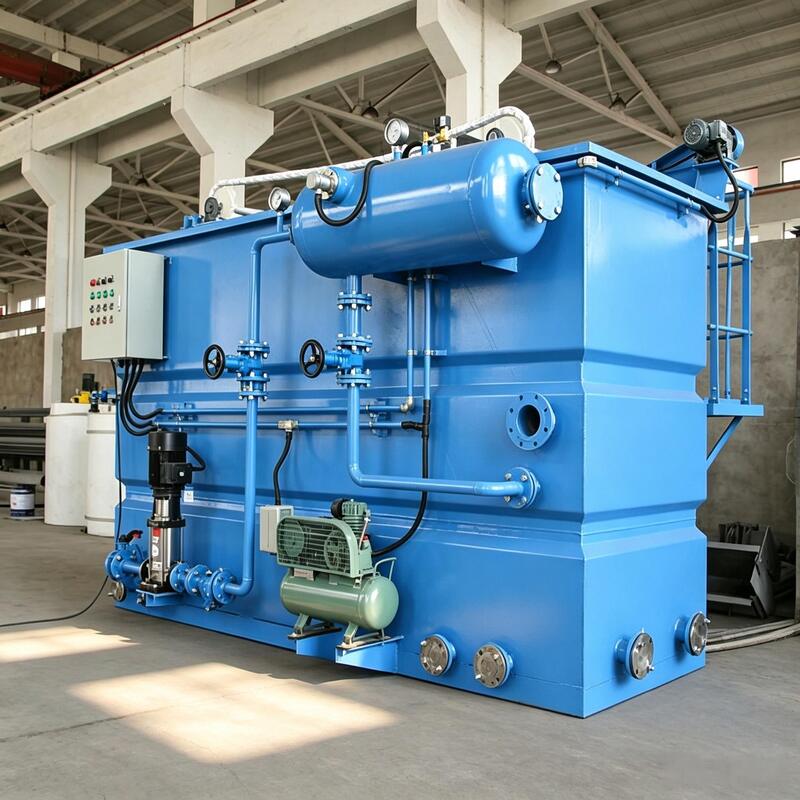

Name: DAF Dissolved Air Flotation System 10-150m3/h Stainless Steel Effluent Treatment Plant ETP Wastewater Equipment
Brand: SHANGHAI DUBHE ENVIRONMENTAL PROTECTION&TECHNOLOGY CO.,LTD
SKU: DAF-E10 to DAF-E150
Price: 54.00 USD
Availability: InStock

Home > products > Solid Liquid Separator >

DAF Dissolved Air Flotation System 10-150m3/h Stainless Steel Effluent Treatment Plant ETP Wastewater Equipment

ETP DAF Flotation System

Effluent Treatment DAF Clarifier

Compact DAF Wastewater Equipment

Place of Origin:

Guangdong, China

Brand Name:

BUBBLEAIR

Certification:

ISO 9001:2015, CE

Model Number:

DAF-E10 to DAF-E150

Request A Quote

DAF Dissolved Air Flotation System 10-150m3/h Stainless Steel Effluent Treatment Plant ETP Wastewater Equipment

Product Details

Model Range:

DAF-E10 To DAF-E150

Capacity:

10-150 M3/h

Hydraulic Load:

4~6 M3/(m2.h)

Dissolved Air Pump Power:

0.75~18.5 KW

Allowable Concentration Of Floating Matter:

Up To 3000 Mg/L

Solid Content:

30~100 G/L

Automatic Skimming:

Yes

Material:

Stainless Steel SS304/SS316

Main Function:

Effluent Treatment / Solid Liquid Separation

Application:

ETP Effluent Treatment Plant

Highlight:

ETP DAF Flotation System

Effluent Treatment DAF Clarifier

Compact DAF Wastewater Equipment

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

USD 8,000-100,000 / Set

Packaging Details

Export seaworthy plywood case, container loading

Delivery Time

20-35 days after deposit

Payment Terms

T/T,L/C,Western Union

Supply Ability

50 Sets per Month

DAF Dissolved Air Flotation Unit 10-150m3/h Stainless Steel Wastewater Treatment Equipment for WWTP Plants

Get Best Price

DAF Dissolved Air Flotation System 10-150m3/h Stainless Steel Effluent Treatment Plant ETP Wastewater Equipment

Get Best Price

Versatile DAF Dissolved Air Flotation System 10-150m3/h Stainless Steel WWTP Sewage Treatment Equipment

Get Best Price

DAF2 Dissolved Air Flotation Machine 10-150m³/h for WWTP Sludge Thickening Concentration

Get Best Price

Contact Now

Product Description

DAF Dissolved Air Flotation System for ETP Effluent Treatment Plant Product Description

This DAF dissolved air flotation system is purpose-built for ETP effluent treatment plants, providing reliable solid liquid separation for industrial effluents containing suspended solids, oil and grease. With a capacity of 10 to 150 m3/h and a hydraulic load of 4~6 m3/(m2.h), the compact system integrates automatic skimming and stainless steel construction for long service life. Effluent treatment projects in textile, dairy, poultry and petrochemical industries across Latin America, South America and South Africa benefit from its stable performance and cost-effective operation.

Features and Advantages

Purpose-built DAF system for ETP effluent treatment plants
Compact overall design with stable reliable operation
High hydraulic load: 4~6 m3/(m2.h) for high-volume applications
Automatic skimming with solid content up to 30~100 g/L
Allowable concentration of floating matter up to 3000 mg/L
Stainless steel construction, minimal maintenance required

Technical Parameters

Standard DAF / IDAF Dissolved Air Flotation Equipment Technical Data Sheet
Model	Capacity	Power (kW)					Dimension (m)				Nozzle list (DN)
DAF/ IDAF	m³/h	Recycle pump	Air compressor	Skimmer	IDAF Fast mixer	IDAF Slow mixer	DAF L₁/L₂	IDAF L₁/L₂	W₁/W₂	H₁/H₂	Inlet (a)	Outlet (b)	Sludge outlet (c)	Vent nozzle (d)
003	~3	0.75	0.55	0.12	0.37	0.25	3.6/2.8	4.1/3.2	2.4/1.2	2.2/1.7	50	50	80	80
005	~5	1.1	0.55	0.12	0.37	0.25	3.8/3.0	4.4/3.6	2.4/1.2	2.2/1.7	80	80	80	80
010	~10	4	0.55	0.12	0.37	0.25	4.3/3.3	5.0/4.0	2.9/1.7	2.4/1.9	100	100	100	100
020	~20	4	0.75	0.12	0.37	0.25	5.7/4.8	6.2/5.2	3.2/2.2	2.4/1.9	150	100	100	100
030	~30	5.5	0.75	0.12	0.37	0.25	6.5/5.5	7.7/6.7	3.2/2.2	2.4/1.9	150	150	150	100
040	~40	5.5	0.75	0.12	0.75	0.37	6.5/5.5	7.7/6.7	3.6/2.7	2.4/1.9	200	200	150	100
050	~50	7.5	0.75	0.12	0.75	0.37	7.3/6.3	8.8/7.8	3.6/2.7	2.4/1.9	200	200	150	100
080	~80	11	1.5	0.12	1.5	0.37	8.9/7.6	10.6/9.2	4.4/3.4	2.7/2.3	250	200	150	100
100	~100	11	1.5	0.12	1.5	0.37	10.8/9.4	13.2/11.8	4.4/3.4	2.7/2.3	300	250	150	100
120	~120	11	2.2	0.12	1.5	0.37	11.7/10.4	14.2/12.8	4.4/3.4	2.7/2.3	300	250	150	100
150	~150	15	3	0.12	1.5	0.37	13.5/12.0	15.8/14.4	4.5/3.8	2.7/2.3	300	300	150	100
