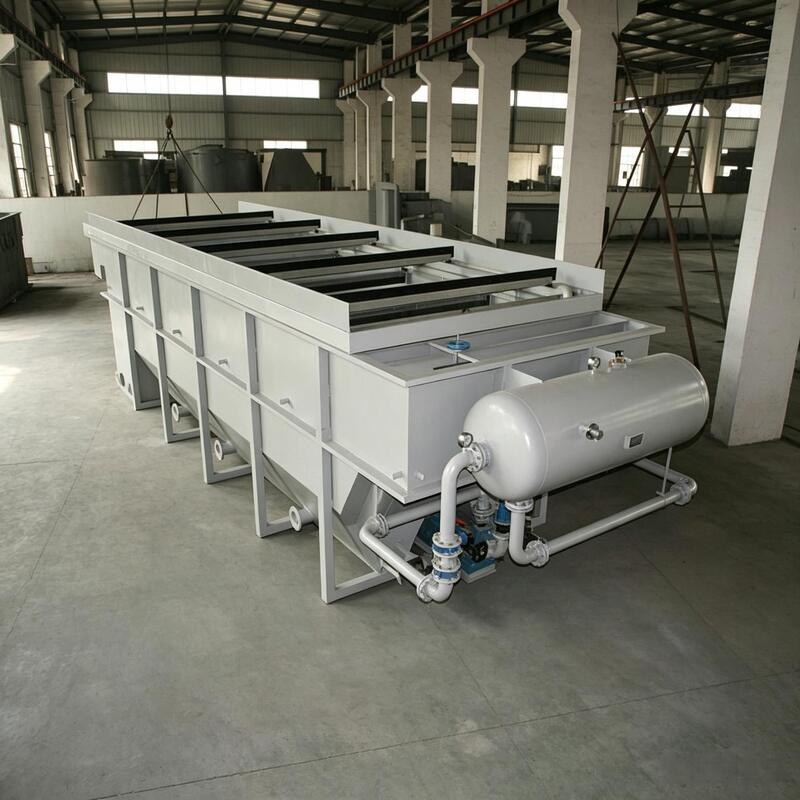

Name: Solid Liquid Separation Machine DAF Dissolved Air Flotation 10-150m3/h Stainless Steel WWTP ETP
Brand: SHANGHAI DUBHE ENVIRONMENTAL PROTECTION&TECHNOLOGY CO.,LTD
SKU: DAF-E10 to DAF-E150
Price: 54.00 USD
Availability: InStock

Home > products > Solid Liquid Separator >

Solid Liquid Separation Machine DAF Dissolved Air Flotation 10-150m3/h Stainless Steel WWTP ETP

Solid Liquid Separation Machine

DAF Dissolved Air Flotation Unit

WWTP ETP Wastewater Treatment

Place of Origin:

Wuxi, China

Brand Name:

BUBBLEAIR

Certification:

ISO 9001:2015, CE

Model Number:

DAF-E10 to DAF-E150

Request A Quote

Solid Liquid Separation Machine DAF Dissolved Air Flotation 10-150m3/h Stainless Steel WWTP ETP

Product Details

Model Range:

DAF-E10 To DAF-E150

Capacity:

10-150 M3/h

Hydraulic Load:

4~6 M3/(m2.h)

Dissolved Air Pump Power:

0.75~18.5 KW

Skimming Solid Content:

30~100 G/L

Max Floating Matter Concentration:

3000 Mg/L

Material:

Stainless Steel SS304/SS316L

Application:

WWTP / ETP Effluent Treatment

Highlight:

Solid Liquid Separation Machine

DAF Dissolved Air Flotation Unit

WWTP ETP Wastewater Treatment

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

USD 8,000-100,000 / Set

Packaging Details

Export seaworthy plywood case, container loading

Delivery Time

20-35 days after deposit

Payment Terms

T/T,L/C,Western Union

Supply Ability

50 Sets per Month

DAF Dissolved Air Flotation Unit 10-150m3/h Stainless Steel Wastewater Treatment Equipment for WWTP Plants

Get Best Price

DAF Dissolved Air Flotation System 10-150m3/h Stainless Steel Effluent Treatment Plant ETP Wastewater Equipment

Get Best Price

Versatile DAF Dissolved Air Flotation System 10-150m3/h Stainless Steel WWTP Sewage Treatment Equipment

Get Best Price

DAF2 Dissolved Air Flotation Machine 10-150m³/h for WWTP Sludge Thickening Concentration

Get Best Price

Contact Now

Product Description

Solid Liquid Separation Machine DAF Dissolved Air Flotation System

Solid Liquid Separation Machine | DAF Dissolved Air Flotation for WWTP & ETP

Product Overview

This solid liquid separation machine applies the dissolved air flotation (DAF) process to remove suspended solids, oil and grease from industrial and municipal wastewater. Engineered for WWTP and ETP projects, it delivers a stable 10-150 m3/h treatment capacity with automatic skimming, making it an efficient front-end solid liquid separation solution for Latin America, South America and South Africa.

Features & Advantages

Efficient solid liquid separation through micro-bubble dissolved air flotation
Purpose-built DAF system for WWTP and ETP effluent treatment plants
High hydraulic load 4~6 m3/(m2.h) for high-volume applications
Automatic skimming with solid content up to 30~100 g/L
Allowable concentration of floating matter up to 3000 mg/L
Stainless steel construction, minimal maintenance required

Applications

Industrial WWTP solid liquid separation
ETP effluent treatment plants
Textile, dairy, poultry and petrochemical wastewater
Oil and grease removal
Slaughterhouse and food processing wastewater

Technical Parameters

Standard DAF / IDAF Dissolved Air Flotation Equipment Technical Data Sheet

Model	Capacity (m3/h)	Recycle pump (kW)	Air compressor (kW)	Skimmer (kW)	IDAF fast mixer (kW)	IDAF slow mixer (kW)	DAF L1/L2 (m)	IDAF L1/L2 (m)	W1/W2 (m)	H1/H2 (m)	Inlet (a)	Outlet (b)	Sludge (c)	Vent (d)
010	~10	4	0.55	0.12	0.37	0.25	4.3/3.3	5.0/4.0	2.9/1.7	2.4/1.9	100	100	100	100
020	~20	4	0.75	0.12	0.37	0.25	5.7/4.8	6.2/5.2	3.2/2.2	2.4/1.9	150	100	100	100
030	~30	5.5	0.75	0.12	0.37	0.25	6.5/5.5	7.7/6.7	3.2/2.2	2.4/1.9	150	150	150	100
040	~40	5.5	0.75	0.12	0.75	0.37	6.5/5.5	7.7/6.7	3.6/2.7	2.4/1.9	200	200	150	100
050	~50	7.5	0.75	0.12	0.75	0.37	7.3/6.3	8.8/7.8	3.6/2.7	2.4/1.9	200	200	150	100
080	~80	11	1.5	0.12	1.5	0.37	8.9/7.6	10.6/9.2	4.4/3.4	2.7/2.3	250	200	150	100
100	~100	11	1.5	0.12	1.5	0.37	10.8/9.4	13.2/11.8	4.4/3.4	2.7/2.3	300	250	150	100
120	~120	11	2.2	0.12	1.5	0.37	11.7/10.4	14.2/12.8	4.4/3.4	2.7/2.3	300	250	150	100
150	~150	15	3	0.12	1.5	0.37	13.5/12.0	15.8/14.4	4.5/3.8	2.7/2.3	300	300	150	100

Packaging & Delivery

Export seaworthy plywood case with container loading; delivery within 20-35 days after deposit. Shipping support for Latin America, South America and South Africa.

Need a quotation for your wastewater project?

Send us your influent flow, suspended solids and target discharge standard. Contact us today for a tailored DAF solution.
