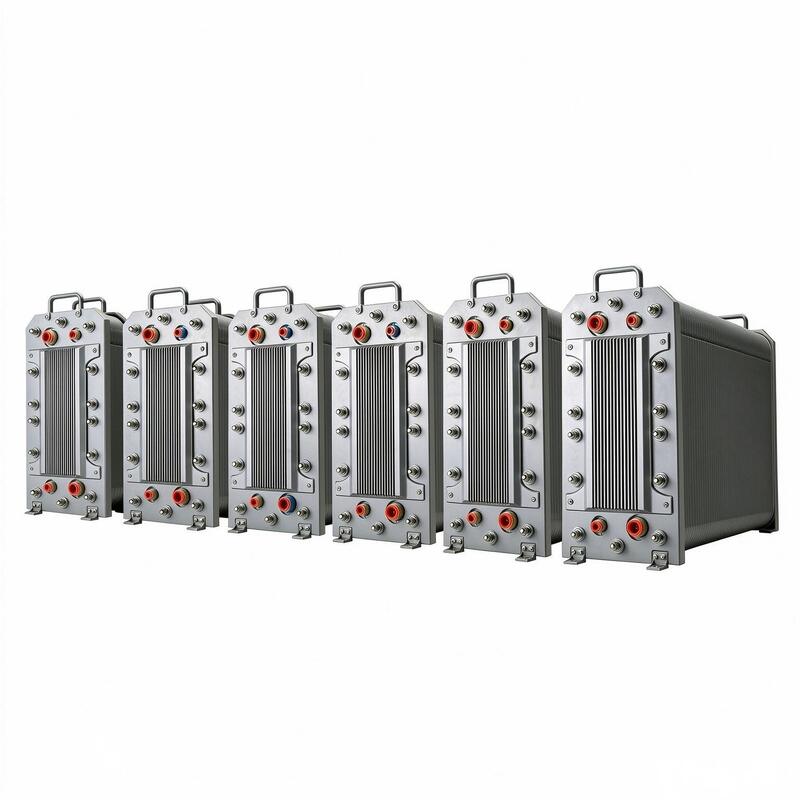

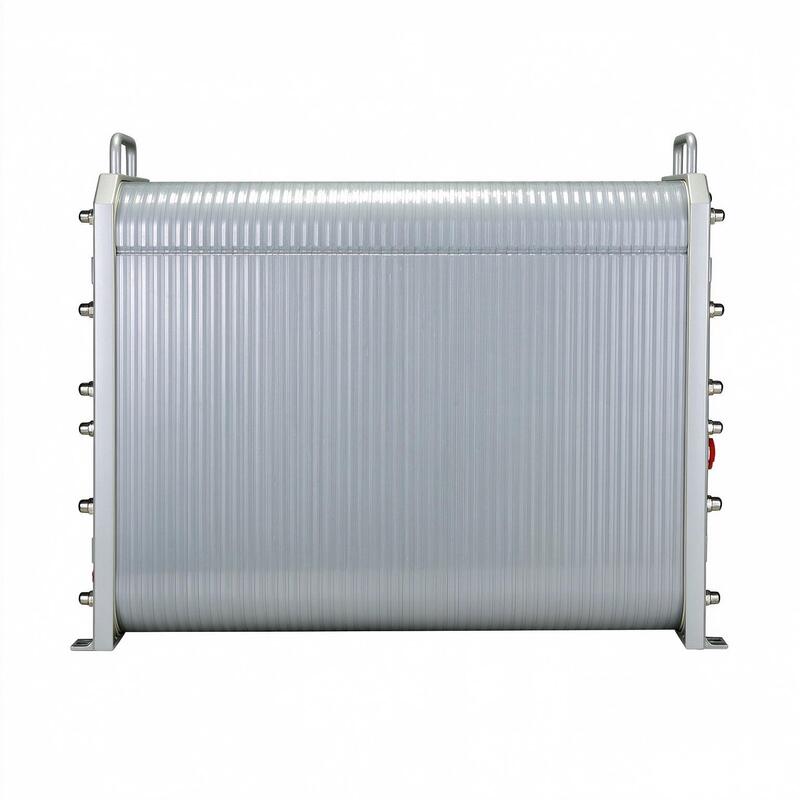

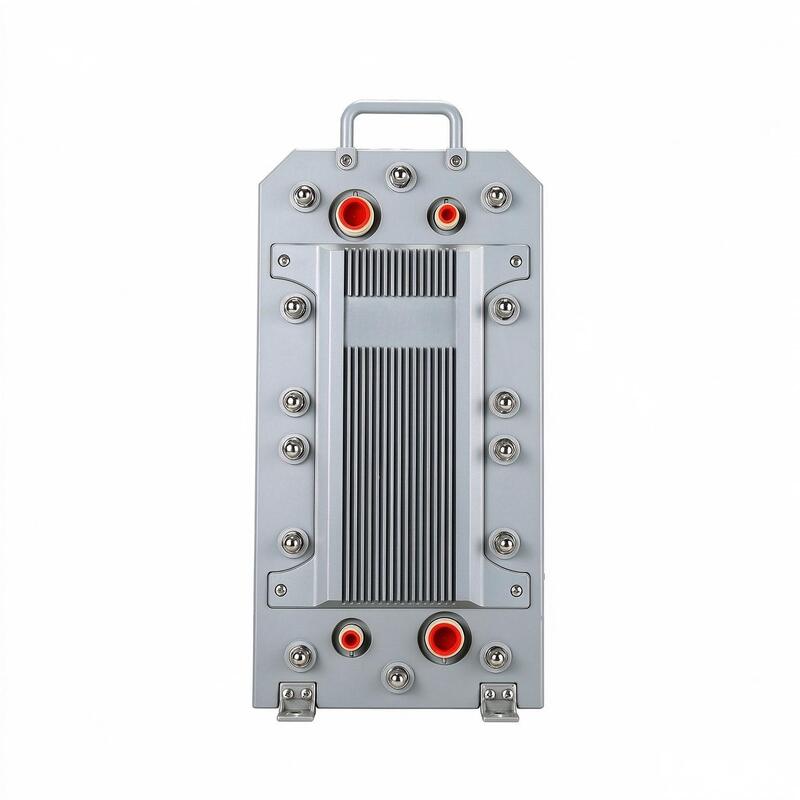

Name: Electrodeionization EDI Module Designed for Continuous Water Purification and High Ion Selectivity in Industrial Applications
Brand: SHANGHAI DUBHE ENVIRONMENTAL PROTECTION&TECHNOLOGY CO.,LTD
SKU: GF-DF
Price: 325 USD
Availability: InStock

Home > products > EDI Module >

Electrodeionization EDI Module Designed for Continuous Water Purification and High Ion Selectivity in Industrial Applications

Continuous EDI Module

Industrial EDI Module

Electrodeionization EDI Module for Industrial

Place of Origin:

Jiangsu, China

Brand Name:

DUBHE

Certification:

ISO 9001:2015

Model Number:

GF-DF

Request A Quote

Electrodeionization EDI Module Designed for Continuous Water Purification and High Ion Selectivity in Industrial Applications

Product Details

Maximum Flow Rate:

0.67-10 M3/hr

Standard Flow Rate:

0.5-8 M3/hr

Minmum Flow Rate:

0.22-3.5 M3/hr

Recovery Rate:

9 0 - 9 5%

Silicon Removal Rate:

> 90%

Chloride Removal Rate:

99%

Service Life:

More Than 80,000 Hours.

Highlight:

Continuous EDI Module

Industrial EDI Module

Electrodeionization EDI Module for Industrial

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

USD 325/Set

Packaging Details

Wooden Package

Delivery Time

15-25 working days after order confirmation

Payment Terms

T/T,L/C,Western Union

Supply Ability

5000 Cubic Meters per Month

WWTP ETP Wastewater Reuse EDI Module 10 M3/h 99% Chloride Removal Industrial Desalination System

Get Best Price

Contact Now

Product Description

CEDl MODULE SERIES

CEDI | CEDI Electrodeionization for WWTP & ETP

Product Overview

DUBHE Industrial grade CEDI module offer higher reliability and better desalination performance than conventional film blocks. Using a newly designed ion exchange membrane and patented flow channel technology, the desalination efficiency and antioxidant capacity aresignificantly ahead of similar products. Over the years, the research and development of ion exchange membrane technology has been insisted on as the core, relying on powerful ion exchange application technology, and the performance limits of various series of products have been constantly refreshed. Great improvements have been made to the ion exchange membrane on the basis of the traditional process, so the full range of CEDI modules have very excellent chemical cleaning resistance and high ion selectivity. Currently, it is one of the few CEDI manufacturers with independent research and development and design of ion membranes.

Features & Advantages

Wide PH chemical cleaning,high reliability,long Life design.
CPVC production of runner plate frame, high Weather resistance,long life design.
Double O-ring sealing technology for double Injection to prevent leakage.
2 in2 out design,can directly replace the Traditional ordinary runner products.
Specially designed ion exchange membrane, Extremely high ion selectivity, can achieve a large Flow in a limited volume to produce high purity water.
Designed service life of more than 50,000 hours.

Applications

Precision Optics
Microelectronics
Semiconductors
Advanced Laboratories (Ultrapure Substance Analysis, Trace Substance Analysis)
General industrial desalted water, high purity water

Technical Specifications

(General industrial desalted water, high purity water)

Item	GF - MK30 - 5	GF - MK40 - 5	GF - MK50 - 5	GF - MK60 - 5	GF - MK70 - 5
DC Voltage(V,DC)	0 -400	0 -400	0 -400	0 -400	0 -400
DC Current(A,DC )	2.0-5.0	2.0-5.0	2.0-5.0	2.0-5.0	2.0-5.0
Recommended feed (PH)	8.0 ±0.25	8.0 ±0.25	8 .0 ±0.25	8 .0 ±0.25	8 .0 ±0.25
Feed pressure(bar )	1.4-7	1.4-7	1.4-7	1.4-7	1.4-7
Operating temperature(℃)	5-45	5-45	5-45	5-45	5-45
Normal flow pressure Difference(bar)	1.4-3.0	1.4-3.0	1.4-3.0	1.4-3.0	1.4-3.0
Flow rate( m 3 / h )	Max:3 . 3 Standard:3 .0 Min:1 . 5	Max:4 .4 Standard:4 .0 Min:2 .0	Max::5. 5 Standard: 5 .0 Min :2. 5	Max:6 . 6 Standard:6 .0 Min:3 .0	Max:8 .0 Standard:7 .0 Min:3 . 5
Recovery rate(%)	90-95	90-95	90-95	90-95	90-95
Polar water flow( L/hr)	80 - 120	80- 120	80 - 120	80 - 120	80 - 120
Water production resistivity ( MΩ .cm )	≥ 16	≥ 16	≥ 16	≥ 16	≥ 15
TOC Removal Rate (Depending on feed water)(PPM )	>90	>90	>90	>90	>90
Silica (SiO2) Removal Rate (Depending on feed water)	90 -99.0	90-99.0	90 -99.0	90 -99.0	90 -99.0
Na+ Removal Rate	>99%	>99%	>99%	>99%	>99%
CL- Removal Rate	>99%	>99%	>99%	>99%	>99%
Dimensions (LWH)(mm)	570315608	730315608	810315608	865315608	865315608
Fixed center distance ( mm )	Crosswise:215 Portrait:430	Crosswise:215 Portrait: 590	Crosswise:215 Portrait: 670	Crosswise:215 Portrait: 72	Crosswise:215 Portrait: 725
Operating weight ( KG)	90	121	136	147	156

(semiconductor grade boron removal)

Item	GF- UPW - B10	GF- UPW - B20	GF- UPW - B30	GF- UPW - B40	GF- UPW - B50
DC Voltage(V,DC)	0 -400	0 -400	0 -400	0 -400	0 -400
DC Current(A,DC )	2 .0-5.0	2 .0-5.0	2 .0-5.0	2 .0-5.0	2 .0-5.0
Recommended feed(PH)	7 .5-9.0	7 .5-9.0	7 .5-9.0	7 .5-9.0	7 .5-9.0
Feed pressure(bar )	2 .0-7	2 .0-7	2 .0-7	2 .0-7	2 .0-7
Operating temperature (℃)	20 -45	20 -45	20 -45	20 -45	20 -45
Normal flow pressure	1 .4-2 .8	1 .4-2 .8	1 .4-2 .8	1 .4-2 .8	1 .4-2 .8
Flow rate( m3 /h )	Max :1 . 2 Standard :1 .0 Min :0 .4	Max :2 . 2 Standard :2 .0 Min :1 . 2	Max :3 . 3 Standard :3 .0 Min :1 . 6	Max :4 .4 Standard :4 .0 Min :2 .0	Max :5 . 5 Standard :5 .0 Min :2 .4
Recovery rate(%)	90-95	90-95	90-95	90-95	90-95
Polar water flow ( L/hr)	80 - 120	80 - 120	80 - 120	80 - 120	80 - 120
Water production resistivity (MΩ.cm )	≥ 17	≥ 17	≥ 17	≥ 17	≥ 17
TOC Removal Rate (Depending on feed water)(PPM)	>95%	>95%	>95%	>95%	>95%
Silica (SiO2) Removal Rate (Depending on feed water)	90 -99.0	90 -99.0	90 -99.0	90 -99.0	90 -99.0
Boron Removal Rate %	90 -99.0	90 -99.0	90 -99.0	90 -99.0	90 -99.0
Na+ Removal Rate	>99 .9 %	>99 .9 %	>99 .9 %	>99 .9 %	>99 .9 %
CL- Removal Rate	>99 .9 %	>99 .9 %	>99 .9 %	>99 .9 %	>99 .9 %
Dimensions(LW H)(mm)	363 * 315* 608	497 * 315 * 608	630 * 315 * 608	710 * 315 * 608	830 * 315 * 608
Fixed center distance ( mm )	Crosswise:215 Portrait:243	Crosswise:215 Portrait:377	Crosswise:215 Portrait:510	Crosswise:215 Portrait :590	Crosswise:215 Portrait:710
Operating weight ( KG)	52	78	104	119	142

Selection Parameters

Model	(m³/h)MAavimumElowRate	(m³/h)StandardFlowRate	(m³/h)MinFlowRate	(mm)Dimensions (LWH)	(mm)FixedCenterDistanceW1L1		(KG)ProductNetWeight
GF-DF05	0.67	0.50	0.22	202315660	215	172	41
GF-DF10	1.65	1.10	0.55	280315660	215	245	54
GF-DF20	3.10	2.00	1.10	387315660	215	357	76
GF-DF30	5.10	3.30	1.65	572315660	215	540	105
GF-DF50	7.67	5.10	2.55	785315660	215	757	150
GF-DF80	10.00	8.00	3.50	918315660	215	893	176

Need a quotation for your EDI project?

Send us your reactor volume, COD/NH4-N load and target effluent standard. Contact us today for a EDI solution.
