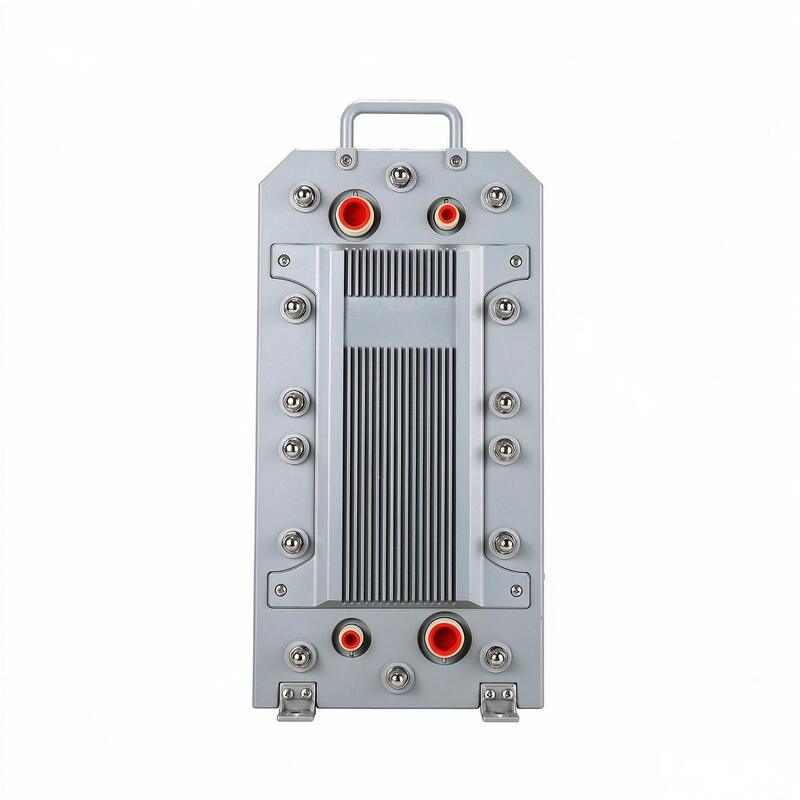

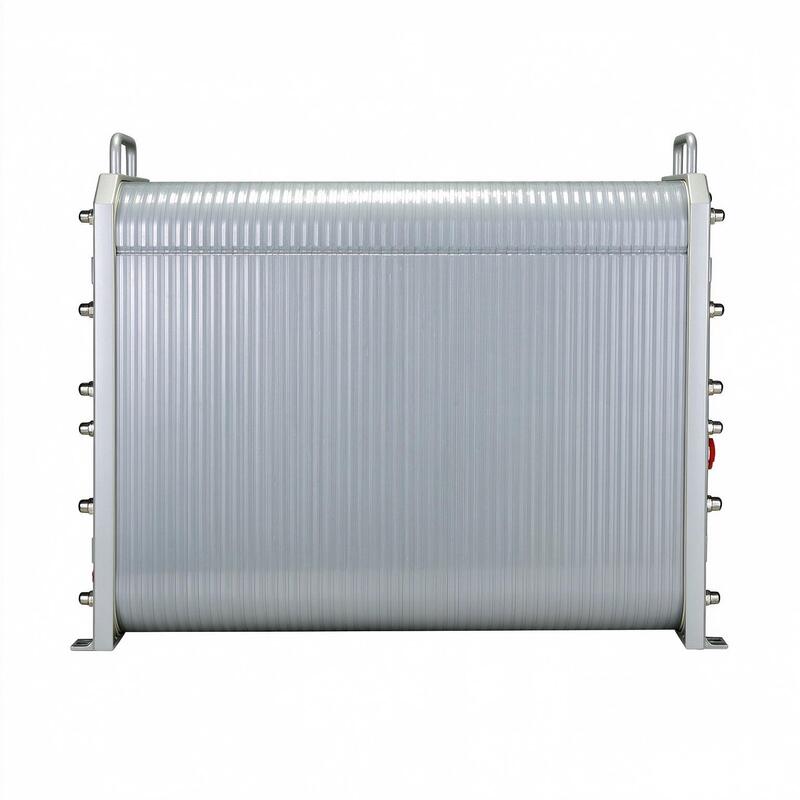

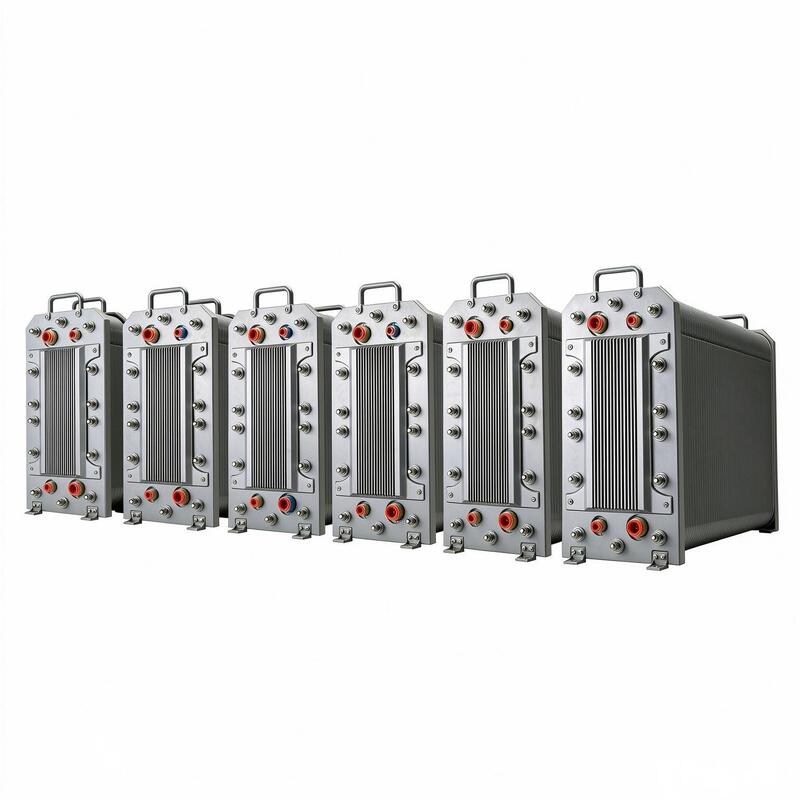

Name: WWTP ETP Wastewater Reuse EDI Module 10 M3/h 99% Chloride Removal Industrial Desalination System
Brand: SHANGHAI DUBHE ENVIRONMENTAL PROTECTION&TECHNOLOGY CO.,LTD
SKU: GF-DF / GF-MK Series
Price: 325 USD
Availability: InStock

Home > products > EDI Module >

WWTP ETP Wastewater Reuse EDI Module 10 M3/h 99% Chloride Removal Industrial Desalination System

ETP Wastewater Reuse EDI Module

Electrodeionization EDI Module

Industrial Desalination System EDI Module

Place of Origin:

Jiangsu, China

Brand Name:

DUBHE

Certification:

ISO 9001:2015

Model Number:

GF-DF / GF-MK Series

Request A Quote

WWTP ETP Wastewater Reuse EDI Module 10 M3/h 99% Chloride Removal Industrial Desalination System

Product Details

Product Type:

Electrodeionization (CEDI) Module

Maximum Flow Rate:

0.67-10 M3/hr

Standard Flow Rate:

0.5-8 M3/hr

Minimum Flow Rate:

0.22-3.5 M3/hr

Recovery Rate:

90-95%

Silicon Removal Rate:

> 90%

Chloride Removal Rate:

99%

Service Life:

More Than 80,000 Hours

Operating Temperature:

5-45 C

Feed Pressure:

1.4-7 Bar

Recommended Feed PH:

8.0 +/- 0.25

DC Voltage:

0-400 V DC

DC Current:

2.0-5.0 A

Highlight:

ETP Wastewater Reuse EDI Module

Electrodeionization EDI Module

Industrial Desalination System EDI Module

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

USD 325 / Set

Packaging Details

Seaworthy wooden case with shock-proof internal support

Delivery Time

15-25 working days after order confirmation

Payment Terms

T/T,L/C,Western Union

Supply Ability

500 Set per Month

WWTP ETP Wastewater Reuse EDI Module 10 M3/h 99% Chloride Removal Industrial Desalination System

Get Best Price

Contact Now

Product Description

CEDI MODULE FOR WWTP & ETP

Wastewater reuse and effluent polishing | Latin America, South America, South Africa

Product Overview

This DUBHE CEDI module is built for WWTP and ETP duty, where effluent polishing and water reuse targets require dissolved ion removal after biological treatment and membrane filtration. Applied as the final demineralisation stage after ultrafiltration and reverse osmosis, the module upgrades secondary effluent to reuse quality for cooling tower make-up, boiler feed, process rinse and irrigation, cutting both freshwater intake and discharge volume.

The stack tolerates wide pH chemical cleaning, so plants can apply standard CIP procedures without damaging the ion exchange membrane, and the 90-95% recovery rate keeps brine discharge low in water-scarce regions.

Advantages for WWTP & ETP Projects

Wide pH range chemical cleaning tolerance, high reliability and long life design.
CPVC runner plate frame with high weather resistance, built for outdoor and containerised plants.
Double O-ring sealing with double injection moulding prevents internal and external leakage.
2 in 2 out port design, a direct replacement for conventional ordinary runner stacks.
Specially developed ion exchange membrane with extremely high ion selectivity in a compact volume.
Designed service life of more than 80,000 hours with 90-95% water recovery.
Effluent reuse without chemical regeneration, reducing total dissolved solids discharge.
Chemical cleaning tolerance suited to fouling-prone secondary effluent duty.
Modular design for capacity expansion in staged ETP upgrades.

Typical Integration Points

Secondary effluent → UF → RO → CEDI → cooling tower make-up and boiler feed reuse.
Zero liquid discharge (ZLD) pre-concentration trains.
Industrial park ETP upgrade for boiler feed and process water reuse.
Mining, steel and textile ETP polishing for discharge compliance.

Technical Specifications

(General industrial desalted water, high purity water)

Item	GF - MK30 - 5	GF - MK40 - 5	GF - MK50 - 5	GF - MK60 - 5	GF - MK70 - 5
DC Voltage (V,DC)	0 -400	0 -400	0 -400	0 -400	0 -400
DC Current (A,DC )	2.0-5.0	2.0-5.0	2.0-5.0	2.0-5.0	2.0-5.0
Recommended feed (PH)	8.0 ±0.25	8.0 ±0.25	8 .0 ±0.25	8 .0 ±0.25	8 .0 ±0.25
Feed pressure (bar)	1.4-7	1.4-7	1.4-7	1.4-7	1.4-7
Operating temperature(℃)	5-45	5-45	5-45	5-45	5-45
Normal flow pressure Difference(bar)	1.4-3.0	1.4-3.0	1.4-3.0	1.4-3.0	1.4-3.0
Flow rate (m3/h)	Max:3 . 3 Standard:3 .0 Min:1 . 5	Max:4 .4 Standard:4 .0 Min:2 .0	Max::5. 5 Standard: 5 .0 Min :2. 5	Max:6 . 6 Standard:6 .0 Min:3 .0	Max:8 .0 Standard:7 .0 Min:3 . 5
Recovery rate(%)	90-95	90-95	90-95	90-95	90-95
Polar water flow( L/hr)	80 - 120	80- 120	80 - 120	80 - 120	80 - 120
Water production resistivity ( MΩ .cm )	≥ 16	≥ 16	≥ 16	≥ 16	≥ 15
TOC Removal Rate (Depending on feed water)(PPM )	>90	>90	>90	>90	>90
Silica (SiO2) Removal Rate (Depending on feed water)	90 -99.0	90-99.0	90 -99.0	90 -99.0	90 -99.0
Na+ Removal Rate	>99%	>99%	>99%	>99%	>99%
CL- Removal Rate	>99%	>99%	>99%	>99%	>99%
Dimensions (LWH)(mm)	570315608	730315608	810315608	865315608	865315608
Fixed center distance ( mm )	Crosswise:215 Portrait:430	Crosswise:215 Portrait: 590	Crosswise:215 Portrait: 670	Crosswise:215 Portrait: 72	Crosswise:215 Portrait: 725
Operating weight ( KG)	90	121	136	147	156

(semiconductor grade boron removal)

Item	GF- UPW - B10	GF- UPW - B20	GF- UPW - B30	GF- UPW - B40	GF- UPW - B50
DC Voltage(V,DC)	0 -400	0 -400	0 -400	0 -400	0 -400
DC Current(A,DC )	2 .0-5.0	2 .0-5.0	2 .0-5.0	2 .0-5.0	2 .0-5.0
Recommended feed(PH)	7 .5-9.0	7 .5-9.0	7 .5-9.0	7 .5-9.0	7 .5-9.0
Feed pressure(bar )	2 .0-7	2 .0-7	2 .0-7	2 .0-7	2 .0-7
Operating temperature (℃)	20 -45	20 -45	20 -45	20 -45	20 -45
Normal flow pressure	1 .4-2 .8	1 .4-2 .8	1 .4-2 .8	1 .4-2 .8	1 .4-2 .8
Flow rate( m3 /h )	Max :1 . 2 Standard :1 .0 Min :0 .4	Max :2 . 2 Standard :2 .0 Min :1 . 2	Max :3 . 3 Standard :3 .0 Min :1 . 6	Max :4 .4 Standard :4 .0 Min :2 .0	Max :5 . 5 Standard :5 .0 Min :2 .4
Recovery rate(%)	90-95	90-95	90-95	90-95	90-95
Polar water flow ( L/hr)	80 - 120	80 - 120	80 - 120	80 - 120	80 - 120
Water production resistivity (MΩ.cm )	≥ 17	≥ 17	≥ 17	≥ 17	≥ 17
TOC Removal Rate (Depending on feed water)(PPM)	>95%	>95%	>95%	>95%	>95%
Silica (SiO2) Removal Rate (Depending on feed water)	90 -99.0	90 -99.0	90 -99.0	90 -99.0	90 -99.0
Boron Removal Rate %	90 -99.0	90 -99.0	90 -99.0	90 -99.0	90 -99.0
Na+ Removal Rate	>99 .9 %	>99 .9 %	>99 .9 %	>99 .9 %	>99 .9 %
CL- Removal Rate	>99 .9 %	>99 .9 %	>99 .9 %	>99 .9 %	>99 .9 %
Dimensions(LW H)(mm)	363 * 315* 608	497 * 315 * 608	630 * 315 * 608	710 * 315 * 608	830 * 315 * 608
Fixed center distance ( mm )	Crosswise:215 Portrait:243	Crosswise:215 Portrait:377	Crosswise:215 Portrait:510	Crosswise:215 Portrait :590	Crosswise:215 Portrait:710
Operating weight ( KG)	52	78	104	119	142

Selection Parameters

Model	(m³/h)MAavimumElowRate	(m³/h)StandardFlowRate	(m³/h)MinFlowRate	(mm)Dimensions (LWH)	(mm)FixedCenterDistanceW1L1		(KG)ProductNetWeight
GF-DF05	0.67	0.50	0.22	202315660	215	172	41
GF-DF10	1.65	1.10	0.55	280315660	215	245	54
GF-DF20	3.10	2.00	1.10	387315660	215	357	76
GF-DF30	5.10	3.30	1.65	572315660	215	540	105
GF-DF50	7.67	5.10	2.55	785315660	215	757	150
GF-DF80	10.00	8.00	3.50	918315660	215	893	176

Export Markets & Delivery

DUBHE CEDI modules are exported regularly to Latin America, South America and South Africa, including Brazil, Chile, Peru, Colombia, Mexico, Argentina and the Republic of South Africa. Standard export packing is a seaworthy wooden case with shock-proof internal support; documents, wiring diagrams and commissioning guidance are supplied with every shipment.

Seaworthy wooden case packing, suitable for long ocean freight and inland transport.
Delivery time 15-25 working days after order confirmation.
Payment terms: T/T, L/C, Western Union.
Rated flow selection from 0.5 M3/h to 8 M3/h standard, up to 10 M3/h maximum per module.

Upgrading your ETP for water reuse?

Share your effluent quality, reuse target and recovery expectation. We will propose the CEDI configuration and full water train. Contact us today.
