Place of Origin:
CHINA
Brand Name:
DUBHE
Certification:
ISO
Model Number:
TS-120T
Contact Us

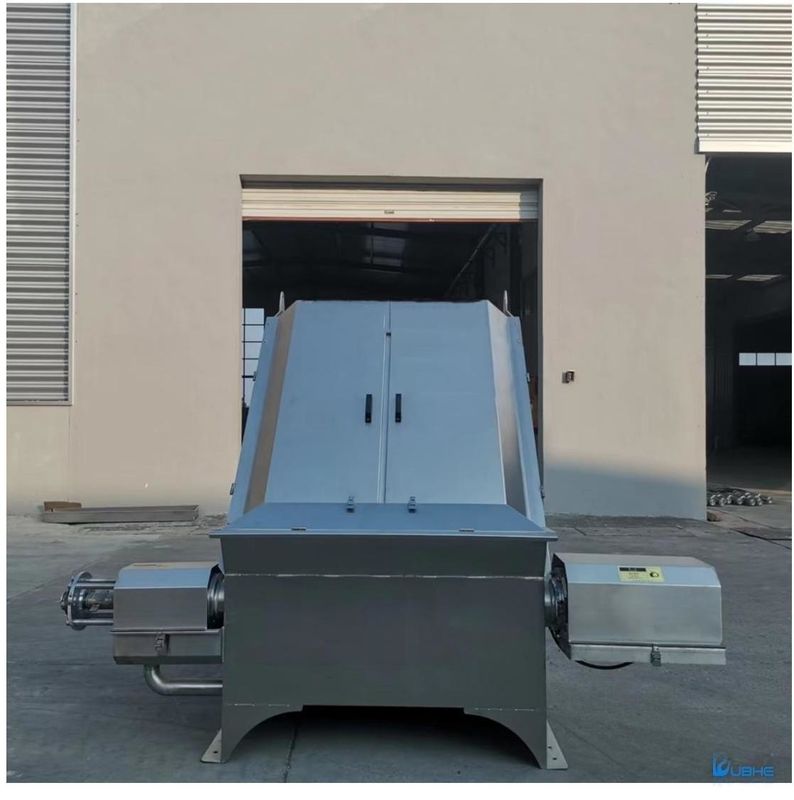

1. The main body of the water-cut solid-liquid separator is a stainless steel plane filter screen made of a wedge-shaped steel rod. The wastewater to be treated is evenly distributed on the inclined screen surface through the overflow weir. Because the surface gap of the screen is small and smooth, the back gap is large, the drainage is smooth, and it is not easy to block; The solid material is intercepted, and the filtered water flows out from the gap of the sieve plate. At the same time, under the hydraulic effect, the solid material is pushed into the spiral groove at the lower end of the sieve plate, and the screw is pushed forward to the extrusion section for dehydration again. The dehydrated dry slag is discharged from the discharge port, to achieve the purpose of solid-liquid separation.
2. The water cut net type slid-liquid separator can effectively reduce the concentration of suspended solids in water and reduce the treatment load of subsequent processes. At the same time, it is also used for solid-liquid separation and recovery of useful substances in industrial production. it is excellent equipment for filtering or recovering solid or colloidal substances such as suspended solids, floating solids and precipitates.
1. The prophase filtration uses the gravity of the water flow itself to work without energy consumption; the extrusion part has low power and low energy consumption.
2. The water treatment capacity of a single unit is large.
3. It is not easy to block and easy to clean (the whole machine works automatically and has an automatic net washing function).
4. The whole machine is made of stainless steel with high mechanical strength, no deformation and long service life.
5. Automatic detection, full water level start-up, filtration, press, intermediate washing, stop washing and filtration.
6. Gear type reverse cleaning mechanism, no cable electrical parts and other consumables.s renewable use.
1. It can be used in the treatment of small industrial wastewater, such as papermaking, slaughtering, leather, sugar making, winemaking, kitchen waste, textile, printing and dyeing, petrochemical and other industries.
2. It is used for recycling fiber, slag and other useful substances in papermaking, alcohol, starch, food processing and other industries.
3. It is used for sludge or river desilting pretreatment.
1. It can be directly put into the fish pond for fish feed.
2. It can be used as fertilizer for flowers and trees.
3. It can be sold to the manufacturer of organic fertilizer or produced by itself.
4. It can be used as raw material for biogas production.
