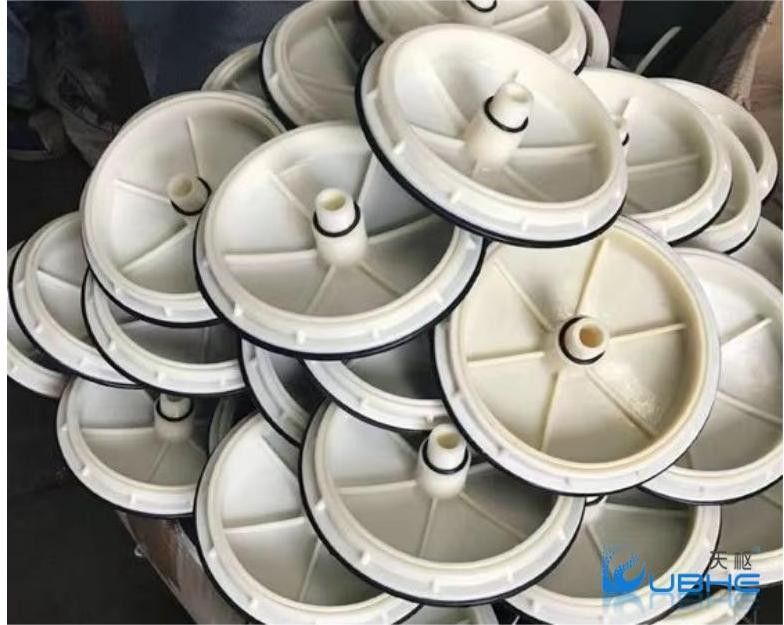

Micro Bubble Disc Air Diffuser Aerator Disc

Micro Bubble Disc Air Diffuser Aerator Disc

micro bubble disc air diffuser

disc air diffuser aerator

aeration disc diffuser

Place of Origin:

CHINA

Brand Name:

DUBHE

Certification:

ISO

Model Number:

DUDS-7

Contact Us

Request A Quote
Product Details
Design Air Flow Range(Sm³/hr):
1.5-3
Service Area(㎡):
0.3-0.65
SOTE(%):
22-40
SOTR(kg O2/m3/hr):
0.13-0.4
Bubble Size(mm):
1-2
Sevice Life(year):
≥5
Run Flow(m3/hr):
1—2
Membrane Thickness(mm):
2
Payment & Shipping Terms
Product Description

Fine Bubble Disc Diffuser With EPDM Membrane Cone Diffuser—DUDS-7





Micro Bubble Disc Air Diffuser Aerator Disc 0
DESCRIPTION

Micro Bubble Disc Air Diffuser Aerator Disc 1

The Dubhe DUDH Disc Diffuser is a state-of-the-art product designed for maximum durability and reliability in wastewater treatment applications. The DUDH-7 model, in particular, stands out for its exceptional performance and longevity.



The disc diffuser is a crucial component in the aeration process of wastewater treatment plants. It facilitates the transfer of oxygen from the air to the water, promoting the growth of beneficial microorganisms that break down organic matter. The Dubhe DUDH-7 excels in this role, providing efficient oxygen transfer while maintaining a high level of durability.



One of the key features of the DUDH-7 disc diffuser is its construction. It is made from high-quality materials that are resistant to corrosion, chemicals, and harsh environmental conditions. This ensures that the diffuser can withstand the challenging operating conditions typically found in wastewater treatment plants.



Micro Bubble Disc Air Diffuser Aerator Disc 0
FEATURES

High aeration effectiveness

The aeration process involves bringing together water and oxygen for oxidation and dissolution of metals and dissolution of gases. With our fine bubble disc diffuser and fine bubble tube diffuser, it makes the process more effective.

 High oxygen transfer efficiency (OTE)

Fine bubble diffusers generally work to treat water waste through OTE. However, with our products, it helps for a more enhanced process considering its specifications.

Energy efficient

Fine bubble diffusers have long been introduced opposite the coarse diffusers. One of the features of our product is its energy-saving mechanism.
That is, it needs lesser energy for it to work. In effect, you will benefit from energy conservation.

System versatility

We have fine bubble diffusers that suit different water waste management systems. These diffusers are manufactured to ensure that they can adapt to different kinds of systems and basins that it yet to be made or are already existing.

Material efficiency

Our diffusers are made from various materials from ethylene propylene diene monomer rubber (EPDM rubber), which is conventional material. We also have fEPDM which has high chemical resistance.
Some are also of polytetrafluoroethylene or (PTFE) to reduce fouling.

Micro Bubble Disc Air Diffuser Aerator Disc 0
MATERIAL

Micro Bubble Disc Air Diffuser Aerator Disc 4EPDM Membrane

Manufactured by a standard cure, low plasticizer content, and 1mm or 2mm perforations. DUBHE mold EPDM with modern equipment utilizing individual thermocouples and vacuum technology ensures a repeatable very high-quality product.

Micro Bubble Disc Air Diffuser Aerator Disc 4Diffuser Bases

The Diffuser Basesis molded with virgin polypropylene for extended performance, and is highly efficient with airflow performance of 1.5-2.5SCFM.

Micro Bubble Disc Air Diffuser Aerator Disc 0
STRUCTURE



Micro Bubble Disc Air Diffuser Aerator Disc 7



Micro Bubble Disc Air Diffuser Aerator Disc 8

Micro Bubble Disc Air Diffuser Aerator Disc 0
Working Process

Micro Bubble Disc Air Diffuser Aerator Disc 10

Micro Bubble Disc Air Diffuser Aerator Disc 0
SPECIFICATION

Micro Bubble Disc Air Diffuser Aerator Disc 12

Micro Bubble Disc Air Diffuser Aerator Disc 0
APPLICATION

Micro Bubble Disc Air Diffuser Aerator Disc 14

Micro Bubble Disc Air Diffuser Aerator Disc 0
CASE

  Micro Bubble Disc Air Diffuser Aerator Disc 16 Micro Bubble Disc Air Diffuser Aerator Disc 17 Micro Bubble Disc Air Diffuser Aerator Disc 18 Micro Bubble Disc Air Diffuser Aerator Disc 19 Micro Bubble Disc Air Diffuser Aerator Disc 20
 Micro Bubble Disc Air Diffuser Aerator Disc 21

Q1: How to pay?

A:100%T/T, Paypal, West Union, MoneyGram, Secure payment, and Trade Assurance.

Q2: What's the delivery time?

A: About 30-60 days.

Q3: Can we visit your company and factory?

A: Yes, you can.

Q4: Do you have an inspection report for the material?

A: Yes, we have.
