Moving Bed Biofilm Reactor Mbbr Filter Sludge Biological Filler

Moving Bed Biofilm Reactor Mbbr Filter Sludge Biological Filler

moving bed biofilm reactor mbbr filter

sponge-based moving bed biofilm reactor

moving bed biofilm reactor sludge

Place of Origin:

CHINA

Brand Name:

DUBHE

Certification:

ISO

Model Number:

MH-25×4

Contact Us

Request A Quote
Product Details
Product Name:
Water Cutting Wedge Solid Liquid Siparator
Material:
HDPF
Batch Rate:
15-60
Overall Surface Area:
>820
Bulk Specific Gravity:
140
Service Life:
≧20years
Payment & Shipping Terms
Product Description

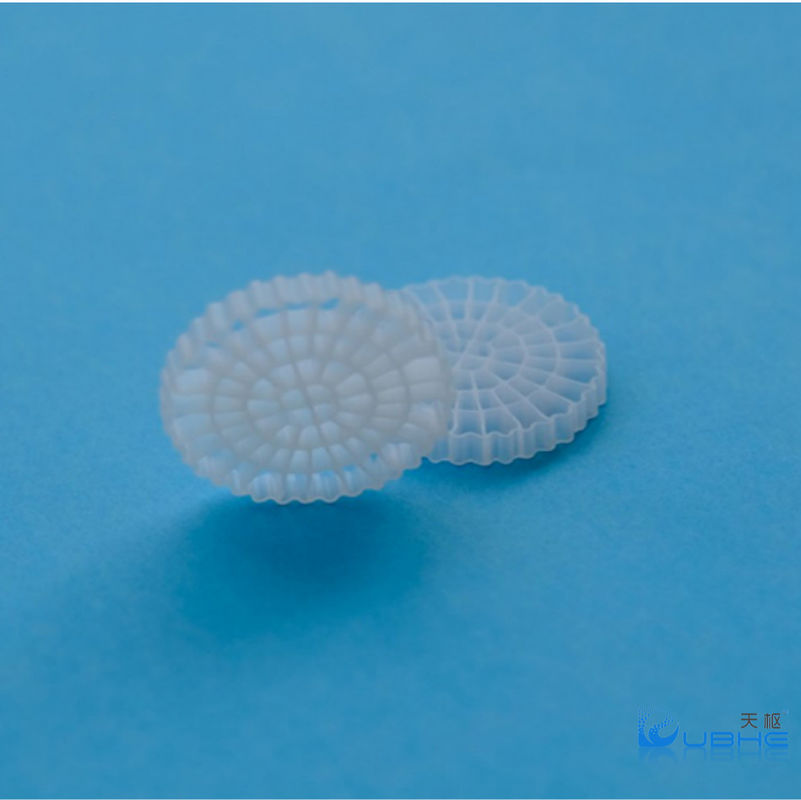

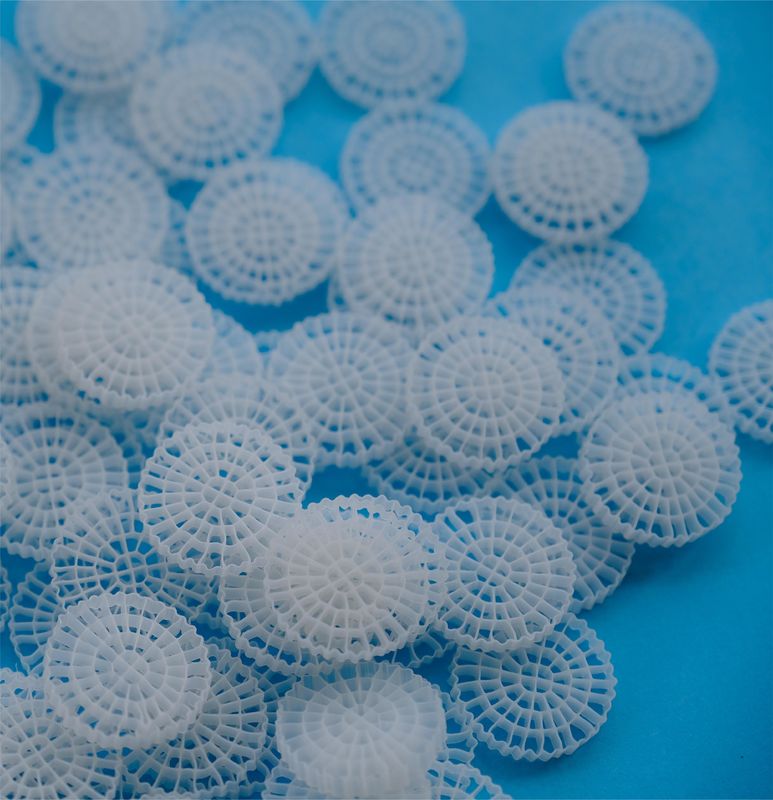

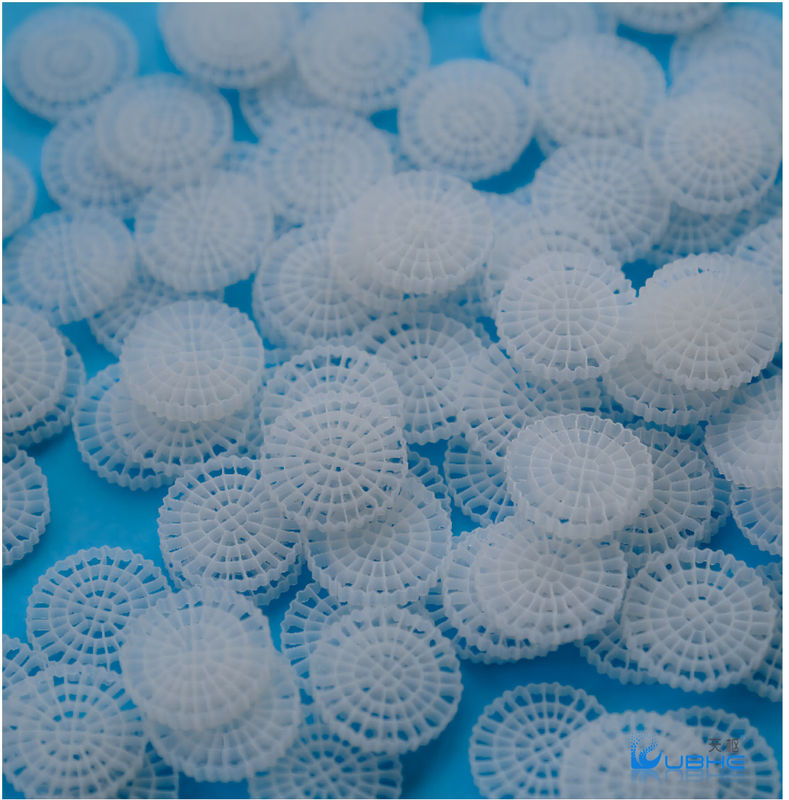

Moving Bed Biofilm Reactor(MBBR) Biological Filler Bio Carrier For Domestic And Industrial Sewage Treatment-25×4

ARTICLE

Moving bed biofilm reactor (MBBR) is a type of wastewater treatment process that was first invented by Professor Hallvard Ødegaard at the Norwegian University of Science and Technology in the late 1980s.[1] The process takes place in an aeration tank with activated sludge and uses floating, recycled plastic carriers that a biofilm can grow on. The compact size and low wastewater treatment costs offer many advantages for the system. The main objective of using MBBR is water reuse and the removal or recovery of nutrients. In theory, wastewater can no longer be considered waste but rather a resource.

Moving Bed Biofilm Reactor Mbbr Filter Sludge Biological Filler 0
OVERVIEW

Due to early issues with biofilm reactors, like hydraulic instability and uneven biofilm distribution, moving bed biofilm technology was developed.

The MBBR system consists of an aeration tank (similar to an activated sludge tank) with special plastic carriers that provide a surface where a biofilm can grow. There is a wide variety of plastic carriers used in these systems. These carriers vary in surface area and in shape, each offering different advantages and disadvantages.

A large internal surface area is crucial for contact with water, air, bacteria, and nutrients in biofilm formation. Therefore, free-floating carriers play a very important role as they allow biofilms to form on the surface. The carriers, when mixed in the tank by the aeration system, ensure good contact between the substrate in the influent wastewater and the biomass on the carriers. This mixing promotes efficient pollutant removal and the breakdown of organic compounds present in the wastewater.


To achieve a higher concentration of biomass in the bioreactors, hybrid MBBR systems have been used where both suspended and attached biomass coexist, contributing to biological processes. Currently, high-density polyethylene (HDPE) is the most preferable material due to its plasticity, density, and durability.

Moving Bed Biofilm Reactor Mbbr Filter Sludge Biological Filler 0
FEATURES

  • Large specific surface area, more attached microorganisms

  • No need bracket, easy to fluidize, save energy

  • Fast and easily to hang membrane, high biological activity

  • Strong impact resistance, long lifetime

  • Excellent nitrogen and phosphorus removal effect

  • Small footprint, simple and flexible operation management

  • Good hydrophilicity, good treatment effect

  • Relying on biofilm treatment, reduces the remaining sludge

Moving Bed Biofilm Reactor Mbbr Filter Sludge Biological Filler 0
CURRENT USAGE

MBBR technology is currently used in various industries for wastewater treatment, including municipal sewage treatment, industrial wastewater treatment, and decentralized wastewater treatment. It has found applications in a wide range of sectors, including:

  • Automotive industry
  • Chemical industry
  • Food and beverage
  • Petrochemical Industry

The MBBR system, along with other conventional biofilm processes for wastewater treatment such as trickling filters, rotating biological contactors (RBC), and biological aerated filters (BAF), is classified as a biological or biofilm-based process. These processes rely on the growth of microorganisms in biofilms to degrade organic matter and remove pollutants from wastewater.

Moving Bed Biofilm Reactor Mbbr Filter Sludge Biological Filler 0
APPLICATION



Moving Bed Biofilm Reactor Mbbr Filter Sludge Biological Filler 4

Moving Bed Biofilm Reactor Mbbr Filter Sludge Biological Filler 0
ADVANTAGES

In general, biofilm processes require less space than activated sludge systems due to the higher concentration of biomass and reduced dependency on final sludge separation. Unlike activated sludge systems, MBBR systems do not require sludge recycling.

The MBBR system is commonly used as a retrofit for existing activated sludge tanks to enhance the capacity of the system. The filling degree of the carriers can be adjusted according to the specific situation and desired capacity. This allows treatment plants to increase their capacity without expanding the footprint by constructing new tanks.


Some other advantages are:

  • Increased performance and volumetric treatment capacity
  • Higher effective sludge retention time (SRT) which is favorable for nitrification

  • Without operator intervention, the MBBR system responds to load fluctuations.

  • Lower sludge production

  • Less area required

  • Resilient to toxic shock

  • Process performance independent of secondary clarifier (due to the fact that there is no sludge return line).

Moving Bed Biofilm Reactor Mbbr Filter Sludge Biological Filler 0
SPECIFICATON

Moving Bed Biofilm Reactor Mbbr Filter Sludge Biological Filler 7



Moving Bed Biofilm Reactor Mbbr Filter Sludge Biological Filler 8

Q: Can you print our logo on the outer package?

A:Yes

Q: Can we visit your company and factory?

A:Yes,you can

Q: Can you accept mixed batch of different products?

A:Yes

Q: What is the lead time of an order?

A:About 7-30 days
