Name: UF Membrane Sewage Treatment Plant Oils Extractable Equipment Plant
Brand: SHANGHAI DUBHE ENVIRONMENTAL PROTECTION&TECHNOLOGY CO.,LTD
SKU: LP-8040-365FR
Availability: InStock

Home > products > Membrane Bioreactor >

UF Membrane Sewage Treatment Plant Oils Extractable Equipment Plant

Place of Origin:

CHINA

Brand Name:

DUBHE

Certification:

ISO

Model Number:

LP-8040-365FR

Request A Quote

UF Membrane Sewage Treatment Plant Oils Extractable Equipment Plant

Product Details

Feed Spacer Thickness(mil):

Effective Membrane Area(m2):

33.9

Stable Rejection Rate%:

99.3

Permeate Flow Rate(m3/d):

35.9

Minimum Rejection Rate%:

Application:

Commercial Water Purifiers

Usage:

Industrial, Municipal Wastewater

Payment & Shipping Terms

Advanced Membrane Bioreactor for High-Performance and Sustainable Water Treatment

Get Best Price

Advanced Membrane Bioreactor for High-Performance and Sustainable Water Treatment

Get Best Price

XYM LP Standard Brackish Water Reverse Osmosis Membrane Element

Get Best Price

XYM NF Nanofiltration Membrane Components Permeate Flow Rate m3/d 45.5

Get Best Price

86-021-80510158

shdubhe@gmail.com

Contact Now

Product Description

Product Description:

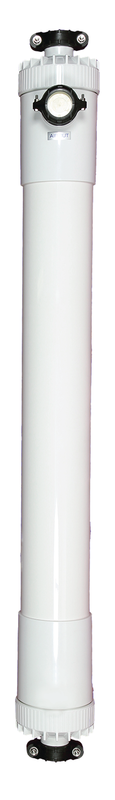

Ultra-Low Pressure Spiral-Wound Polyamide Composite Membrane Element

Features extremely low operating pressure and exceptionally high water production capacity, significantly reducing system operational costs.
Its unique element structure and post-treatment process, combined with a wide feed flow channel spacer, enable effective cleaning within a broader pH range (2–12), enhancing the element's durability and service life.

Operating and Cleaning Limits:

1. Flow rate and salt rejection are based on the following test conditions: 1500 ppm NaCl solution, 77ºF (25ºC), pH: 7.5, 15% recovery rate, and the rated applied test pressure mentioned above.
2. The minimum salt rejection rate is 99.0%.
3. The flow rate of a single element may vary within a range of ±15%.

Maximum Operating Temperature: 113 °F (45 °C)
Maximum Operating Pressure: 600 psi (4.14 MPa)
pH Range, Continuous Operation: 3-10
Maximum Feed Silt Density Index (SDI): < 5
Maximum Feed Flow Rate: 16 gpm (3.6 m³/h)
Chlorine Tolerance: < 0.1 ppm

Notes:
a. The maximum temperature for continuous operation at pH above 10 is 95 °F (35 °C).
b. Under certain conditions, free chlorine and other oxidizing agents may cause premature membrane failure. Since damage from oxidation is not covered under warranty, it is recommended that customers remove residual chlorine through pretreatment prior to membrane contact.

UF Membrane Sewage Treatment Plant Oils Extractable Equipment Plant 0

Membrane type	Membrane Model	Stable Salt Rejection%	Minimum Salt Rejection%	Average Water ProductionGDP(M³/d)	Membrane area ft²(m²)	Feed Spacer (mil)	Test condition
Membrane type	Membrane Model	Stable Salt Rejection%	Minimum Salt Rejection%	Average Water ProductionGDP(M³/d)	Membrane area ft²(m²)	Feed Spacer (mil)	Test Pressure psi(bar)	Test Solution Concentration nacl(ppm)	Recovery Rate%
Ultra-Low Pressure Reverse Osmosis	ECO1-8040	99.0	98.5	10500(39.7)	400(37.2)	28	100(6.9)	500	15
	ECO1-4040	99.0	98.5	2600(9.8)	93(8.6)	28
	ECO2-8040	99.0	98.5	11000(41.6)	440(41.0)	28
	ECO2-4040	99.0	98.5	2800(10.5)	103(9.6)	28
Ultra-Low Pressure Reverse Osmosis	LPO1-8040	99.3	99.0	11000(41.6)	400(37.2)	32	150(10.3)	1500	15
	LPO2-8040	99.3	99.0	11500(43.5)	420(39.0)	30
	LPO3-8040	99.3	99.0	12000(45.4)	440(41.0)	28
	LPO1-4040	99.3	99.0	2500(9.5)	93(8.6)	28
	LPO2-4040	99.3	99.0	2600(9.8)	103(9.6)	28
	LPO1-8040HR	99.5	99.3	10000(37.8)	400(37.2)	32
	LPO2-8040HR	99.5	99.3	10500(39.7)	420(39.0)	30
	LPO3-8040HR	99.5	99.3	11000(41.6)	440(41.0)	28
Low-Pressure (Brackish Water) Reverse Osmosis Membrane	PRO1-8040	99.5	99.3	10500(39.7)	400(37.2)	32	225(15.5)	2000	15
	PRO2-8040	99.5	99.3	11000(41.6)	420(39.0)	30
	PRO3-8040	99.5	99.3	11500(43.5)	440(41.0)	28
	PRO1-4040	99.5	99.3	2500(9.5)	93(8.6)	28
	PRO2-4040	99.5	99.3	2600(9.8)	103(9.6)	28
Low-Pressure (Brackish Water) High-Rejection Reverse Osmosis Membrane	PRO1-8040HR	99.7	99.5	9500(36.0)	400(37.2)	32
	PRO2-8040HR	99.7	99.5	10000(37.8)	420(39.0)	30
	PRO3-8040HR	99.7	99.5	10500(39.7)	440(41.0)	28
	PRO1-4040HR	99.7	99.5	2000(7.6)	93(8.6)	28
	PRO2-4040HR	99.7	99.5	2100(8.1)	103(9.6)	28

Applications

Suitable for desalination and advanced treatment of brackish water, surface water, and tap water with a salinity of approximately 1500 ppm or less, such as small commercial water purifiers, hospital and laboratory water purification equipment, etc.

Conclusion

UF Membrane Sewage Treatment Plant Oils Extractable Equipment Plant 1
