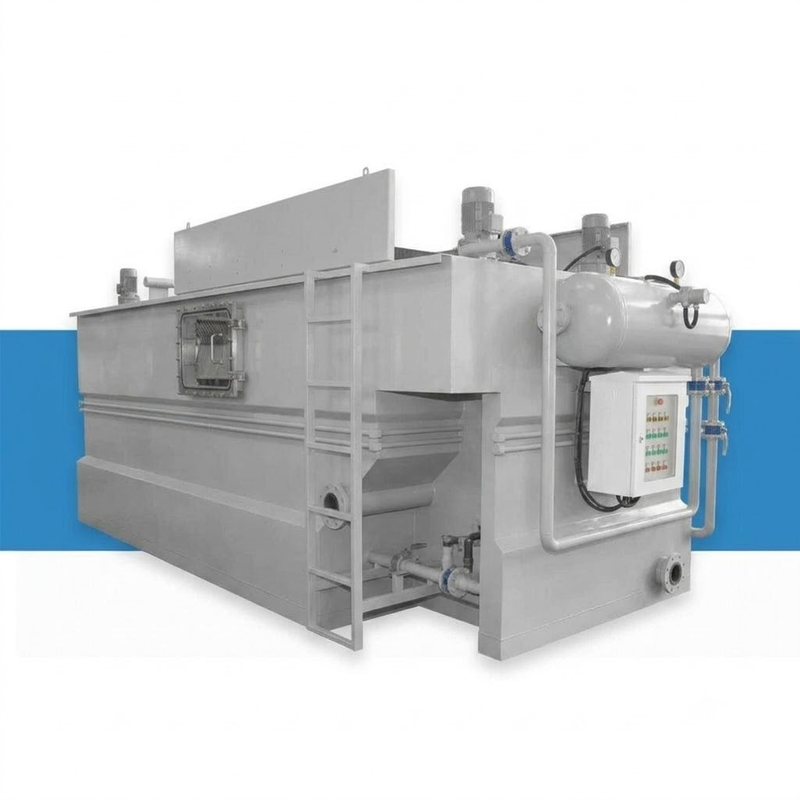

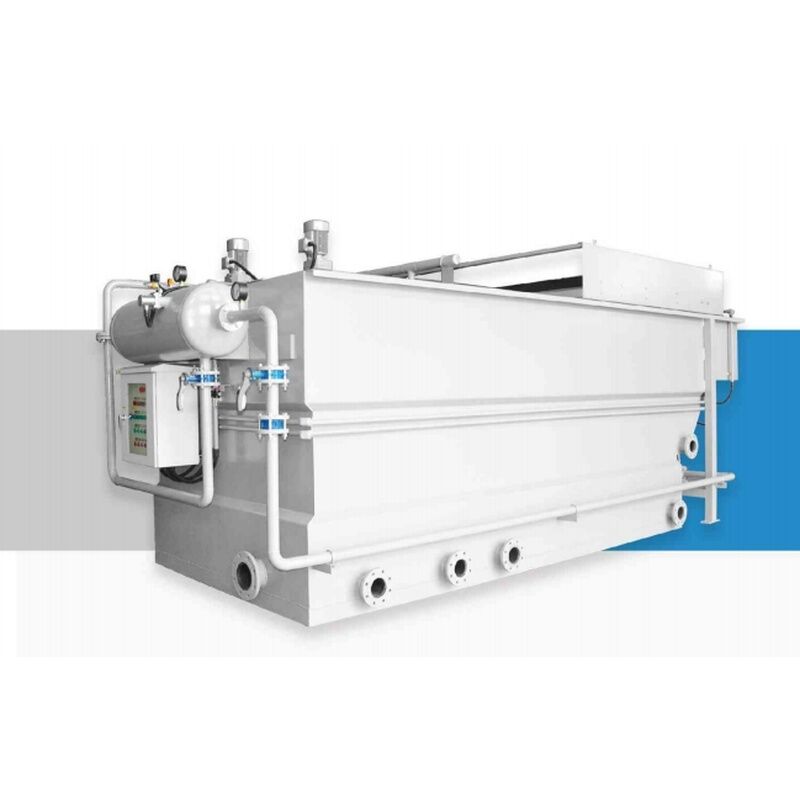

Product Description:
The DAF-MP large capacity dissolved air flotation system is specifically engineered for mining and paper mill industrial wastewater treatment. Through advanced dissolved air and micro-bubble release technology, it generates a massive volume of fine bubbles that attach to suspended solids, oils, and colloidal particles, causing them to float to the surface for efficient removal. With a treatment capacity of 2-150 m3/h, this system delivers dependable solid-liquid separation performance for heavy-duty Latin American industrial operations.
Features:
- Product Name: Large Capacity Dissolved Air Flotation DAF System
- Model: DAF-MP
- Application: Mining and Paper Mill Wastewater Treatment
- Material: Stainless Steel 304
- Treatment Capacity: 2-150 m3/h
- Hydraulic Load: 4-6 m3/(m2.h)
- Automation: Semi-Automatic PLC Control
- Solid Content Handling: 30-100 g/L
DAF / IDAF (Technical Specifications)
| Model |
Capacity |
Power (kW) |
Dimension (m) |
Nozzle list (DN) |
DAF/
IDAF |
m³/h |
Recycle
pump |
Air
compressor |
Skimmer |
IDAF
Fast mixer |
IDAF
Slow mixer |
DAF
L₁/L₂ |
IDAF
L₁/L₂ |
W₁/W₂ |
H₁/H₂ |
Inlet
(a) |
Outlet
(b) |
Sludge
outlet (c) |
Vent
nozzle (d) |
| 003 |
~3 |
0.75 |
0.55 |
0.12 |
0.37 |
0.25 |
3.6/2.8 |
4.1/3.2 |
2.4/1.2 |
2.2/1.7 |
50 |
50 |
80 |
80 |
| 005 |
~5 |
1.1 |
0.55 |
0.12 |
0.37 |
0.25 |
3.8/3.0 |
4.4/3.6 |
2.4/1.2 |
2.2/1.7 |
80 |
80 |
80 |
80 |
| 010 |
~10 |
4 |
0.55 |
0.12 |
0.37 |
0.25 |
4.3/3.3 |
5.0/4.0 |
2.9/1.7 |
2.4/1.9 |
100 |
100 |
100 |
100 |
| 020 |
~20 |
4 |
0.75 |
0.12 |
0.37 |
0.25 |
5.7/4.8 |
6.2/5.2 |
3.2/2.2 |
2.4/1.9 |
150 |
100 |
100 |
100 |
| 030 |
~30 |
5.5 |
0.75 |
0.12 |
0.37 |
0.25 |
6.5/5.5 |
7.7/6.7 |
3.2/2.2 |
2.4/1.9 |
150 |
150 |
150 |
100 |
| 040 |
~40 |
5.5 |
0.75 |
0.12 |
0.75 |
0.37 |
6.5/5.5 |
7.7/6.7 |
3.6/2.7 |
2.4/1.9 |
200 |
200 |
150 |
100 |
| 050 |
~50 |
7.5 |
0.75 |
0.12 |
0.75 |
0.37 |
7.3/6.3 |
8.8/7.8 |
3.6/2.7 |
2.4/1.9 |
200 |
200 |
150 |
100 |
| 080 |
~80 |
11 |
1.5 |
0.12 |
1.5 |
0.37 |
8.9/7.6 |
10.6/9.2 |
4.4/3.4 |
2.7/2.3 |
250 |
200 |
150 |
100 |
| 100 |
~100 |
11 |
1.5 |
0.12 |
1.5 |
0.37 |
10.8/9.4 |
13.2/11.8 |
4.4/3.4 |
2.7/2.3 |
300 |
250 |
150 |
100 |
| 120 |
~120 |
11 |
2.2 |
0.12 |
1.5 |
0.37 |
11.7/10.4 |
14.2/12.8 |
4.4/3.4 |
2.7/2.3 |
300 |
250 |
150 |
100 |
| 150 |
~150 |
15 |
3 |
0.12 |
1.5 |
0.37 |
13.5/12.0 |
15.8/14.4 |
4.5/3.8 |
2.7/2.3 |
300 |
300 |
150 |
100 |
Process Flow Diagram:
Applications:
This dissolved air flotation DAF system is ideally suited for mining tailings water treatment, coal washing wastewater, paper mill white water and pulp effluent, iron and steel plant wastewater, and other heavy industrial applications common across Latin American markets including Brazil, Chile, Peru, Mexico, and Colombia. It effectively removes suspended solids, fibers, oils, and heavy metal particulates from high-load industrial effluent streams.
Support and Services:
- Remote installation guidance and on-site commissioning support available for Latin America
- Troubleshooting and diagnosis of system operational issues
- Regular maintenance program and spare parts supply
- Operator training and technical documentation in English and Spanish
- Equipment upgrades and performance optimization services
Packing and Shipping:
Product Packaging:
- Export-grade wooden case packaging with moisture-proof film wrapping
- Reinforced steel frame structure for long-distance ocean freight to Latin America
- Complete with installation manual, operation guide, and certification documents
Shipping:
- Sea freight to major Latin American ports: Santos, Callao, Valparaiso, Buenaventura, Veracruz
- Shipping cost calculated based on destination port and order volume
- Tracking number provided upon shipment dispatch
FAQ:
Q: What is the brand name of this DAF system?
A: The brand name is DUBHE.
Q: What is the model number?
A: The model number is DAF-MP (Mining & Paper).
Q: What certifications does this system have?
A: ISO 9001 certified.
Q: Do you ship to Latin America?
A: Yes, we regularly ship to Brazil, Chile, Peru, Mexico, Colombia, and other Latin American countries.
Q: What is the minimum order quantity?
A: The MOQ is 1 set.
