Home > products > Solid Liquid Separator >

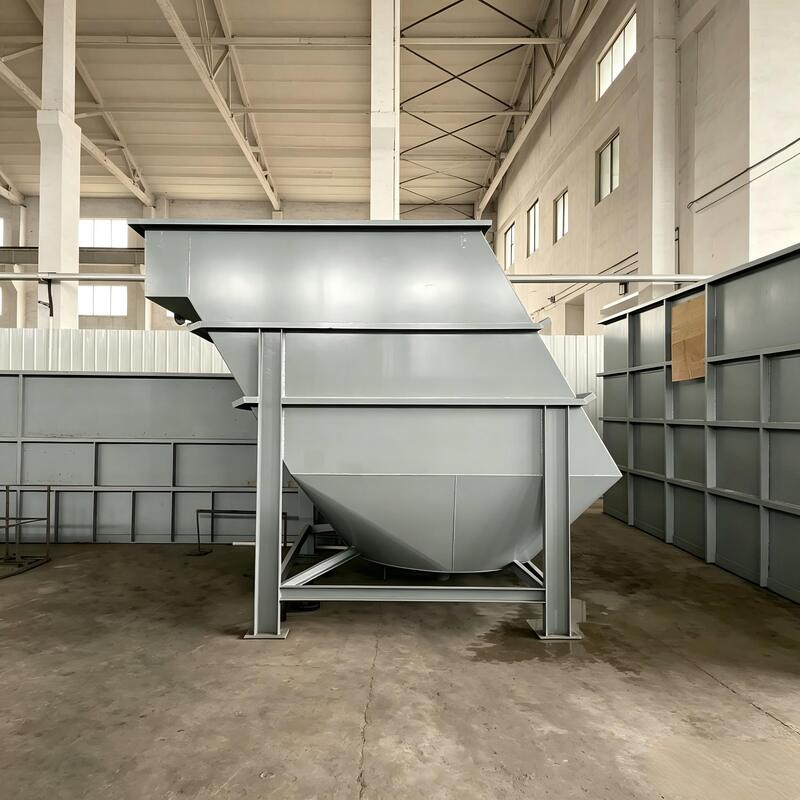

Textile Dye Wastewater Lamella Settler Color Removal Inclined Plate Clarifier for Printing Effluent 10-50m³/h

Textile Dye Wastewater Lamella Settler Color Removal Inclined Plate Clarifier for Printing Effluent 10-50m³/h

Textile Dye Lamella Settler

Color Removal Plate Clarifier

Printing Effluent Treatment System

Place of Origin:

Jiangsu, China

Brand Name:

DUBHE

Certification:

ISO 9001:2015

Model Number:

LST-2

Contact Us
Request A Quote
Textile Dye Wastewater Lamella Settler Color Removal Inclined Plate Clarifier for Printing Effluent 10-50m³/h
Product Details
Processing Capacity:
10-50 M³/h
Inlet Color:
≤ 2000 Pt-Co (Platinum-Cobalt Units)
Inlet SS Concentration:
≤ 6000 Mg/L
Outlet Color:
≤ 100 Pt-Co (90%+ Removal)
Outlet SS Concentration:
≤ 25 Mg/L
Coagulation Zone:
Integrated Rapid Mix With PAC And Color Removal Agent Dosing
Flocculation Zone:
Slow Mix Paddle Flocculator With Variable Speed Drive
Plate Material:
PP (Polypropylene) / Stainless Steel 304
Plate Spacing:
50-80 Mm
Inclination Angle:
55°-60°
Tank Material:
Carbon Steel With Chemical-Resistant Epoxy Coating / SS304
PH Operating Range:
4-10
Application:
Denim Washing, Cotton Dyeing, Synthetic Textile Printing, Leather Tanning Effluent
Highlight:

Textile Dye Lamella Settler

,

Color Removal Plate Clarifier

,

Printing Effluent Treatment System

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
USD 8,000 - 22,000 / Set
Packaging Details
Standard export plywood crate with waterproof wrapping, chemical-resistant lining, and reinforced steel frame for container shipping
Delivery Time
20-35 working days after order confirmation
Payment Terms
T/T,L/C,Western Union
Supply Ability
30 Sets per Month
RELATED PRODUCTS
Good price DAF2 Dissolved Air Flotation Machine 10-150m³/h for ETP Algae Removal Water Treatment online

DAF2 Dissolved Air Flotation Machine 10-150m³/h for ETP Algae Removal Water Treatment

Get Best Price
Good price DAF2 Air Flotation Machine Solid Liquid Separator 10-150m³/h for High Load Industrial Wastewater online

DAF2 Air Flotation Machine Solid Liquid Separator 10-150m³/h for High Load Industrial Wastewater

Get Best Price
Good price Stainless Steel DAF2 Air Flotation Machine 10-150m³/h for WWTP Sewage Phosphorus Removal online

Stainless Steel DAF2 Air Flotation Machine 10-150m³/h for WWTP Sewage Phosphorus Removal

Get Best Price
Good price Customizable DAF Solid Liquid Separator Machine 2-150m³/h for Food Municipal Semiconductor Wastewater online

Customizable DAF Solid Liquid Separator Machine 2-150m³/h for Food Municipal Semiconductor Wastewater

Get Best Price
Contact Us
Contact Now
Product Description

用于去除颜色的纺织染料废水斜板沉淀器

我们的纺织染料废水斜板沉淀器(型号BLS-50T)是一款专为满足纺织印染废水高脱色需求而设计的专用斜板澄清器.该系统集成了一个针对染料分子沉淀优化的混凝絮凝区,在10-50立方米/小时的流量下,脱色率可达90%以上.该系统已在哥伦比亚,秘鲁,巴西,墨西哥和危地马拉的牛仔布洗衣厂,棉布染厂和合成纤维印花厂投入使用.

主要特点和优势

  • 优化的染料沉淀:预混凝区专为聚合氯化铝 (PAC) 和专用脱色剂而设计.快速混合后进行可控絮凝,确保在板沉降前最大限度地捕获染料分子.
  • 脱色率达 90% 以上:将进水色度从 ≤ 2000 Pt-Co 单位降低至处理后出水中的 ≤ 100 Pt-Co 单位,满足目视排放标准,并可在冲洗作业中重复利用水.
  • 广泛的染料化学兼容性:对拉丁美洲纺织品制造中常用的活性染料,分散染料,还原染料,硫化染料和靛蓝均有效.可根据染料类型定制化学药剂用量方案.
  • 变速絮凝器:可调节桨叶速度,从而优化不同染料纤维组合的絮凝形成,从重质牛仔布靛蓝到轻质合成分散染料.
  • 耐化学腐蚀结构:多层环氧涂层或全 SS304 罐体结构可抵抗纺织废水中常见的残留染料化学品,漂白剂和 pH 值变化造成的降解.

技术规格

Model Capacity Dimension (m) Sludge scraper Nozzle list (DN) GB/JIS/ANSI
LST 2 m³/h L W H₁/H₂ kW Inlet
(a)		 Outlet
(b)		 Sludge outlet
(c)		 Backwash
(d)
005-7 5 2.2 1.7 3.2/2.4 0.25 80 50 50 50
010-11 10 2.9 1.7 3.2/2.4 0.25 100 80 50 50
015-21 15 2.8 2.2 3.8/3.0 0.25 100 80 80 50
020-30 20 3.5 2.2 3.8/3.0 0.25 150 150 100 50
035-43 35 3.9 2.2 4.3/3.5 0.25 200 150 100 50
040-52 40 3.8 2.8 4.3/3.5 0.25 200 200 100 50
055-72 55 4.4 2.8 4.3/3.5 0.25 250 250 100 50
065-82 65 4.2 3.3 4.3/3.5 0.25 250 250 100 50
080-105 80 4.9 3.3 4.3/3.5 0.25 250 250 100 50
※070-95 70 6.6 2.2 4.3/3.5 0.25*2 250 250 100 50
※120-150 120 7.7 2.8 4.4/3.6 0.25*2 300 300 100 50
※180-215 180 8.5 3.3 4.4/3.6 0.25*2 350 350 100 50

已在拉丁美洲纺织中心得到验证

在哥伦比亚麦德林和波哥大的牛仔布整理厂,秘鲁利马和阿雷基帕的棉布染色厂,巴西圣保罗和圣卡塔琳娜的合成纤维印花厂以及危地马拉城和圣佩德罗苏拉的服装洗涤厂,均已安装了气泡空气纺织废水澄清器.我们了解具体的排放法规,包括哥伦比亚的第0631号决议,秘鲁的DS 010-2019-VIVIENDA号法规以及巴西的CONAMA 430号法规.所有技术支持均由熟悉当地纺织加工方法的工程师以西班牙语和葡萄牙语提供.

联系我们的纺织行业团队,即可获得免费的废水特性分析和针对特定染料的处理方案.我们提供烧杯试验服务,帮助您在设备选型前优化化学药剂的投加量.

Textile Dye Wastewater Lamella Settler Color Removal Inclined Plate Clarifier for Printing Effluent 10-50m³/h

Tags：

Wastewater Lamella Clarifier

Compact Lamella Clarifier

High-Efficiency Lamella Clarifier
