Rotating Belt Filter Press Sludge Dewatering Machine For Sale

Rotating Belt Filter Press Sludge Dewatering Machine For Sale

rotating belt filter

rotating belt filter Press

sludge dewatering machine for sale

Place of Origin:

CHINA

Brand Name:

DUBHE

Model Number:

DTE3

Contact Us

Request A Quote
Product Details
Product Name:
Three Filter Belt Gravity Belt
Belt Width (mm):
750~3000
Treating Capacity (m3 /hr):
14.0~130.0
Water Content Rate (%):
65~84
Power Consumption (HP):
1.25~6
Application:
Dewatering Municipal And Industrial Sludge
Operation Mode:
Automatic
Pressure:
High Pressure
Payment & Shipping Terms
Product Description

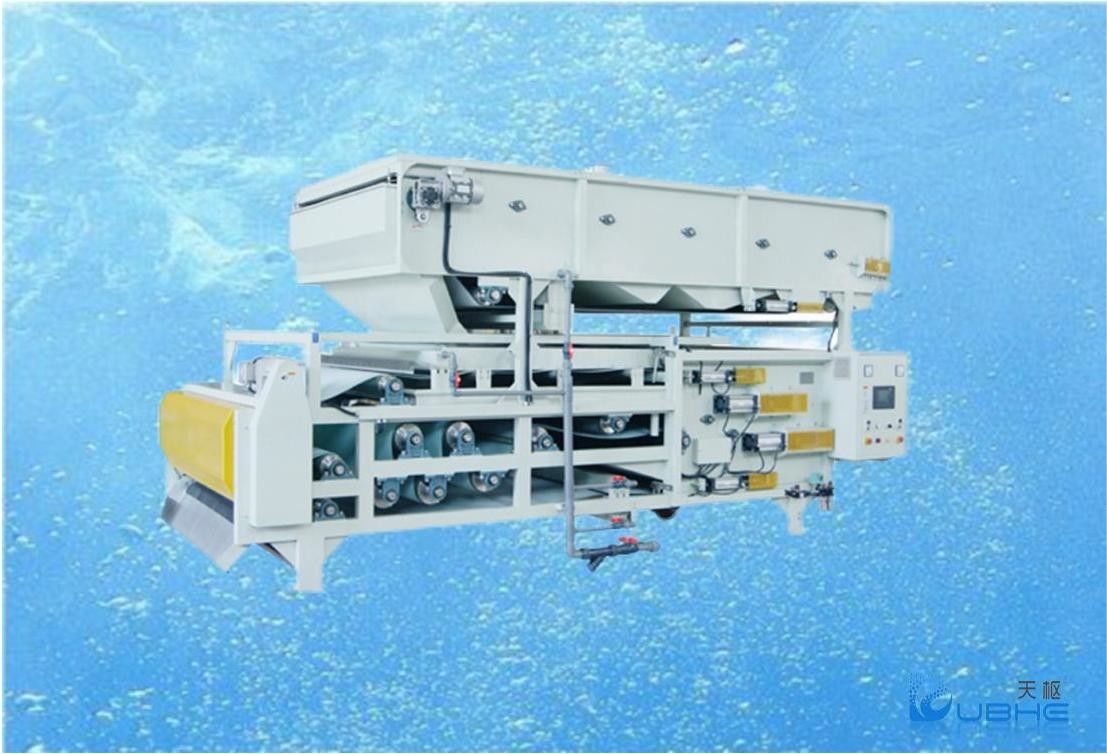

Industrial Three Filter Belt Type Gravity Belt Thickening/Dehydrating Belt Filter Press -DTE3 Series

High-duty version industrial belt filter press is a solid-liquid release process for low to intermediate concentrations.

Rotating Belt Filter Press Sludge Dewatering Machine For Sale 0DESCRIPTION

The process typically begins by feeding the sludge onto the first filter belt, which acts as a gravity dewatering zone. In this zone, the sludge undergoes initial dewatering as water drains through the belt's pores under the influence of gravity. The dewatered sludge then moves onto the second filter belt, known as the wedge zone.



Rotating Belt Filter Press Sludge Dewatering Machine For Sale 0APPLICATION

1. The sludge dewatering of the various industrial wastewater treatment plants.

2. The sludge dewatering of the butchery, livestock, etc.

3. The sludge dewatering of the city sewer, excretion, water purifying, etc. Sewage treatment plants.

4. Solid and liquid separate under processing for the food & beverage, chemical industry, mine, etc.

Rotating Belt Filter Press Sludge Dewatering Machine For Sale 0FEATURES

Rotating Belt Filter Press Sludge Dewatering Machine For Sale 3Integrated sludge dewatering system, continuous auto running;

Belt Thickener effectively improves the sludge solid content and flocculation

Flocculation system with patent reduces polymer consumption;

Good corrosion resistance;

The main structure is made of stainless steel;

Pneumatic tensioning device;

7-segment to 9-segment press rollers.

Rotating Belt Filter Press Sludge Dewatering Machine For Sale 0BENEFITS

Continuous auto running;

Low power consumption, the longevity of service;

Easy to manage, easy to maintain;

Low noise, low consumption of PAM dosage ;

Economical, reliable, and wide application.

Rotating Belt Filter Press Sludge Dewatering Machine For Sale 0Belt Position Correcting System

This system can automatically keep detecting and rectifying the deviation of belt cloth, so as to guarantee the normal operation of our machine and also extend the lifespan of the belt.

■Press Roller
The press roller of our sludge belt filter press is made from SUS304 stainless steel. Additionally, it has gone through the TIG reinforced welding process and fine finishing process, thus featuring a compact structure and ultra-high strength.

■Air Pressure Control Device
Tensioned by an air cylinder, the filter cloth can run smoothly and safely without any leakage.

Rotating Belt Filter Press Sludge Dewatering Machine For Sale 0How Our Belt Filter Press Works

- After flocculation and compression periods, the slurry is delivered to a porous belt for thickening and gravity dewatering.

- A large amount of free water is separated by gravity, and then the slurry solids are formed.

- After that, the slurry is sandwiched between two tensioned belts to pass through the wedge-shaped pre-compression zone, low-pressure zone, and high-pressure zone.

- It is extruded step by step, so as to maximize the separation of sludge and water.

- At last, the filter cake is formed and discharged.

Rotating Belt Filter Press Sludge Dewatering Machine For Sale 7

Rotating Belt Filter Press Sludge Dewatering Machine For Sale 0Technical Data & External Dimensions of Belt Filter Press

Rotating Belt Filter Press Sludge Dewatering Machine For Sale 9   Remark:
  1. Our company will reserve the modifying right of the above specifications.
  2. Treating capacity and the water content rate depend on the slurry feature

  3. Please ask for the actual installation dimension before ordering.

Rotating Belt Filter Press Sludge Dewatering Machine For Sale 0Allocation Schema for Peripheral Equipment

Rotating Belt Filter Press Sludge Dewatering Machine For Sale 11

Rotating Belt Filter Press Sludge Dewatering Machine For Sale 0The Reference Treating Data Sheet of The Major Waste Slurry

Rotating Belt Filter Press Sludge Dewatering Machine For Sale 13

Rotating Belt Filter Press Sludge Dewatering Machine For Sale 0Welcome To DUBHE

Rotating Belt Filter Press Sludge Dewatering Machine For Sale 15 Rotating Belt Filter Press Sludge Dewatering Machine For Sale 16 Rotating Belt Filter Press Sludge Dewatering Machine For Sale 17

Rotating Belt Filter Press Sludge Dewatering Machine For Sale 18

Q1: What's the MOQ?
A: The MOQ is one set.
Q2: Do you have an inspection report for the material?
A: We can provide you with the relative certificates
Q3: Do you have any MOQ limit?
A: As our machine is very large, the minimum purchase quantity is one.
Q4: Can you print our logo on the outer package?
A: Yes, you can.
