Treatment Wastewater Belt Press Rotating Drum Thickener Automatic Position Correction

Treatment Wastewater Belt Press Rotating Drum Thickener Automatic Position Correction

wastewater belt press

belt press wastewater treatment

rotating drum thickener

Place of Origin:

CHINA

Brand Name:

DUBHE

Certification:

ISO

Model Number:

DTB-500

Contact Us

Request A Quote
Product Details
Product Name:
Belt Filter Press
Belt Width (mm):
500
Slurry Inlet Consistency(s.s.%):
1.5-3.5
Treating Capacity (m3 /hr):
2.8~5.7
Dried Sludge D.S(kg/hr):
45~82
Weight(KG):
950
Control Mode:
Manual/Automatic
Application:
Industrial Solid Liquid Separation Processes
Payment & Shipping Terms
Minimum Order Quantity
1Set
Product Description

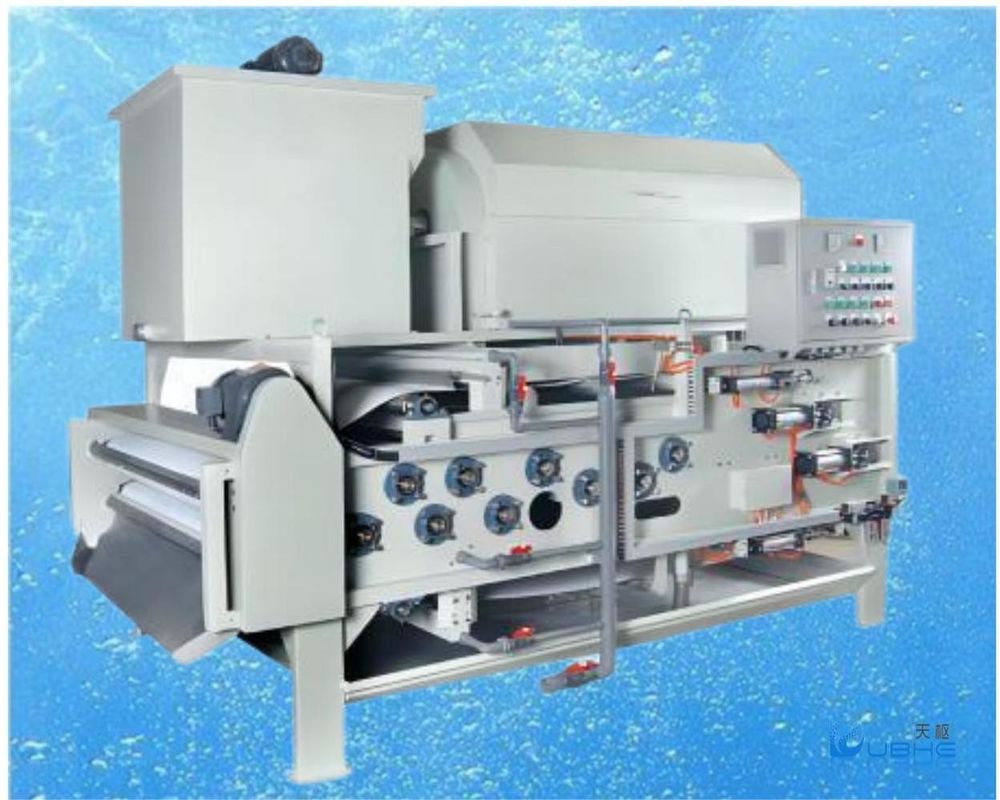

Drum Thickener with Automatic Position Correction System DTB-500

Industrial Belt Filter Press Solid Liquid Separation Processes-Standard Type DTB-500

Treatment Wastewater Belt Press Rotating Drum Thickener Automatic Position Correction 0DESCRIPTION

The Drum Thickener with Automatic Position Correction System is a specialized equipment used for thickening sludge in wastewater treatment plants or other applications where the concentration of solids needs to be increased. The product offers a range of features and functions to facilitate efficient thickening operations.

Treatment Wastewater Belt Press Rotating Drum Thickener Automatic Position Correction 1

Treatment Wastewater Belt Press Rotating Drum Thickener Automatic Position Correction 0APPLICATION

1. The sludge dewatering of the various industrial wastewater treatment plants.

2. The sludge dewatering of the butchery, livestock, etc.

3. The sludge dewatering of the city sewer, excretion, water purifying, etc. Sewage treatment plants.

4. Solid and liquid separate under processing for the food & beverage, chemical industry, mine, etc.

Treatment Wastewater Belt Press Rotating Drum Thickener Automatic Position Correction 0FEATURES

High-efficiency of products dehydration, a large quantity of sludge treatment, automatic operation, low power consumption, low noise, simple structure, semi-enclosed structure, easy maintenance; this machine is simple, easy to understand, easy to learn, the common operators could run the whole process after a short period of time training.

Treatment Wastewater Belt Press Rotating Drum Thickener Automatic Position Correction 0BENEFITS

Continuous auto running;

Low power consumption, the longevity of service;

Easy to manage, easy to maintain;

Low noise, low consumption of PAM dosage ;

Economical, reliable, and wide application.

Treatment Wastewater Belt Press Rotating Drum Thickener Automatic Position Correction 0Belt Position Correcting System

This system can automatically keep detecting and rectifying the deviation of belt cloth, so as to guarantee the normal operation of our machine and also extend the lifespan of the belt.

■Press Roller
The press roller of our sludge belt filter press is made from SUS304 stainless steel. Additionally, it has gone through the TIG reinforced welding process and exemplary finishing process, thus featuring a compact structure and ultra-high strength.

■Air Pressure Control Device
Tensioned by an air cylinder, the filter cloth can run smoothly and safely without any leakage.

Treatment Wastewater Belt Press Rotating Drum Thickener Automatic Position Correction 0How Our Belt Filter Press Works

- After flocculation and compression periods, the slurry is delivered to a porous belt for thickening and gravity dewatering.

- A large amount of free water is separated by gravity, and then the slurry solids are formed.

- After that, the slurry is sandwiched between two tensioned belts to pass through the wedge-shaped pre-compression zone, low-pressure zone, and high-pressure zone.

- It is extruded step by step to maximize the separation of sludge and water.

- At last, the filter cake is formed and discharged.

Treatment Wastewater Belt Press Rotating Drum Thickener Automatic Position Correction 7

Treatment Wastewater Belt Press Rotating Drum Thickener Automatic Position Correction 0Technical Data & External Dimensions of Belt Filter Press

Treatment Wastewater Belt Press Rotating Drum Thickener Automatic Position Correction 9

Remark:
1. Our company will reserve the modifying right of the above specifications.
2. Treating capacity and the water content rate depend on the slurry feature

3. Please ask for the actual installation dimension before ordering.

Treatment Wastewater Belt Press Rotating Drum Thickener Automatic Position Correction 0Allocation Schema for Peripheral Equipment



Treatment Wastewater Belt Press Rotating Drum Thickener Automatic Position Correction 11

Treatment Wastewater Belt Press Rotating Drum Thickener Automatic Position Correction 0The Reference Treating Data Sheet of The Major Waste Slurry

Treatment Wastewater Belt Press Rotating Drum Thickener Automatic Position Correction 13

Treatment Wastewater Belt Press Rotating Drum Thickener Automatic Position Correction 0Welcome To DUBHE

  Treatment Wastewater Belt Press Rotating Drum Thickener Automatic Position Correction 15 Treatment Wastewater Belt Press Rotating Drum Thickener Automatic Position Correction 16 Treatment Wastewater Belt Press Rotating Drum Thickener Automatic Position Correction 17

Treatment Wastewater Belt Press Rotating Drum Thickener Automatic Position Correction 18

Q1: How to pay?
A: 100%T/T, Paypal, West Union, MoneyGram, Secure payment and Trade Assurance.

Q2: What's the delivery time?
A: 30-60 days.

Q3: What's the MOQ?
A: The MOQ is one set.

Q4: What is the lead time of an order?

A: About 30 to 60 days.
