Primary Tube Settler In Sedimentation Tank Etp Pvc

Primary Tube Settler In Sedimentation Tank Etp Pvc

primary tube settler

tube settler in etp

tube settler pvc

Place of Origin:

CHINA

Brand Name:

DUBHE

Certification:

ISO

Model Number:

PSS-35

Contact Us

Request A Quote
Product Details
Thickness/mm:
0.35-1.00
Slices/㎡:
20-60
Weight(kg/㎡):
14-32
Specific Surface Area( N2/㎡):
50-116
Porosity/%:
85-95%
Material:
Plastic
Payment & Shipping Terms
Product Description

Slant Plate Filler Slant Tube Filler For Domestic And Industrial Sewage Treatment PSS-35

Primary Tube Settler In Sedimentation Tank Etp Pvc 0PRODUCT OVERVIEW

Primary Tube Settler In Sedimentation Tank Etp Pvc 1
The inclined tube/inclined plate filler is mainly used for sedimentation and sand removal devices and is the most widely used and mature water treatment device in water supply and drainage engineering for over a decade. It is widely applicable, has high treatment efficiency, and occupies a small area. It is suitable for water inlet sand removal, general industrial and water supply sedimentation, sewage sedimentation, oil separation, and tailings concentration treatment. It is suitable for both new construction projects and the renovation of existing old pools and can achieve good results. The material is ethylene-propylene copolymer.

There are three types of environmentally friendly inclined plate fillers: polypropylene (PP), polyvinyl chloride (PVC), and fiberglass (FRP).
 Here is the revised word order for the product overview:
The Honeycomb inclined pipe fillers are used for various sedimentation and sand removal functions. There are two forms of assembly: inclined tube and straight tube. Over the past decade, they have been widely used in water supply and drainage engineering, becoming an essential water treatment device. They offer wide applicability, high processing efficiency, and a small footprint. The fillers are suitable for sand removal at the water inlet, sedimentation of general industrial and domestic water supply, sewage sedimentation, oil separation, and tail tension concentration. They can be utilized in both new construction projects and the renovation of existing old pools, delivering significant economic benefits.

Primary Tube Settler In Sedimentation Tank Etp Pvc 0Material Advantage

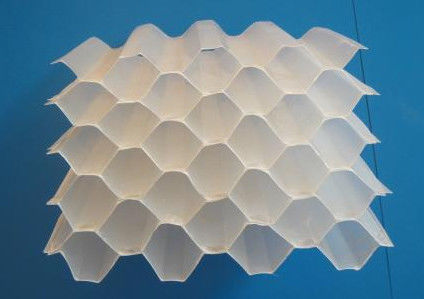

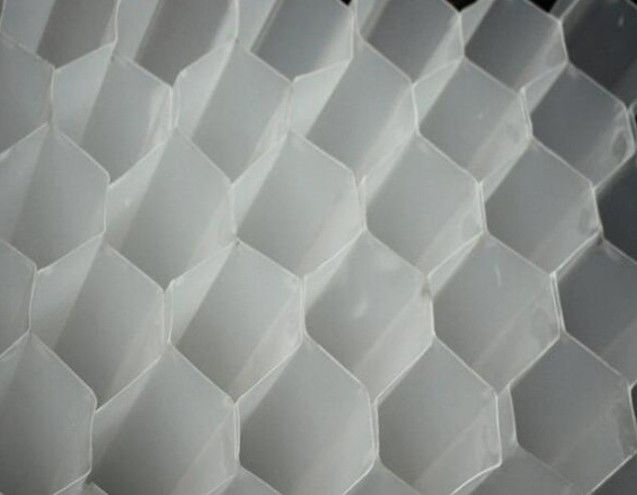

Hexagonal honeycomb inclined tube packing:
Polypropylene ethylene propylene copolymer: flexible, easy to float;
PVC polyoxyethylene: easy to age, brittle, slightly toxic;
FRP fiberglass: acid and alkali resistance.

Primary Tube Settler In Sedimentation Tank Etp Pvc 0FEATURES

1.  Large wet circumference and small hydraulic radius.
2.  The laminar flow state is good, and particle sedimentation is not disturbed by floc flow.
3.  When the length of the inclined pipe is 1 meter, the effective load is designed at 3-5 tons/m2 · h. V0 is controlled within the range of 2.5-3.0 millimeters per second, resulting in excellent effluent quality.
4.  Honeycomb inclined pipes are used at the water intake, with a length of 2.0-3.0 meters, which can safely operate and handle high turbidity with a sediment content of 50-100 kg/m³.
5.  Adopting an inclined tube sedimentation tank, its processing capacity is 3-5 times that of a horizontal flow sedimentation tank, and 2-3 times that of an accelerated sedimentation tank and a pulse sedimentation tank.

Primary Tube Settler In Sedimentation Tank Etp Pvc 4  Primary Tube Settler In Sedimentation Tank Etp Pvc 5  Primary Tube Settler In Sedimentation Tank Etp Pvc 6

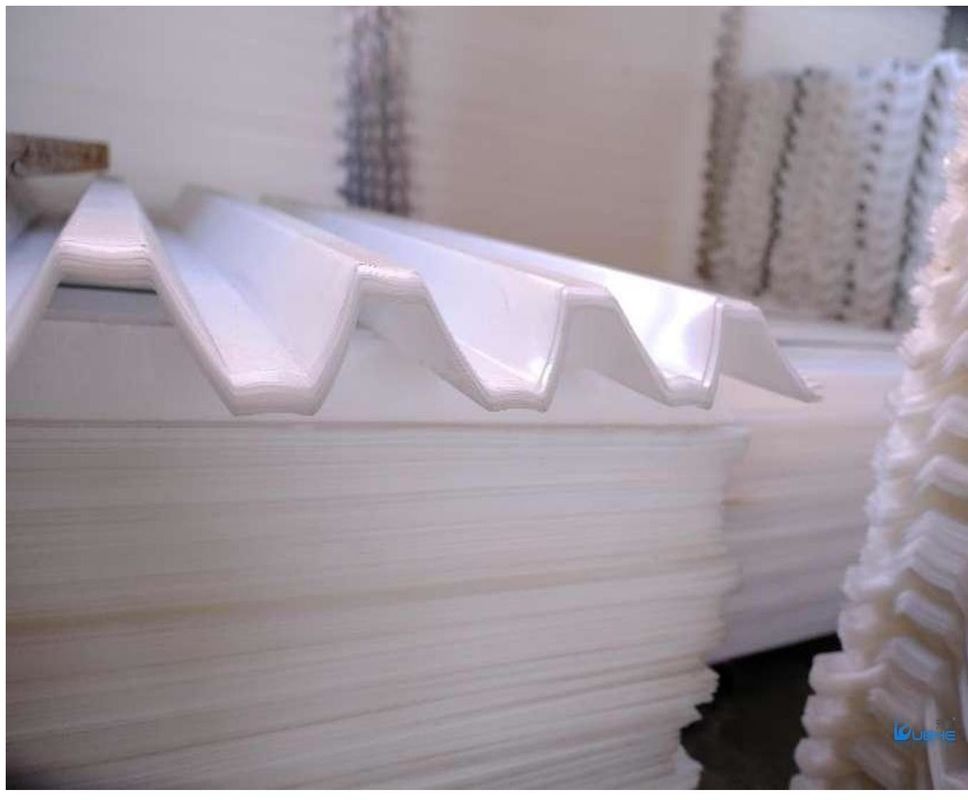

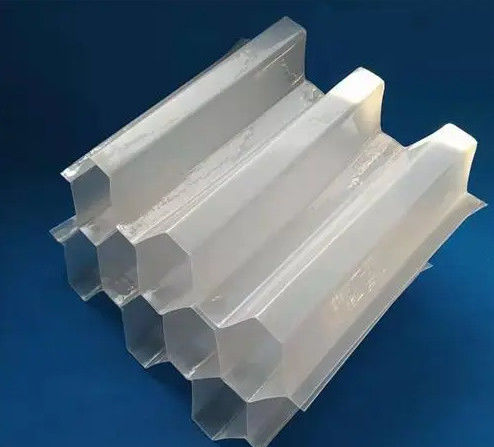

   Inclined tube packing                                                                        Slant Plate Filler                                               Warehouse finished product area

Primary Tube Settler In Sedimentation Tank Etp Pvc 0Main Technical Parameters

Primary Tube Settler In Sedimentation Tank Etp Pvc 8
Primary Tube Settler In Sedimentation Tank Etp Pvc 9
Q: Can you print our logo on the outer package?
A: Yes.
Q: Can I have a sample order?
A: No.
Q: What's the delivery time?
A: About 30 days.
Q: What is the lead time of an order?
A: About 7-30 days.
