Industrial Belt Filter Press Solid Liquid Separation Processes

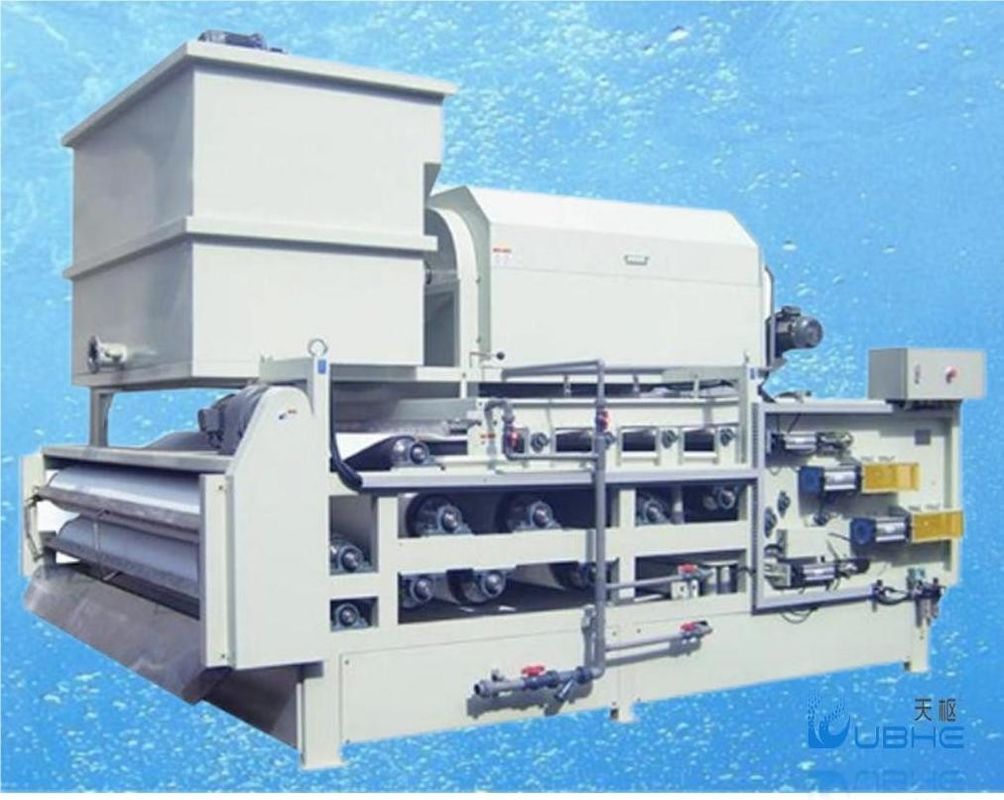

Belt Filter Press Two Stage Type Rotary Drum Solid Liquid Separate Machine
For High Concentration(TSS:1.5%-3.5%)High-duty Type DTE-750
Product Description
Widely used in a variety of industries, the HTE belt filter press combines the thickening and dewatering processes into an integrated machine for sludge and wastewater treatment.
The belt filter press is an industrial filtration system that separates solids and liquids from a slurry mixture by passing the mixture through a loop of belts that act as filters.
Application
1. The sludge dewatering of the various industrial wastewater treatment plants.
2. The sludge dewatering of the butchery, livestock, etc.
3. The sludge dewatering of the city sewer, excretion, water purifying, etc. Sewage treatment plants.
4. Solid and liquid separate under processing for the food & beverage, chemical industry, mine, etc.
Product Features
1. Integrated sludge dewatering system, continuous auto running
2. Flocculation system with patent reduces polymer consumption;
3. The main structure is made of stainless steel
5. High resistance to corrosion.6. A device that uses air pressure to create tension.
7. 9-segment press rollers.
Benefits
1. Continuous automatic operation.
2. Low power consumption, the longevity of service;
3. Simple to handle and simple to upkeep.
4. Low noise, low consumption of PAM dosage ;
5. Economical, reliable, and wide application.
Belt Position Correcting System
This system can automatically keep detecting and rectifying the deviation of belt cloth, so as to guarantee the normal operation of our machine and also extend the lifespan of the belt.
■Press Roller
The press roller of our sludge belt filter press is made from SUS304 stainless steel. Additionally, it has gone through the TIG reinforced welding process and fine finishing process, thus featuring a compact structure and ultra-high strength.
■Device for controlling air pressure.
The filter cloth is tensioned by an air cylinder, ensuring smooth and safe operation without any leakage.
How Our Belt Filter Press Works
- After flocculation and compression periods, the slurry is delivered to a porous belt for thickening and gravity dewatering.
- A large amount of free water is separated by gravity, and then the slurry solids are formed.
- Subsequently, the sludge is squeezed between two taut belts and travels through the pre-compression zone, low-pressure zone, and high-pressure zone shaped like a wedge.
- It is gradually pressed to maximize the separation of water and sludge.
- At last, the filter cake is formed and discharged.
Technical Data & External Dimensions of Belt Filter Press
Remark:
1. Our company will reserve the modifying right of the above specifications.
2. Treating capacity and the water content rate depend on the slurry feature
3. Please ask for the actual installation dimension before ordering.
Allocation Schema for Peripheral Equipment
Welcome To DUBHE
Q1: Can you print our logo on the outer package?
A: Yes, you can.
Q2: Can we visit your company and factory?
A: Sure, if you can visit the factory, we will have relevant personnel to explain the products to you.
Q3: Can you accept mixed batches of different products?
A: We can accept the mixing of different equipment.
Q4: What is the lead time of an order?
A: About 30 to 60 days.
