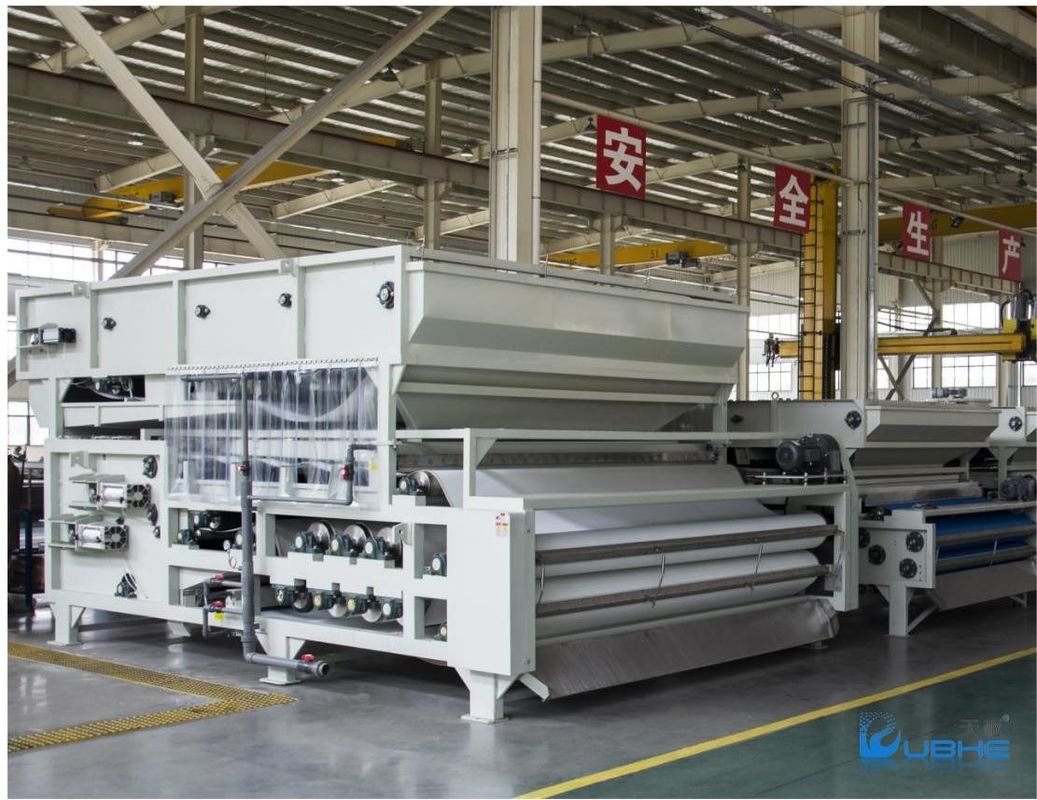

Three Belt Filter Press System For Solid Liquid Separation

Three Belt Filter Press System For Solid Liquid Separation

belt filter system

Three Belt Filter Press

Belt Filter Press system

Place of Origin:

CHINA

Brand Name:

DUBHE

Certification:

ISO

Model Number:

DTE3-1000

Contact Us

Request A Quote
Product Details
Product Name:
High-duty Three Filter Belt Gravity Belt
Belt Width (mm):
1000
Treating Capacity (m3 /hr):
18.0~28.0
Capacity:
Large
Power:
High
Application:
Dewatering Municipal And Industrial Sludge
Control System:
PLC
Pressure:
High Pressure
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Product Description

High-duty Industrial Three Belt Filter Press for Solid Liquid Separation Processes DTE3-1000

Industrial Belt Filter Press Solid Liquid Separation Processes-High-duty type-Suitable for Low/Middle Consistency DTE3-1000

Three Belt Filter Press System For Solid Liquid Separation 0DESCRIPTION

A belt filter press is a type of equipment used for solid-liquid separation processes in various industries, including wastewater treatment, mining, chemical, and food processing. It typically consists of a series of belts or filter media that pass through a system, applying pressure to remove water or separate solids from liquids.

Automation and Control: Advanced models of belt filter presses may feature automation and control systems, allowing for precise control of process parameters, such as belt speed, pressure, and cake thickness.



Three Belt Filter Press System For Solid Liquid Separation 0APPLICATION

Pharmaceutical Industry: In pharmaceutical manufacturing, the product can be applied for solid-liquid separation in processes like active ingredient recovery, purification of drug intermediates, or dewatering of pharmaceutical sludge.

Chemical Sludge Treatment: Industrial facilities generating chemical sludge, such as from electroplating or paint manufacturing, can use the DTE3-1000 for dewatering and separating the solids from the liquid phase. This facilitates proper disposal or potential recovery of valuable materials.

Three Belt Filter Press System For Solid Liquid Separation 0FEATURES

Three Belt Filter Press System For Solid Liquid Separation 3Integrated sludge dewatering system, continuous auto running;

Belt Thickener effectively improves the sludge solid content and flocculation

Flocculation system with patent reduces polymer consumption;

Good corrosion resistance;

The main structure is made of stainless steel;

Pneumatic tensioning device;

7-segment to 9-segment press rollers.

Three Belt Filter Press System For Solid Liquid Separation 0BENEFITS

Continuous auto running;

Low power consumption, the longevity of service;

Easy to manage, easy to maintain;

Low noise, low consumption of PAM dosage ;

Economical, reliable, and wide application.

Three Belt Filter Press System For Solid Liquid Separation 0Belt Position Correcting System

This system can automatically keep detecting and rectifying the deviation of belt cloth, so as to guarantee the normal operation of our machine and also extend the lifespan of the belt.

■Press Roller
The press roller of our sludge belt filter press is made from SUS304 stainless steel. Additionally, it has gone through the TIG reinforced welding process and delicate finishing process, thus featuring a compact structure and ultra-high strength.

■Air Pressure Control Device
Tensioned by an air cylinder, the filter cloth can run smoothly and safely without any leakage.

Three Belt Filter Press System For Solid Liquid Separation 0How Our Belt Filter Press Works

- After flocculation and compression periods, the slurry is delivered to a porous belt for thickening and gravity dewatering.

- A large amount of free water is separated by gravity, and then the slurry solids are formed.

- After that, the slurry is sandwiched between two tensioned belts to pass through the wedge-shaped pre-compression zone, low-pressure zone, and high-pressure zone.

- It is extruded step by step, so as to maximize the separation of sludge and water.

- At last, the filter cake is formed and discharged.

Three Belt Filter Press System For Solid Liquid Separation 7

Three Belt Filter Press System For Solid Liquid Separation 0Technical Data & External Dimensions of Belt Filter Press

Three Belt Filter Press System For Solid Liquid Separation 9   Remark:
  1. Our company will reserve the modifying right of the above specifications.
  2. Treating capacity and the water content rate depend on the slurry feature

  3. Please ask for the actual installation dimension before ordering.

Three Belt Filter Press System For Solid Liquid Separation 0Allocation Schema for Peripheral Equipment

Three Belt Filter Press System For Solid Liquid Separation 11

Three Belt Filter Press System For Solid Liquid Separation 0The Reference Treating Data Sheet of The Major Waste Slurry

Three Belt Filter Press System For Solid Liquid Separation 13

Three Belt Filter Press System For Solid Liquid Separation 0Welcome To DUBHE

Three Belt Filter Press System For Solid Liquid Separation 15 Three Belt Filter Press System For Solid Liquid Separation 16 Three Belt Filter Press System For Solid Liquid Separation 17

Three Belt Filter Press System For Solid Liquid Separation 18

Q1: What's the MOQ?
A: The MOQ is one set.
Q2: Do you have an inspection report for the material?
A: We can provide you with the relative certificates
Q3: Do you have any MOQ limit?
A: As our machine is very large, the minimum purchase quantity is one.
Q4: Can you print our logo on the outer package?
A: Yes, you can.
