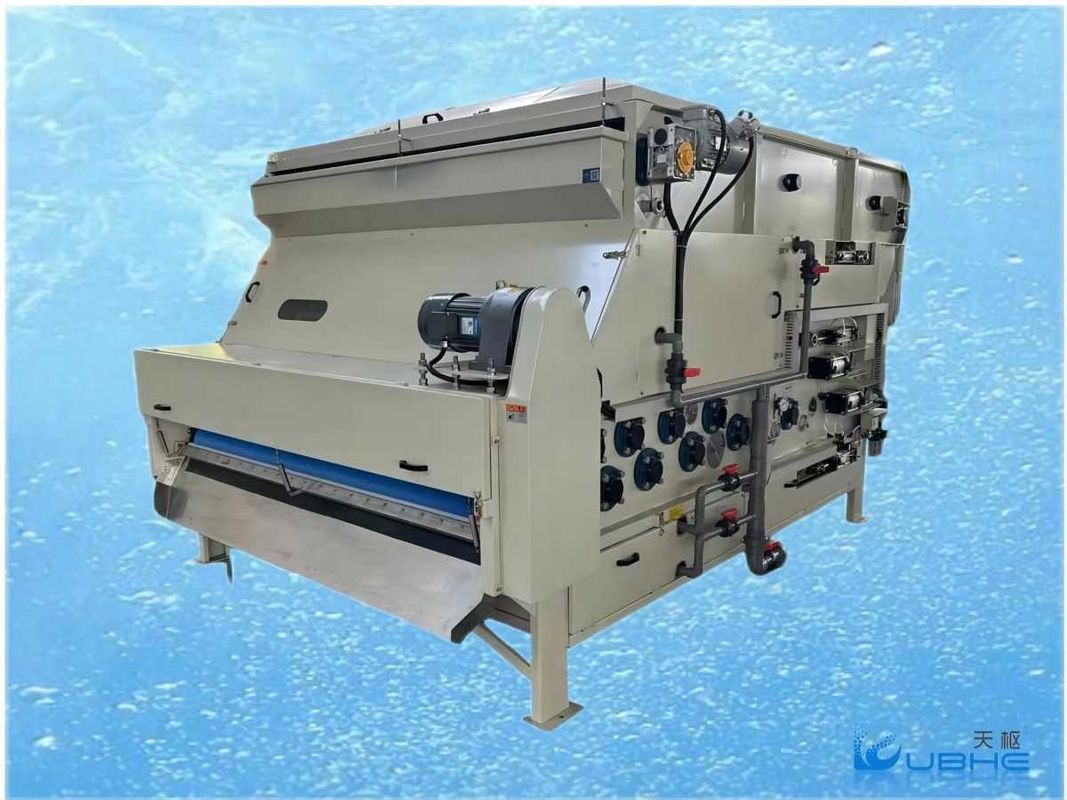

Sludge Dewatering Gravity Belt Thickener Three Filter Belt Type Filter Press

Sludge Dewatering Gravity Belt Thickener Three Filter Belt Type Filter Press

gravity belt thickener sludge

sludge dewatering gravity belt thickener

Belt Type Filter Press

Place of Origin:

CHINA

Brand Name:

DUBHE

Model Number:

DTB3-750

Contact Us

Request A Quote
Product Details
Features:
Continuous Auto Running;
Product Name:
Three Filter Belt Gravity Belt
Belt Width (mm):
750
Treating Capacity (m3 /hr):
9.9~18.0
Water Content Rate (%):
65~84
Control System:
PLC
Application:
Dewatering Municipal And Industrial Sludge
Material:
Stainless Steel
Payment & Shipping Terms
Minimum Order Quantity
1Set
Payment Terms
L/C, T/T
Product Description

Industrial Belt Filter Press Solid Liquid Separation Processes-Standard Type-Suitable for Low/Middle Consistency

Sludge Dewatering Gravity Belt Thickener Three Filter Belt Type Filter Press 0Description

An industrial machine called a belt filter press, sometimes referred to as a belt press filter or belt filter, is used for solid-liquid separation processes.

Used to separate liquids and solids from a slurry mixture, a belt filter press is a type of industrial filtration equipment. It operates by passing the slurry through a series of belts arranged in a loop, which act as filters to remove impurities.

Sludge Dewatering Gravity Belt Thickener Three Filter Belt Type Filter Press 0Application

1. Various industrial wastewater treatment plants require sludge dewatering.

2. Butchery, livestock, and other industries necessitate sludge dewatering.

3. City sewers, excretion, and water purifying demand sludge dewatering in sewage treatment plants.

4. The food & beverage, chemical industry, mine, etc., undergo solid and liquid separation during processing.

Sludge Dewatering Gravity Belt Thickener Three Filter Belt Type Filter Press 0Features

Integrated sludge dewatering system, continuous auto running;

Belt Thickener effectively improves the sludge solid content and flocculation

Flocculation system with patent reduces polymer consumption;

Good corrosion resistance;

The main structure is made of stainless steel;

Pneumatic tensioning device;

7-segment to 9-segment press rollers.

Sludge Dewatering Gravity Belt Thickener Three Filter Belt Type Filter Press 3

















Sludge Dewatering Gravity Belt Thickener Three Filter Belt Type Filter Press 0Benefits:

Automated Control System: The product may feature an advanced control system that automates various operations and provides real-time monitoring of crucial parameters. This system ensures precise control, optimal performance, and allows for easy adjustments during operation, reducing the need for manual intervention.

Compact Design: The machine is designed with a compact footprint, making it suitable for installations with limited space. Its compact design allows for easy integration into existing industrial processes without requiring significant modifications or additional space.

Sludge Dewatering Gravity Belt Thickener Three Filter Belt Type Filter Press 0Belt Position Correcting System

This system can automatically keep detecting and rectifying the deviation of belt cloth, so as to guarantee the normal operation of our machine and also extend the lifespan of the belt.

■Press Roller
The press roller of our sludge belt filter press is made from SUS304 stainless steel. Additionally, it has gone through the TIG reinforced welding process and delicate finishing process, thus featuring a compact structure and ultra-high strength.

■Air Pressure Control Device
Tensioned by an air cylinder, the filter cloth can run smoothly and safely without any leakage.

Sludge Dewatering Gravity Belt Thickener Three Filter Belt Type Filter Press 0How Our Belt Filter Press Works

- After flocculation and compression periods, the slurry is delivered to a porous belt for thickening and gravity dewatering.

- A large amount of free water is separated by gravity, and then the slurry solids are formed.

- After that, the slurry is sandwiched between two tensioned belts to pass through the wedge-shaped pre-compression zone, low-pressure zone, and high-pressure zone.

- It is extruded step by step to maximize the separation of sludge and water.

- At last, the filter cake is formed and discharged.

Sludge Dewatering Gravity Belt Thickener Three Filter Belt Type Filter Press 7

Sludge Dewatering Gravity Belt Thickener Three Filter Belt Type Filter Press 0Technical Data & External Dimensions of Belt Filter Press

Sludge Dewatering Gravity Belt Thickener Three Filter Belt Type Filter Press 9

   Remark:
   1. Our company will reserve the modifying right of the above specifications.
   2. Treating capacity and the water content rate depend on the slurry feature

   3. Please ask for the actual installation dimension before ordering.

Sludge Dewatering Gravity Belt Thickener Three Filter Belt Type Filter Press 0Allocation Schema for Peripheral Equipment



Sludge Dewatering Gravity Belt Thickener Three Filter Belt Type Filter Press 11

Sludge Dewatering Gravity Belt Thickener Three Filter Belt Type Filter Press 0The Reference Treating Data Sheet of The Major Waste Slurry

Sludge Dewatering Gravity Belt Thickener Three Filter Belt Type Filter Press 13

Sludge Dewatering Gravity Belt Thickener Three Filter Belt Type Filter Press 0Welcome to DUBHE

 Sludge Dewatering Gravity Belt Thickener Three Filter Belt Type Filter Press 15 Sludge Dewatering Gravity Belt Thickener Three Filter Belt Type Filter Press 16 Sludge Dewatering Gravity Belt Thickener Three Filter Belt Type Filter Press 17

Sludge Dewatering Gravity Belt Thickener Three Filter Belt Type Filter Press 18

Q1: How to pay?

A: 100%T/T, Paypal, West Union, MoneyGram, Secure payment and Trade Assurance.

Q2: What's the delivery time?

A: 30-60 days.

Q3: What's the MOQ?

A: 1 set.

Q4: What is the lead time of an order?

A: About 30 to 60 days.
