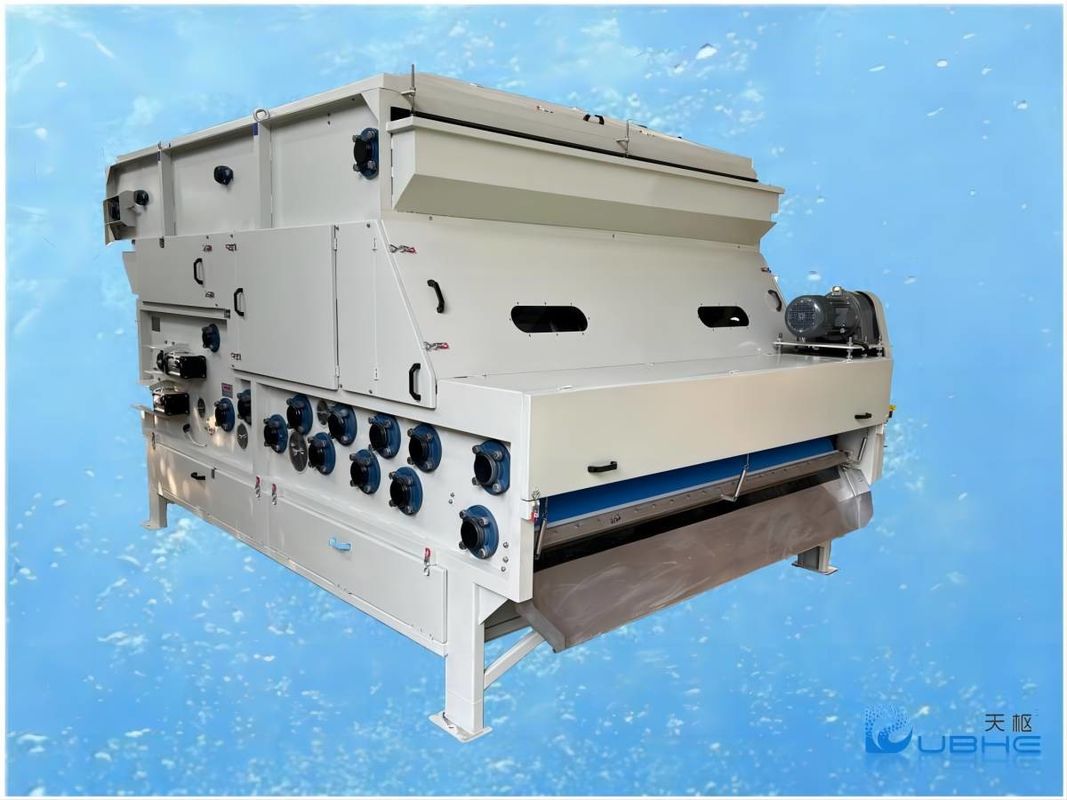

Stainless Steel Belt Filter Press For Wastewater Treatment Solid Liquid Separator

Stainless Steel Belt Filter Press For Wastewater Treatment Solid Liquid Separator

stainless steel filter press

belt filter press for wastewater treatment

Solid Liquid Separator

Place of Origin:

CHINA

Brand Name:

DUBHE

Model Number:

DTB3-2500

Contact Us

Request A Quote
Product Details
Features:
Continuous Auto Running;
Product Name:
Three Filter Belt Gravity Belt
Belt Width (mm):
2500
Treating Capacity (m3 /hr):
40~81.0
Water Content Rate (%):
65~84
Weight(kg):
5650
Application:
Dewatering Municipal And Industrial Sludge
Material:
Stainless Steel
Payment & Shipping Terms
Minimum Order Quantity
1Set
Payment Terms
L/C, T/T
Product Description

Stainless Steel Belt Filter Press for Solid-Liquid Separation DTB3-2500



Industrial Belt Filter Press Solid Liquid Separation Processes-Standard Type-Suitable for Low/Middle Consistency

Stainless Steel Belt Filter Press For Wastewater Treatment Solid Liquid Separator 0Description

Energy-Efficient Design: The product incorporates energy-efficient features to minimize power consumption during operation. This design not only reduces operational costs but also contributes to environmental sustainability.​

Compact Footprint: The machine is designed with a compact footprint, making it suitable for installations with limited space. It can be easily integrated into existing industrial processes without requiring significant modifications.

Stainless Steel Belt Filter Press For Wastewater Treatment Solid Liquid Separator 0Application

1. The sludge dewatering of the various industrial wastewater treatment plants.

2. The sludge dewatering of the butchery, livestock, etc.

3. The sludge dewatering of the city sewer, excretion, water purifying, etc. Sewage treatment plants.

4. Solid and liquid separate under processing for the food & beverage, chemical industry, mine, etc.

Stainless Steel Belt Filter Press For Wastewater Treatment Solid Liquid Separator 0Features

Efficient Filtration and Separation: The three-filter belt design ensures efficient filtration and separation of solids and liquids. The filter belts capture and retain solid particles while allowing the passage of liquid, facilitating the separation process and producing a drier and more concentrated sludge cake.

Automated Controls and Monitoring: The product may incorporate an advanced control system that automates various operations and provides real-time monitoring of crucial parameters. This system ensures precise control, and optimal performance, and allows for easy adjustments during operation.







Stainless Steel Belt Filter Press For Wastewater Treatment Solid Liquid Separator 3











Stainless Steel Belt Filter Press For Wastewater Treatment Solid Liquid Separator 0Benefits:

Improved Solid-Liquid Separation: The three-filter belt configuration of the machine enables efficient solid-liquid separation. It effectively captures and retains solid particles while allowing the passage of liquid, resulting in a drier and more concentrated sludge cake with reduced moisture content.

Versatility: The product is versatile and can be used for various industrial applications. It is suitable for sludge dewatering in industries such as wastewater treatment plants, food and beverage, chemical, mining, and more. Its adaptability makes it a valuable asset across different sectors.

Stainless Steel Belt Filter Press For Wastewater Treatment Solid Liquid Separator 0Belt Position Correcting System

This system can automatically keep detecting and rectifying the deviation of belt cloth, so as to guarantee the normal operation of our machine and also extend the lifespan of the belt.

■Press Roller
The press roller of our sludge belt filter press is made from SUS304 stainless steel. Additionally, it has gone through the TIG reinforced welding process and delicate finishing process, thus featuring a compact structure and ultra-high strength.

■Air Pressure Control Device
Tensioned by an air cylinder, the filter cloth can run smoothly and safely without any leakage.

Stainless Steel Belt Filter Press For Wastewater Treatment Solid Liquid Separator 0How Our Belt Filter Press Works

- After flocculation and compression periods, the slurry is delivered to a porous belt for thickening and gravity dewatering.

- A large amount of free water is separated by gravity, and then the slurry solids are formed.

- After that, the slurry is sandwiched between two tensioned belts to pass through the wedge-shaped pre-compression zone, low-pressure zone, and high-pressure zone.

- It is extruded step by step to maximize the separation of sludge and water.

- At last, the filter cake is formed and discharged.

Stainless Steel Belt Filter Press For Wastewater Treatment Solid Liquid Separator 7

Stainless Steel Belt Filter Press For Wastewater Treatment Solid Liquid Separator 0Technical Data & External Dimensions of Belt Filter Press

Stainless Steel Belt Filter Press For Wastewater Treatment Solid Liquid Separator 9

   Remark:
   1. Our company will reserve the modifying right of the above specifications.
   2. Treating capacity and the water content rate depend on the slurry feature

   3. Please ask for the actual installation dimension before ordering.

Stainless Steel Belt Filter Press For Wastewater Treatment Solid Liquid Separator 0Allocation Schema for Peripheral Equipment



Stainless Steel Belt Filter Press For Wastewater Treatment Solid Liquid Separator 11

Stainless Steel Belt Filter Press For Wastewater Treatment Solid Liquid Separator 0The Reference Treating Data Sheet of The Major Waste Slurry

Stainless Steel Belt Filter Press For Wastewater Treatment Solid Liquid Separator 13

Stainless Steel Belt Filter Press For Wastewater Treatment Solid Liquid Separator 0Welcome to DUBHE

 Stainless Steel Belt Filter Press For Wastewater Treatment Solid Liquid Separator 15 Stainless Steel Belt Filter Press For Wastewater Treatment Solid Liquid Separator 16 Stainless Steel Belt Filter Press For Wastewater Treatment Solid Liquid Separator 17

Stainless Steel Belt Filter Press For Wastewater Treatment Solid Liquid Separator 18

Q1: How to pay?

A: 100%T/T, Paypal, West Union, MoneyGram, Secure payment and Trade Assurance.

Q2: What's the delivery time?

A: 30-60 days.

Q3: What's the MOQ?

A: 1 set.

Q7: Can we visit your company and factory?

A: Sure, if you can visit the factory, we will have relevant personnel to explain the products to you.
