Mechanical Multi Disc Screw Press Dewatering Efficiency High Filter

Mechanical Multi Disc Screw Press Dewatering Efficiency High Filter

mechanical screw press

Disc screw press dewatering efficiency

screw press filter

Place of Origin:

CHINA

Brand Name:

DUBHE

Certification:

ISO

Model Number:

TSDL

Contact Us

Request A Quote
Product Details
Product Name:
Multi-disk Screw Press
Control System:
PLC
Maintenance:
Easy
Material:
Stainless Steel
Noise Level:
Low
Warranty:
One Year
Color:
White Or Printed
Power:
High Power
Payment & Shipping Terms
Minimum Order Quantity
1Set
Delivery Time
5-8 Weeks
Payment Terms
L/C, T/T, Western Union
Product Description

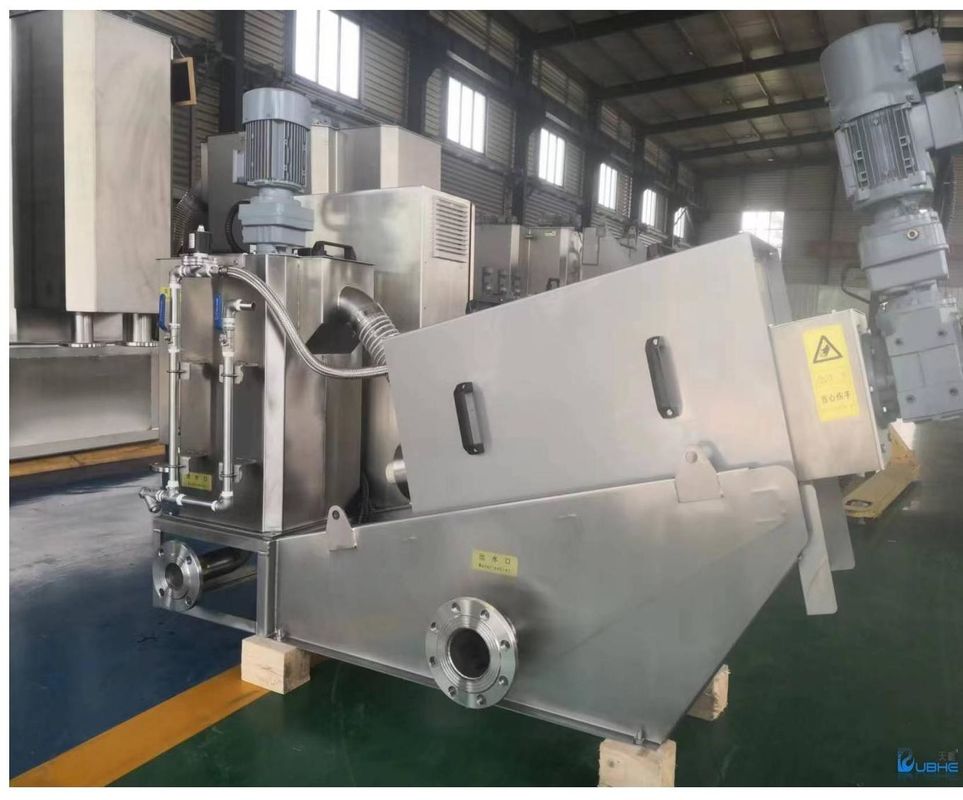

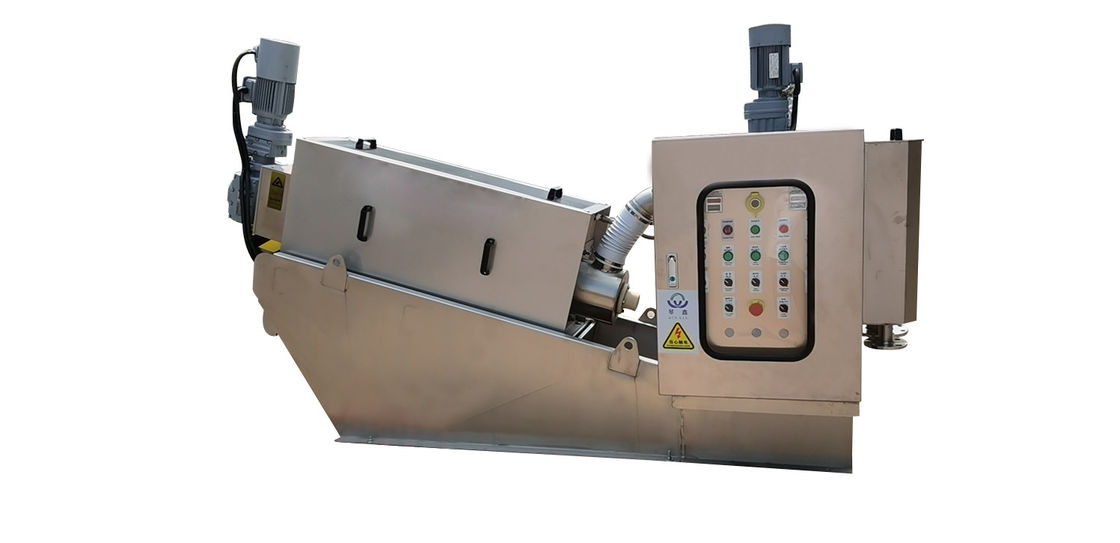

Multi-Disk Screw Press for Oily Sludge Handling TSDL-353



Multi-Disk Screw Press for Oily Sludge Handling

Mechanical Multi Disc Screw Press Dewatering Efficiency High Filter 0Description

Screw Press Operation: The Multi-Disk Screw Press incorporates a screw mechanism within the system. The rotating screw assists in the transportation and compaction of the dewatered sludge or solids. It ensures a continuous flow of material through the press and assists in maintaining the desired moisture level in the discharged product.

Mechanical Multi Disc Screw Press Dewatering Efficiency High Filter 0Construction Principle

The main body of the stacked screw sludge dewatering machine is composed of multiple fixed rings and swimming rings, and the screw shaft runs through it to form a filtering device.

The front section is the concentration section, and the back section is the dehydration section, which completes the sludge concentration and dehydration in one cylinder and replaces the traditional filter cloth and centrifugal filtration methods with a unique and subtle filter pattern.



Mechanical Multi Disc Screw Press Dewatering Efficiency High Filter 2

Mechanical Multi Disc Screw Press Dewatering Efficiency High Filter 0Features

Optimization and Efficiency: The combination of programmable control, accurate operation, and automation features allows for optimization and increased efficiency in the dewatering process. The system can be fine-tuned to achieve the desired level of moisture removal, reducing the sludge volume and improving the overall performance of the system.

Mechanical Multi Disc Screw Press Dewatering Efficiency High Filter 0ADVANTAGES

Widely used in many industries sludge treatment including municipal sewage, food, slaughtering breeding, printing, dyeing, oil chemical, Paper industry, leather, pharmaceutical, etc.

Oily sludge handling capability.

Ability to handle low-concentration sludge from 2000 mg/l up to 50000 mg/l.

The rotating ring and automatic spray cleaning system provide self-cleaning ability during the process and prevent clogging, allowing a continued operation for 24 hours without user assistance.

Control panel equipped with inverters and PLC for automatic and manual function.

Wear-free structure, long service life, and utilizing a small footprint for installation.

Mechanical Multi Disc Screw Press Dewatering Efficiency High Filter 5

Mechanical Multi Disc Screw Press Dewatering Efficiency High Filter 0PARAMETER

 Mechanical Multi Disc Screw Press Dewatering Efficiency High Filter 7

Mechanical Multi Disc Screw Press Dewatering Efficiency High Filter 8

Q1: Can we visit your company and factory?

A: Sure, if you can visit the factory, we will have relevant personnel to explain the products to you.

Q2: What's the delivery time?

A: 30-60 days

Q3: What's the MOQ?

A: The MOQ is one set

Q4: Do you have an inspection report for the material?

A: We can provide you with the relative certificates.
