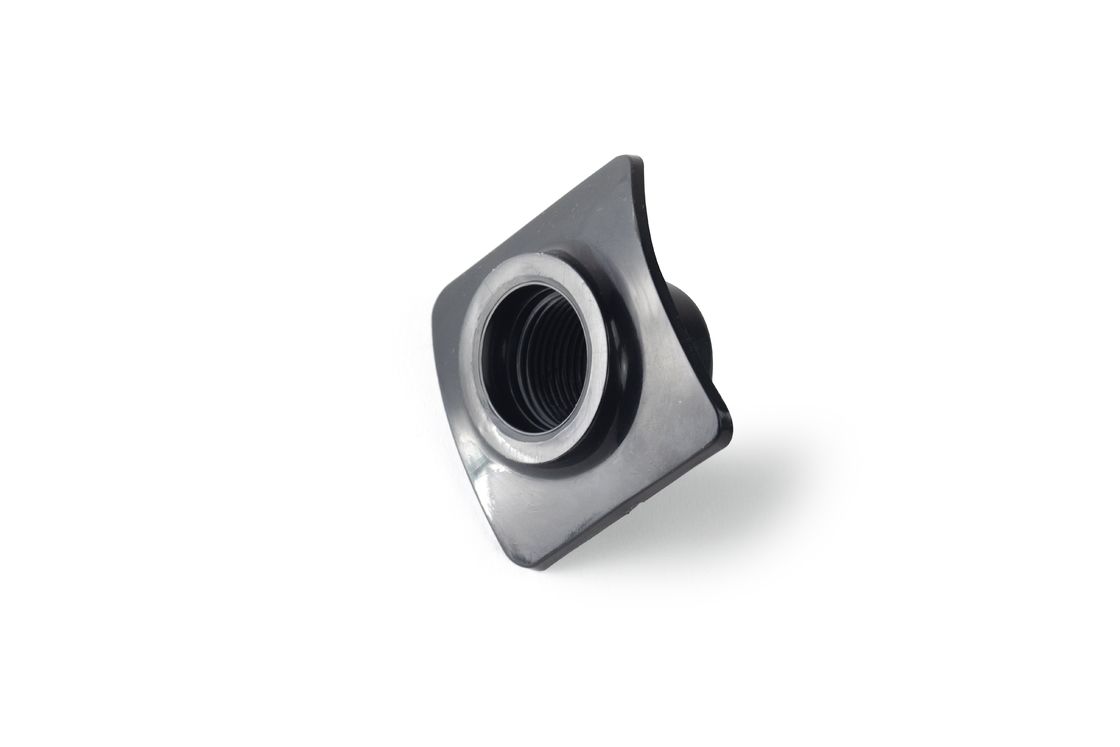

Cast Coarse Cap Diffuser Components With GR4-110 Grommet

Cast Coarse Cap Diffuser Components With GR4-110 Grommet

EPDM Membrane Diffuser Components

Coarse Cap Diffuser Components

SSI Aeration Diffusers Coarse Cap

Place of Origin:

Korea

Brand Name:

SSI

Certification:

ISO

Model Number:

GR4

Contact Us

Request A Quote
Product Details
Membrane:
EPDM / PTFE / FEPDM™ / Viton
GR4 Grommet:
PVC-3/4"NPT[F]
Hole Size On Pi Pe(Cham Fered):
10 X0.2 Inch Holes
Design Air Flow Range:
7 To 10 Sm³/hr
Color:
Black
Installation:
Easy Installation
Payment & Shipping Terms
Product Description


DESCRIPTION

  • These diffusers feature cast endcaps that are welded all around for added durability.
  • A typical system that uses SSI WBCB diffusers is constructed from stainless steel pipes. These pipes have ¾” FNPT gusseted tees or elbows welded to the bottom center line.
  • While each diffuser comes with deflectors, they are removable if needed.

Cast Coarse Cap Diffuser Components With GR4-110 Grommet 0

Cast Coarse Cap Diffuser Components With GR4-110 Grommet 1Grommet Connection

This excellent diffuser from SSI is an on-clog type that automatically closes and seals completely when air is turned off. Unlike stainless steel wideband-type diffusers, this model will not be clogged by rags in the tank.

Cast Coarse Cap Diffuser Components With GR4-110 Grommet 2

Caps are predominantly employed in aerobic digesters and equalization tanks when there's no need for high-rate oxygen transfer efficiency. They are crafted from black Acetyl plastic with UV protection, and the membranes are composed of the same EPDM compound found in SSI's fine bubble disc diffusers. These caps feature a 3/4" MNPT thread. SSI's Cap diffuser is designed to prevent clogs and functions effectively under both intermittent and continuous conditions. A typical piping system that utilizes SSI AFC75 diffusers is constructed using PVC, CPVC, or Stainless Steel pipes, along with grommets, drilled and tapped pipes, or welded ¾” FNPT SS bosses positioned at the top center line.

Cast Coarse Cap Diffuser Components With GR4-110 Grommet 3

Cast Coarse Cap Diffuser Components With GR4-110 Grommet 1Reference Data



Cast Coarse Cap Diffuser Components With GR4-110 Grommet 5

Cast Coarse Cap Diffuser Components With GR4-110 Grommet 6

Cast Coarse Cap Diffuser Components With GR4-110 Grommet 1Application

Sludge Oxidation: In wastewater treatment, aeration trays are used to provide oxygen to induce microorganisms in the sludge to oxidize organic matter.

Gas transfer: Aeration trays are used to transfer gases into the water for chemical treatment or to improve specific properties of the water body.

Sedimentation of Suspended Matter: Through the movement of bubbles, aeration trays help to induce suspended matter to settle to the bottom of the water column for easier treatment and removal.

Cast Coarse Cap Diffuser Components With GR4-110 Grommet 8

Cast Coarse Cap Diffuser Components With GR4-110 Grommet 9

Q: Do you have any MOQ limit?
A: YES
Q: Can you print our logo on the outer package?
A: Yes
Q: Can we visit your company and factory?
A: Yes, you can
Q: Can you accept mixed batches of different products?
A: Yes.
