Stainless Steel Hydraulic Compress Chamber Filter Press Recessed Chamber Plate Center/Corner Inlet

Stainless Steel Hydraulic Compress Chamber Filter Press Recessed Chamber Plate Center/Corner Inlet

Recessed Chamber Plate Center Filter Press

Stainless Steel Material Chamber Filter Press

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Plate Type:
Chamber Plate
Filter Plate Type:
Recessed Chamber, Plate And Frame, Membrane
Filter Plate Material:
Polypropylene, Cast Iron, Stainless Steel
Press Type:
Hydraulic Compress
Stainless Steel
Slurry Inlet Type:
Center, Corner
Payment & Shipping Terms
Product Description

Product Description:

The plates and frames are arranged one after another, and the two sides of the plates are covered with filter cloth, and the plates and frames are pressed together with a pressing device, i.e. the plates and frames form a filter press chamber. There is a small hole in the middle of the upper part of the plate and frame, which becomes a channel after pressing, and the sludge pressurised to 0.2~0.4MPa enters into the chamber through this channel, and there are grooves engraved on the surface of the filter plate, and there is an aperture drilled at the lower end for the filtrate to be discharged, and the filtrate, under pressure, passes through the cloth, and is discharged out of the filtering machine through the grooves and apertures, so as to make the sludge dewatered. Automated plate and frame filter presses have been developed at home and abroad. Plate and frame filter press can withstand higher sludge specific resistance than vacuum filter, so that the consumption of conditioning agent can be reduced, and cheaper agents (e.g. FeSO4-7H2O) can be used. When the sludge specific resistance is 5×1011~8×1012m/kg, it can be filtered directly without pre-conditioning. The sludge cake yield and sludge cake water content of the plate and frame filter press should be determined according to the test data or similar operating experience. The water content of the mud cake can generally be 75%~80%.

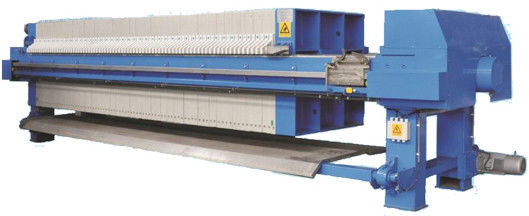

Stainless Steel Hydraulic Compress Chamber Filter Press Recessed Chamber Plate Center/Corner Inlet 0Usually, the structure of plate and frame filter press mainly includes: passive sprocket, thrust plate assembly, filter plate compression plate, support, plate puller, compression plate assembly, cylinder seat assembly, active sprocket, hydraulic station, electric control box and so on.


  • Product Name: Chamber Filter Press
  • Filter Plate Material: Polypropylene, Cast Iron, Stainless Steel
  • Material: Stainless Steel
  • Plate Type: Chamber Plate
  • Filter Plate Type: Recessed Chamber, Plate And Frame, Membrane
  • Slurry Inlet Type: Center, Corner
  • Industrial Filter Press
  • Sludge Dewatering Press

Technical Parameters:

Technical Parameter Description
Slurry Inlet Type Center, Corner
Plate Type Chamber Plate
Filter Plate Type Recessed Chamber, Plate And Frame, Membrane
Press Type Hydraulic Compress
Material Stainless Steel
Filter Plate Material Polypropylene, Cast Iron, Stainless Steel


Brand Name: DUBHE's Model Number: DUBHE Chamber Filter Press is a versatile piece of equipment designed for a multitude of applications where solid-liquid separation is required. Manufactured with high precision in China, this filter press embodies top-notch quality and innovative engineering. The DUBHE Chamber Filter Press is equipped with a slurry inlet type that can be either centered or cornered, depending on the specific needs of the operation, making it a flexible solution for various scenarios.

With its robust Hydraulic Compress press type, the DUBHE Chamber Filter Press ensures efficient operation and consistent performance. This hydraulic filter press is particularly ideal in scenarios where heavy-duty dewatering is required, such as in the mining and chemical industries. The hydraulic system provides a high-pressure seal and short cycle times, which translates to increased productivity and reduced operational costs.

The filter plate material of the DUBHE Chamber Filter Press is customizable and includes options such as Polypropylene, Cast Iron, and Stainless Steel. These materials are selected for their durability and resistance to corrosive materials, making the press suitable for a wide range of industrial applications. The plate type is a chamber plate, which is perfect for sludge dewatering press applications, as it allows for the efficient removal of moisture from sludge, resulting in a dry cake that is easy to dispose of or further process.

The filter plate type comes in various designs, including Recessed Chamber, Plate and Frame, and Membrane. Each type has its specific application benefits, and the choice depends on the particular requirements of the dewatering task at hand. For instance, the Recessed Chamber and Membrane plates are excellent for operations requiring high filtration clarity and dry solids, while the Plate and Frame design is suitable for processes where filter cake washing is necessary.

Furthermore, the DUBHE Chamber Filter Press can be upgraded to an automatic filter press, which integrates automated features such as plate shifting, cloth washing, and drip trays. This automation enhances the efficiency of the filtration process, reduces labor costs, and minimizes the risk of exposure to potentially hazardous materials. The automatic filter press is highly applicable in scenarios where continuous, high-volume filtration is needed, such as in wastewater treatment plants, food and beverage production, and pharmaceutical manufacturing.

Overall, the DUBHE Chamber Filter Press is an exceptional choice for industries requiring reliable and efficient solid-liquid separation. Its diverse range of applications, from environmental to industrial, ensures that this hydraulic filter press, sludge dewatering press, and automatic filter press can meet the demands of modern businesses looking for high-quality, cost-effective filtration solutions.



Experience the efficiency of the DUBHE Automatic Filter Press, a leading solution for your filtration needs. Our DUBHE model is engineered with a hydraulic compress system, ensuring high-performance operation in various industrial applications. Proudly made in China, this industrial filter press stands out with its robust construction.

The DUBHE Hydraulic Filter Press boasts a chamber plate design, crafted from the finest stainless steel to guarantee longevity and reliability. Our customization options extend to the filter plate material, allowing you to choose from durable polypropylene, cast iron, or stainless steel, depending on your specific requirements.

Designed for convenience and versatility, the slurry inlet of this industrial filter press can be configured to either a center or corner entry, providing flexibility to accommodate different system layouts. Trust in the DUBHE brand for your filtration processes, and benefit from a filter press that is synonymous with quality and performance.


Support and Services:

Our Chamber Filter Press products come with comprehensive technical support and services designed to ensure that your equipment operates at peak performance. Our support includes access to a wealth of resources and a team of experienced professionals who are ready to assist you with any technical questions or issues you may encounter.

We provide detailed product manuals and troubleshooting guides to help you understand the ins and outs of your Chamber Filter Press. These documents are designed to address common issues and provide clear instructions for maintenance and operation.

Additionally, we offer training services to help your personnel become proficient in the use and maintenance of the filter press. Our training can be tailored to the specific needs of your team and can cover a range of topics from basic operation to advanced troubleshooting techniques.

For ongoing support, our technical team is available to provide assistance with operational challenges, optimization of press performance, and guidance on best practices for prolonging the life of your equipment. We are committed to providing quick and effective responses to your inquiries to minimize downtime and keep your operations running smoothly.

Should your Chamber Filter Press require servicing, our skilled technicians are equipped to perform a range of services from routine maintenance to complex repairs. We use only high-quality parts and state-of-the-art tools to ensure that your equipment is restored to its optimal condition.

Our commitment to your success extends beyond the initial purchase. We understand the importance of reliable equipment and are dedicated to providing the support and services necessary to maintain the efficiency and reliability of your Chamber Filter Press for years to come.
