Intelligent Upgrade Options Shrinking Disc Type Diffuser 9/12 Inch Single Mold Technology

Intelligent Upgrade Options Shrinking Disc Type Diffuser 9/12 Inch Single Mold Technology

9 inch Shrinking Disc Type Diffuser

Single Mold Shrinking Disc Type Diffuser

12 inch Disc Type Diffuser

Place of Origin:

Korea

Brand Name:

SSI

Certification:

ISO

Model Number:

ECD

Contact Us

Request A Quote
Product Details
Intelligent Upgrade Options:
Patented PTFE Membranes Prolong The Efficiency And Reduce Whole-life Costs. SSI’s Patented PTFE Membrane Barrier Properties Not Only Reduce Plasticizer Extraction, Shrinking, And Membrane Hardening But Also Limit Dynamic Changes That Can Result From Swell,
Installation Method:
SSI Disk Aerator Can Be Installed On PVC Branch Pipe Through Quick Connect Saddle, Grommet Connection, Etc. SSI Pre-installed Aeration Disk, Rotate 1/4 Turn Can Be Installed On The Quick Connect Saddle, This Saddle Is Suitable For 9" And 12" Aeration Disk
SOTE(%):
31-59
Mixed Batches:
Yes
Logo Printing:
Yes
Product Name:
EPDM SSI AFD Fine Bubble Aeration Disc Diffuser
Hole Size:
1mm Or 2mm
Membrane Thickness(mm):
2
Payment & Shipping Terms
Delivery Time
5-8weeks
Payment Terms
L/C, T/T, Western Union, L/C, T/T, Western Union
Product Description

Product Description:

The production is made with one-piece die to save costs. The ECD series aeration disk uses a new type of ethylene propylene diene rubber membrane (EPDM). When compression molded, each cavity is equipped with a separate thermocouple. This process gives manufacturers complete control over the quality of each diffusion film. SSI also ensures that each membrane's perforations are of uniform depth for even air release. The unique mechanical hole cutting technology greatly increases the number of membrane holes per unit area, ensuring that the perforations of each membrane have a uniform depth to achieve uniform air release, and ensure good opening and closing performance for one million times. The EPDM membrane we use has low plasticizer content to reduce hardening and shrinkage, while avoiding creep to achieve better aeration effects.

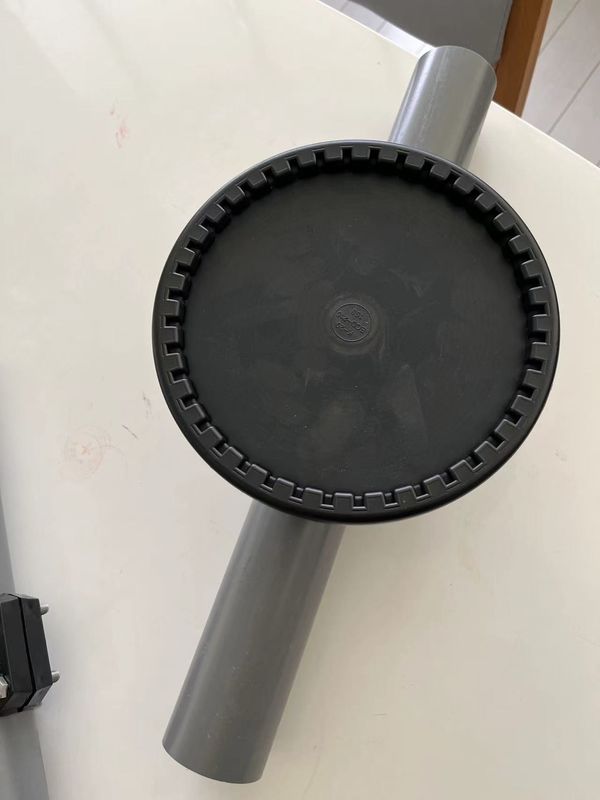

QCICK CONNECTTM saddle design is fast and convenient. It only needs to be rotated a quarter turn to instantly connect to the pipe. It has an integral seal to ensure a leak-free connection and reduce labor.

Intelligent Upgrade Options Shrinking Disc Type Diffuser 9/12 Inch Single Mold Technology 0

Features:

PTFE (polytetrafluoroethylene) E and VITON are synthetic rubbers commonly known as air rubber. They are recognized as a high-performance  material due to their broad resistance to chemicals, solvents, oils, greases, etc. that can damage traditional rubber. However, the disadvantage is that it is expensive. Therefore, SI has developed the application of fluoro rubber coating, which is permanently bonded to the surface of EPDM or other base materials through patented technology. Practice has proved that this is an effective method. SSI's new technology allows the diaphragm to not only maintain the excellent physical properties of traditional rubber materials, but also have the resistance to chemicals, solvents and fats found only in the world's most advanced rubber materials, and you can afford it. Many sewage treatment plants that have experienced diaphragm damage due to calcium deposits and solvent corrosion have proven that SSI's new fluoroelastomer-coated EPDM diaphragms will neither produce scaling nor cause any changes in material properties during use. Change.Intelligent Upgrade Options Shrinking Disc Type Diffuser 9/12 Inch Single Mold Technology 1

Technical Parameters:

Technical Parameter Value
Product Name EPDM SSI AFD Fine Bubble Aeration Disc Diffuser
Product Category SSI Aeration Diffusers
Installation Method Can be installed on PVC branch pipe through quick connect saddle, Grommet connection, etc.
Intelligent Upgrade Options Patented PTFE membranes prolong the efficiency and reduce whole-life costs. SSI’s patented PTFE membrane barrier properties not only reduce plasticizer extraction, shrinking, and membrane hardening but also limit dynamic changes that can result from swell, such as creep. Compared with uncoated products that are more susceptible to increases in DWP due to more aggressive fouling and changes in physical properties and weight, the PTFE-coated membrane improves the consistency of DWP (Headloss) values over the product life. This directly impacts long-term power costs and the ability of the system to distribute air uniformly across the tank floor. SSI Telemetry – the inside story solves maintenance problems At the click of a mouse, you will know the DWP of your diffuser membranes, the airflow rate to that monitored diffuser, and the air temperature in the submerged piping system. You can sense vibration, pipe rollover, and water in the grid. Automatic moisture purging and automatic acid dosing systems are available. Through multiple cameras, you can see both inside the grids and surface bubble patterns. Wet probes are also available for DO and WW temperatures. Tracking all this data on a user-friendly online dashboard facilitates communication between consultant and client, manufacturer and rep. This smart technology lets you locate problem areas and allocate resources more efficiently. SSI Telemetry is your preventive maintenance hub in the heart of the plant.
SOTE(%) 31-59
Advantages 1. Single mold technology to reduce costs. 2. Available in 2 versions",9",12". 3. 3/4" M NPT connection. 4. High efficiencies(SOTE) and low-pressure drops tested according to ASCE standards. 5. High resistance environmentally friendly polypropylene body(100℃). 6. Membrane with low plasticizer content to minimize the phenomena of loss of elasticity and shrinkage.
Company and Factory Visit Yes
Hole Size 1mm Or 2mm
Size(inch) 9/12
Mixed Batches Yes


Disc Diffuser Aeration System, Aeration Membrane Diffusers, SSI Diffusers



Applications:

SSI ECD Disc Diffuser Aeration System is a high-quality product designed to deliver superior performance in a variety of wastewater treatment applications. With ISO certification and made in Korea, you can be assured of the quality and durability of this product.

The SSI ECD Disc Diffuser Aeration System is available in two sizes, 9 and 12 inches, making it suitable for a wide range of wastewater treatment plants. The disc diffuser is manufactured with different types of membranes, and standard materials are EPDM and fluoropolymer layered EPDM, ensuring a long-lasting and reliable performance.

When it comes to application occasions and scenarios, the SSI ECD Disc Diffuser Aeration System is ideal for use in municipal and industrial wastewater treatment plants. The product is suitable for use in aeration tanks, oxidation ditches, and other types of wastewater treatment processes.

With its mixed batch capabilities, the SSI ECD Disc Diffuser Aeration System is an excellent choice for larger treatment plants that require multiple diffusers. The product can be customized with your logo, making it a great promotional item for your business.

Payment terms for the SSI ECD Disc Diffuser Aeration System include L/C, T/T, and Western Union, and delivery time is typically 5-8 weeks. With its superior performance, reliability, and durability, this product is an excellent investment for any wastewater treatment plant.

Overall, the SSI ECD Disc Diffuser Aeration System is an excellent choice for anyone looking for a high-quality diffuser system. Whether you are looking for SSI diffusers for municipal or industrial wastewater treatment plants, this product is sure to meet your needs.

Order your SSI ECD Disc Diffuser Aeration System today and experience the benefits of superior aeration membrane diffusers in your wastewater treatment plant!



Support and Services:

The Disc Type Diffuser is a high-performance product designed to provide efficient and reliable aeration in various water treatment applications. Our technical support and services for this product include:

- Installation guidance and support

- Troubleshooting assistance

- Maintenance recommendations and schedules

- Replacement parts and repair services

Our team of technical experts is dedicated to ensuring the optimal performance and longevity of your Disc Type Diffuser. Contact us for any inquiries or assistance.

EPDM SSI AFD Fine Bubble Aeration Disc Diffuser

Packing and Shipping:

Product Packaging:

  • 1 Disc Type Diffuser
  • 1 Power Cord
  • 1 User Manual

Shipping:

  • Ships within 1-2 business days
  • Free standard shipping within the US
  • International shipping available at additional cost


FAQ:

Q: What is the brand name of this diffuser?

A: The brand name is SSI.

Q: What is the model number for this diffuser?

A: The model number is ECD.

Q: Is this diffuser certified?

A: Yes, this diffuser is certified with ISO.

Q: Where is this diffuser made?

A: This diffuser is made in Korea.

Q: What are the payment terms for this diffuser?

A: The payment terms are L/C, T/T, and Western Union.

Q: How long will it take to receive the diffuser once ordered?

A: The delivery time is 5-8 weeks.
