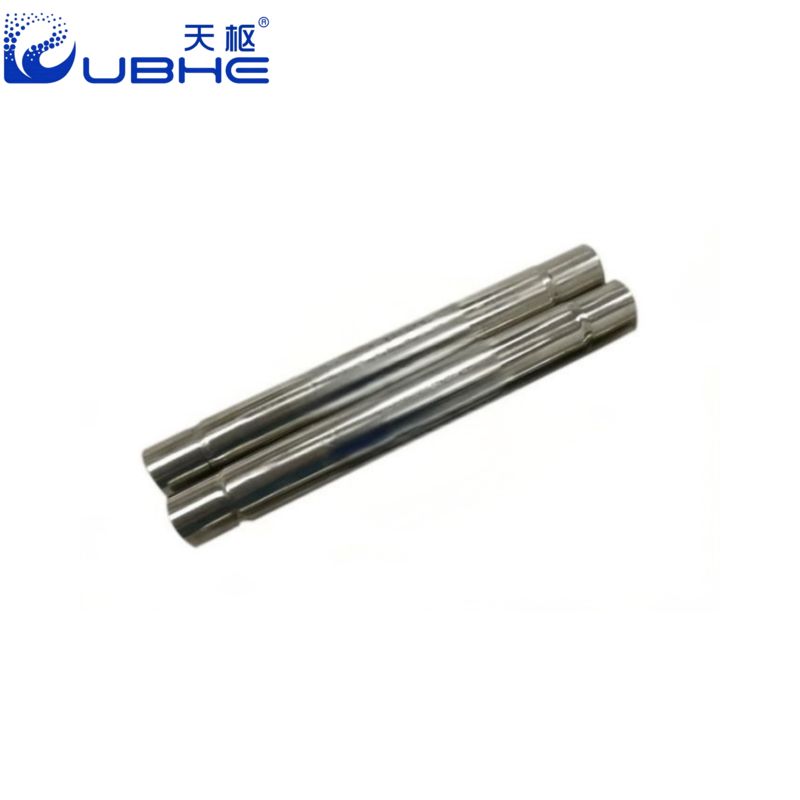

Name: Innovative Static Mixer Detachable and Fixed-Element Versions for Customizable Surface Treatment
Brand: SHANGHAI DUBHE ENVIRONMENTAL PROTECTION&TECHNOLOGY CO.,LTD
SKU: Re-SK
Availability: InStock

Home > Products > Static Mixer >

Innovative Static Mixer Detachable and Fixed-Element Versions for Customizable Surface Treatment

static mixer detachable element

static mixer fixed element

static mixer surface treatment

Brand Name:

DUBHE

Model Number:

Re-SK

Request A Quote

Innovative Static Mixer Detachable and Fixed-Element Versions for Customizable Surface Treatment

Product Details

Material:

304

Mixing Capacity:

1000L

Application:

Mix

Payment & Shipping Terms

Minimum Order Quantity

Innovative Static Mixer Detachable and Fixed-Element Versions for Customizable Surface Treatment

Get Best Price

Customizable Static Mixer for Your Specific Mixing Requirements

Get Best Price

Customizable Static Mixer for Your Specific Mixing Requirements

Get Best Price

Effortlessly achieve complete homogeneity with our static mixers even with challenging viscosity ratios or low flow conditions

Get Best Price

86-021-80510158

shdubhe@gmail.com

Contact Now

Product Description

What is static mixing?

Tubular Static Mixer
A tubular static mixer typically consists of three sections (though the number may be increased based on the properties of the mixed media) . Each section contains a fixed helical blade twisted at 180°, available in both left-hand and right-hand orientations. Adjacent sections feature helical blades with opposite rotational directions and are offset by 90°. To facilitate installation of the helical blades, the cylinder is split into two semi-circular halves, with flanges at both ends for connection. The seam between the cylinder halves is sealed with epoxy resin to ensure leak-proof performance. The helical blades remain stationary while only the materials or media being mixed move through them. As fluids pass through the mixer, pressure drop occurs without requiring external energy input. The mixing mechanism primarily involves flow division, radial mixing, and counter-rotation, enabling two media to continuously undergo intense blending and diffusion to achieve homogeneous mixing.

Innovative Static Mixer Detachable and Fixed-Element Versions for Customizable Surface Treatment 0

Which Industries Use Static Mixers?
- Water Purification
- Chemical Processing
- Solvent & Gas Blending
- Polymer Composition
- Flocculant Formulation
- pH Control
- Drinking Water Treatment
- Wastewater Management
- Chlorination
- Dechlorination
- Food Processing
- Pharmaceutical Manufacturing

Model NO.

Re-SK

Application

Granules, Liquid, Liquid with Suspended Solids, Powder, Viscous Fluid, Gas

Application Area

Agricultural Chemicals, Chemical, Daily Chemical, Engineering & Construction, Food, Metallurgy&Mineral, Pharmaceutical

Certification

Condition

New

Cooling Method

Air Cooling

Mixing Capacity

1000L & Above

Mixing Drum Shape

Disc

Stirring Type

Gravity

Warranty

1 year

Working

Shear Mixer

Material

Ss, Polypropylene, Teflon, PVDF, PVC

Mixer Type

Static Mixers

Layout Type

Horizontal

Operating Type

Continuous Operating

Transport Package

Wooden Case

Specification

DN12*400mm

Trademark

DUBHE

Origin

Wuxi City, China

Production Capacity

50000pieces/Year
