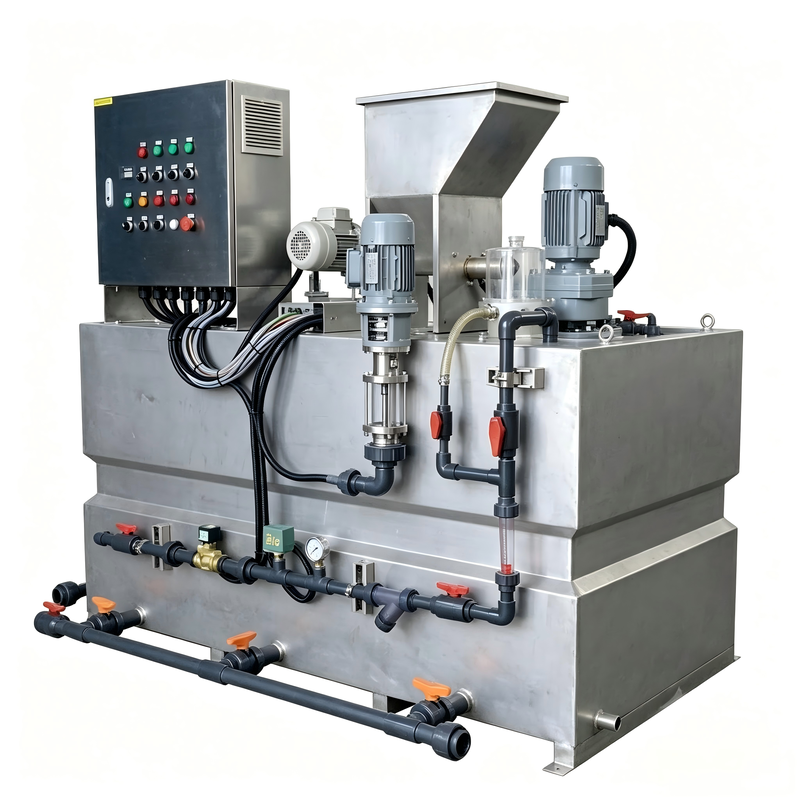

Name: Automatic Polymer Dosing Machine with Stainless Steel SUS304 / PP Construction and 1000-5000 L/h Preparation Capacity for Municipal Wastewater Treatment
Brand: SHANGHAI DUBHE ENVIRONMENTAL PROTECTION&TECHNOLOGY CO.,LTD
SKU: PL3-2000
Price: 7.00 USD
Availability: InStock

Home > Products > Solid Liquid Separator >

Automatic Polymer Dosing Machine with Stainless Steel SUS304 / PP Construction and 1000-5000 L/h Preparation Capacity for Municipal Wastewater Treatment

Stainless Steel SUS304 / PP Automatic Polymer Dosing Machine

1000-5000 L/h Preparation Capacity PAM Preparation Unit

Municipal Wastewater Treatment Polymer Dosing System

Place of Origin:

CHINA

Brand Name:

DUBHE

Certification:

ISO 9001

Model Number:

PL3-2000

Request A Quote

Product Details

Preparation Capacity:

1000-5000 L/h

Effective Volume:

1200-6600 L

Ripening Time:

50 Min

Solution Concentration:

0.05%-0.15%

Feeder Power:

0.12 KW

Tank Material:

Stainless Steel SUS304 / PP

Highlight:

Stainless Steel SUS304 / PP Automatic Polymer Dosing Machine

1000-5000 L/h Preparation Capacity PAM Preparation Unit

Municipal Wastewater Treatment Polymer Dosing System

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

USD 3,500-12,000 / Set

Packaging Details

Export-grade wooden case with moisture-proof film and reinforced steel frame

Delivery Time

30-50 working days

Payment Terms

T/T,L/C

Supply Ability

40 Sets per Month

High-Capacity Lamella Clarifier Inclined Plate Settler for Municipal Wastewater Treatment 50-200m³/h

Get Best Price

Stainless Steel Lamella Settler Corrosion-Resistant Inclined Plate Clarifier for Industrial Effluent 10-100m³/h

Get Best Price

Industrial Lamella Settler for Mining Tailings with Abrasion-Resistant Ceramic Coated Plates and Heavy Duty Sludge Scraper

Get Best Price

Food Processing Lamella Clarifier with Stainless Steel 304 and 15-60 m³/h Capacity for Beverage Slaughterhouse Effluent

Get Best Price

Contact Now

Product Description

Automatic Polymer Dosing Machine (PAM Preparation System) — Model PL3-2000

1. Equipment Overview

This automatic polymer dosing machine is a fully integrated PAM preparation and precision dosing system engineered for municipal and industrial wastewater treatment across Latin America. It automates the entire workflow from dry powder feeding, metered water, mixing, aging, to accurate dosing.

The system maintains precise PAM solution concentration between 0.05% and 0.15% with preparation capacities of 1,000 to 5,000 L/h. Features Spanish-language HMI, 60Hz-compatible motors, and corrosion-resistant construction for long-term outdoor deployment.

Automatic Polymer Dosing Machine (Model PL3) — Technical Specification Sheet

Model(PL3)	Capacity(L/h)	Effective Volume(L)	Ripening Time(min)	Power(kW)		Dimensions(m)			Nozzle(DN)
Model(PL3)	Capacity(L/h)	Effective Volume(L)	Ripening Time(min)	Feeder	Blender	L	W/W1	H/H1	Inlet	Outlet	Vent
1000	~1000	1200	50	0.12	0.55x3	1.96	1.26/0.86	1.7/0.99	DN25	DN32	DN32
2000	~2000	2400	50	0.12	0.55x3	2.53	1.50/1.1	2.2/1.18	DN25	DN32	DN32
3000	~3000	3800	50	0.12	0.55x3	2.83	1.55/1.2	2.5/1.43	DN25	DN32	DN32
5000	~5000	6600	50	0.12	0.75x3	3.9	2.00/1.5	2.6/1.45	DN40	DN40	DN40

2. Key Features

Fully Automatic Operation

PLC-Controlled End-to-End Automation: Integrated control manages dry powder feed, water regulation, multi-stage mixing, aging, and dosing discharge without manual steps for 24/7 unattended operation.
Bilingual HMI Touchscreen: Standard Spanish and English interface enables local operators to adjust parameters and monitor status without language barriers.

Precise Concentration Control

Dynamic Powder-to-Water Ratio: Variable-frequency drives on powder feeder and water pump fine-tune concentration from 0.05% to 0.15%, adapting to varying sludge characteristics.
Anti-Clumping Pre-Dispersion: Patented wetting cone with high-shear mixer prevents "fish-eye" polymer agglomerates for 100% polymer chain activation and maximum flocculation performance.

Latin America-Ready Construction

Material Options: Available in SUS304/SUS316L stainless steel, Polypropylene (PP), or coated carbon steel.
60Hz Electrical Compatibility: All motors pre-configured for 220V/380V 60Hz power supply standard across Latin America.

3. Target Applications

Municipal WWTPs: Sludge conditioning for belt filter presses, centrifuges, and screw presses across Mexico, Brazil, Colombia, and Chile.
Industrial Pretreatment: Coagulation and flocculation dosing for textile, tannery, and food processing effluent.
Potable Water Treatment: Flocculant preparation for surface water clarification in municipal drinking water plants.
