Batch Membrane-Bioreactor System Nitrogen Ammonia Removal

Tubular Membrane Bio-Reactor Products

Tubular Membrane Bio-Reactor Products

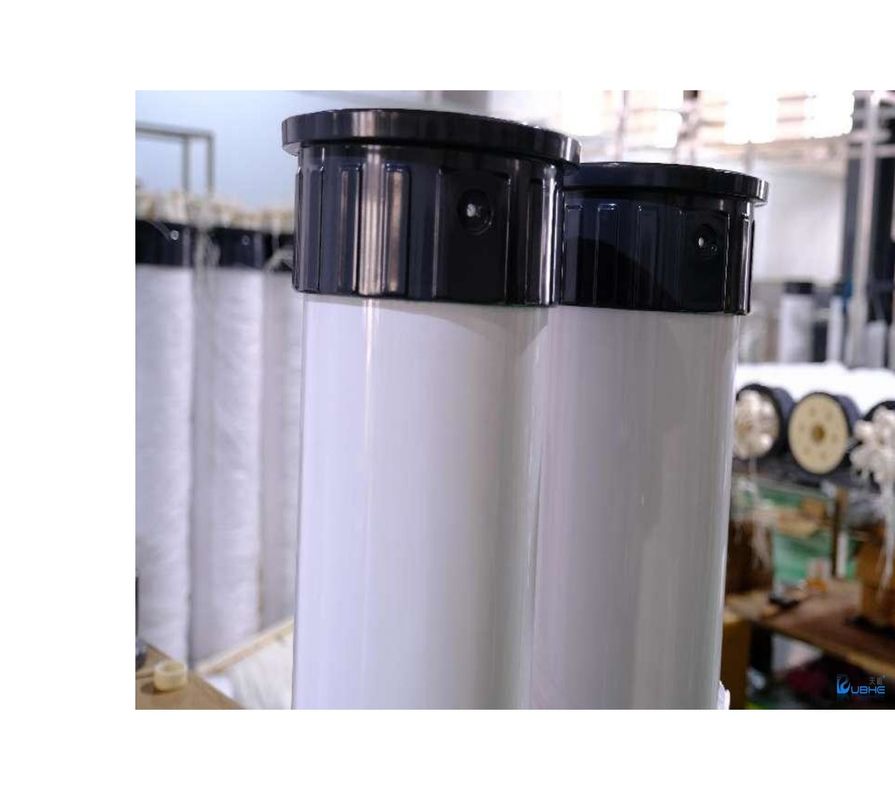

The tubular membrane is an internal pressure mosaic structure. The separation layer material can be designed as PVDF, PPBESPPESK, PES, CPVC and other materials, and the outer layer is PET or PP high-strength support material.

Features

The tubular membrane is an internal pressure mosaic structure. The separation layer material can be designed as PVDF, PPBESPPESK, PES, CPVC and other materials, and the outer layer is PET or PP high-strength support material.

Special epoxy resin is used to fix the membrane tube with a certain diameter in the membrane shell to form a tubular membrane module. Under certain pressure, the raw material liquid enters the inner cavity of the membrane tube, the permeated water permeates through the tube wall, and the concentrated solution is discharged from the other end of the membrane tube. It has the following technical characteristics:

1. It has a double-layer structure, the inner layer has a small pore size and uniform distribution, and the outer layer is loose and has high porosity;

2. Mosaic structure, with strong wear resistance and long service life;

3. The special functional layer on the inner surface is hydrophilic and smooth and has excellent anti-pollution performance.

Advantage

◆High water flux: the membrane porosity is over 70%, and under the same transmembrane pressure, the flux is increased by more than 30%.

◆High separation precision: The separation layer has uniform membrane pores and adjustable pore diameters of 0.01-0.2 μm to ensure the filtration precision of the membrane.

◆Low operating cost: The high-speed cross-flow of raw liquid in the membrane tube makes it difficult for pollutants to adhere to the membrane surface, which has obvious advantages of saving water, chemicals and energy.

◆Long service life: The surface of the membrane prepared by the polar segregation process has strong hydrophilic groups, which reduces the pollution caused by hydrophobic pollutants, and has a high recovery rate of membrane flux, high compressive strength and long service life Up to 5-10 years.

Application

◆Garbage leachate
◆Coking wastewater
◆Dehardening of high hardness wastewater
◆Oily wastewater
◆Municipal sewage reuse
◆Food and beverage turbidity removal

Main Technical Parameters

Note: PSD-TM08-XDUBHE-Tubular Membrane Tube Diameter-number of cores.

Tubular Membrane Technical Parameters

Reamrk: Operating pressure 50~600KPa; maximum operating temperature 75C; pH range 2-11; chlorine resistance 300000ppmh.

Q: Can you print our logo on the outer package?
A: Yes.
Q: Can I have a sample order?
A: No.
Q: What's the delivery time?
A: About 30 days.
Q: What is the lead time of an order?
A: About 7-30 days.
