Place of Origin:
CHINA
Brand Name:
DUBHE
Certification:
ISO
Model Number:
MH-25×10
Contact Us
Moving bed biofilm reactor (MBBR) is a type of wastewater treatment process that was first invented by Professor Hallvard Ødegaard at the Norwegian University of Science and Technology in the late 1980s.[1] The process takes place in an aeration tank with activated sludge and uses floating, recycled plastic carriers that a biofilm can grow on. The compact size and cheap wastewater treatment costs offer many advantages for the system. The main objective of using MBBR is water reuse and nutrient removal or recovery. In theory, wastewater will be no longer considered waste, it can be considered a resource.
Moving bed biofilm technology was developed due to early issues encountered with biofilm reactors, such as hydraulic instability and uneven biofilm distribution.

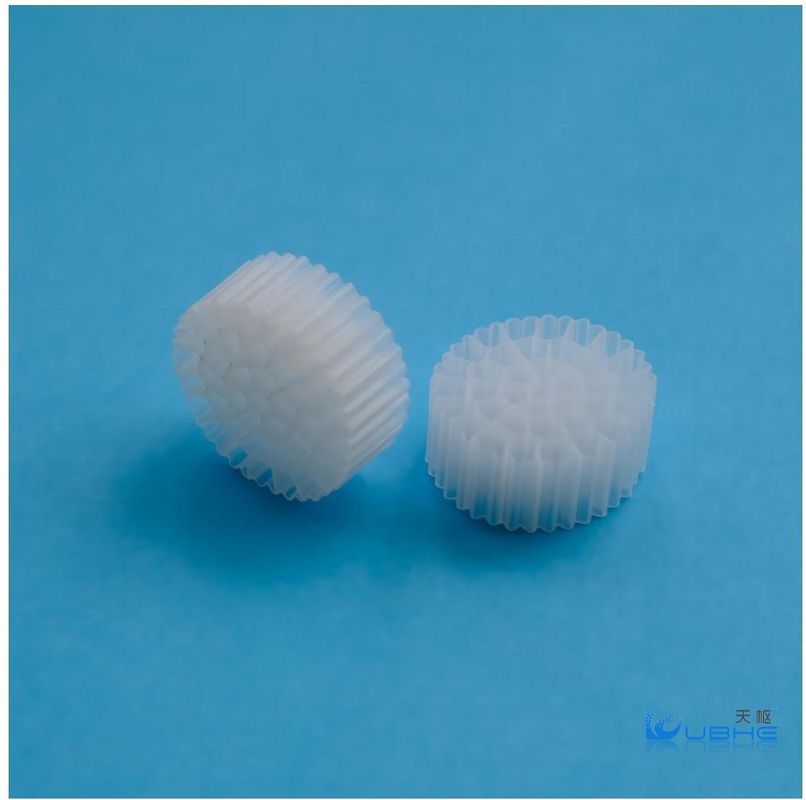

The MBBR system consists of an aeration tank (similar to an activated sludge tank) with special plastic carriers that provide a surface where a biofilm can grow. There is a wide variety of plastic carriers used in these systems. These carriers vary in surface area and in shape, each offering different advantages and disadvantages.
The surface area plays a very important role in biofilm formation. Free-floating carriers allow biofilms to form on the surface, therefore a large internal surface area is crucial for contact with water, air, bacteria, and nutrients. The carriers will be mixed in the tank by the aeration system and thus will have good contact between the substrate in the influent wastewater and the biomass on the carriers
The most preferable material is currently high-density polyethylene (HDPE) due to its plasticity, density, and durability.
To achieve a higher concentration of biomass in the bioreactors, hybrid MBBR systems have been used where suspended and attached biomass co-exist contributing both to biological processes.
Today, MBBR technology is used for municipal sewage treatment, industrial wastewater treatment, and decentralized wastewater treatment. This technology has been used in many different industries, some of them being:
The MBBR system is considered a biofilm or biological process, not a chemical or mechanical process. Other conventional biofilm processes for wastewater treatment are called trickling filters, rotating biological contactors (RBC), and biological aerated filters (BAF).
Biofilm processes in general require less space than activated sludge systems because the biomass is more concentrated, and the efficiency of the system is less dependent on the final sludge separation.MBBR systems do not need recycling of the sludge, which is the case with activated sludge systems.
The MBBR system is often installed as a retrofit of existing activated sludge tanks to increase the capacity of the existing system. The degree of filling of carriers can be adapted to the specific situation and the desired capacity. Thus an existing treatment plant can increase its capacity without increasing the footprint by constructing new tanks.
Some other advantages are:
Higher effective sludge retention time (SRT) which is favorable for nitrification
Responds to load fluctuations without operator intervention
Lower sludge production
Less area required
Resilient to toxic shock
Process performance independent of secondary clarifier (due to the fact that there is no sludge return line).
Q: What is the lead time of an order?
A:About 7-30 days
Q:Can I have a sample order?
A:No
Q:Can I have a sample order?
A:No
Q: What's the delivery time?
A:About 30 days
Q: Do you have inspection report for material?
A:Yes,we have
