Flat Sheet Membrane Bioreactor Dairy Industry Suspended Solids Large Particles

Flat Sheet Membrane Bioreactor Dairy Industry Suspended Solids Large Particles

flat sheet membrane bioreactor

membrane bioreactor dairy industry

flat membrane bioreactor

Place of Origin:

CHINA

Brand Name:

DUBHE

Certification:

ISO

Model Number:

DEM80-120

Contact Us

Request A Quote
Product Details
Product Name:
Flat Membrane Bio-Reactor Products
Aeration Pipe Interface Size:
DN60
Application:
Wastewater Treatment
Number Of Membrane Elements (piece):
120
Effective Area (㎡):
96
MLSS (mg/L):
8000~18000
Weight (kg):
620
Treated Water Volume(m³/d):
30~60
Payment & Shipping Terms
Payment Terms
L/C, T/T, Western Union
Product Description

Micro-Filtration: Suspended Solids, Bacteria, Large Particles DEM80-120

Flat Sheet Membrane Bioreactor Dairy Industry Suspended Solids Large Particles 0Introduction to Membrane Technology

Microfiltration is a membrane filtration process that is widely used in various industries and applications, including water treatment, food and beverage processing, pharmaceutical manufacturing, and biotechnology. It is a physical separation technique that utilizes membranes with relatively large pore sizes to separate suspended solids, bacteria, and large particles from a liquid stream.

Flat Sheet Membrane Bioreactor Dairy Industry Suspended Solids Large Particles 0Material Advantage

Good Quality Effluent: MBR systems produce high-quality effluent with low turbidity, suspended solids, and organic content. The membrane acts as a physical barrier, preventing the passage of solids and bacteria into the treated effluent. This is particularly advantageous for discharge to sensitive receiving waters or for reuse applications.

Flat Sheet Membrane Bioreactor Dairy Industry Suspended Solids Large Particles 2                 Flat Sheet Membrane Bioreactor Dairy Industry Suspended Solids Large Particles 3                 Flat Sheet Membrane Bioreactor Dairy Industry Suspended Solids Large Particles 4                 Flat Sheet Membrane Bioreactor Dairy Industry Suspended Solids Large Particles 5

Higher Heat-resistance              Ozone-depleted                        Antimicrobial                               Preservative

Flat Sheet Membrane Bioreactor Dairy Industry Suspended Solids Large Particles 0Features

1. Space saving: Compared with the traditional model, it only occupies one-third of the original area.
2. Low energy consumption: lower wind pressure can be used for oxygenation, compared with other traditional treatment processes, the power consumption is greatly reduced.
3. Low maintenance cost: the automatic control can be started with one button to realize unattended operation, and remote monitoring can be realized through the mobile phone APP.
4. Long service life: no human daily maintenance is required, and the service life is more than 10 years.

Flat Sheet Membrane Bioreactor Dairy Industry Suspended Solids Large Particles 0APPLICATION

1. Water Treatment: Microfiltration is extensively used in water treatment processes to remove suspended solids, turbidity, and microorganisms from water sources. It is effective in eliminating bacteria, algae, protozoa, and suspended particles, providing a barrier against pathogens and improving the overall water quality.

2. Beverage and Food Processing: Microfiltration is employed in the beverage and food industry for various purposes, such as clarification, sterilization, and removal of particulates. It helps remove unwanted particles, yeast, bacteria, and spoilage organisms from liquids like wine, beer, fruit juices, dairy products, and sauces, ensuring product stability and extending shelf life.

3. Pharmaceutical and Biotechnology: Microfiltration plays a vital role in pharmaceutical and biotechnology applications. It is used for sterile filtration, separation, and purification of pharmaceutical products, vaccines, enzymes, proteins, and cell cultures. It helps ensure the removal of microorganisms and contaminants while preserving the integrity of the desired product.

Flat Sheet Membrane Bioreactor Dairy Industry Suspended Solids Large Particles 0COMPONENT

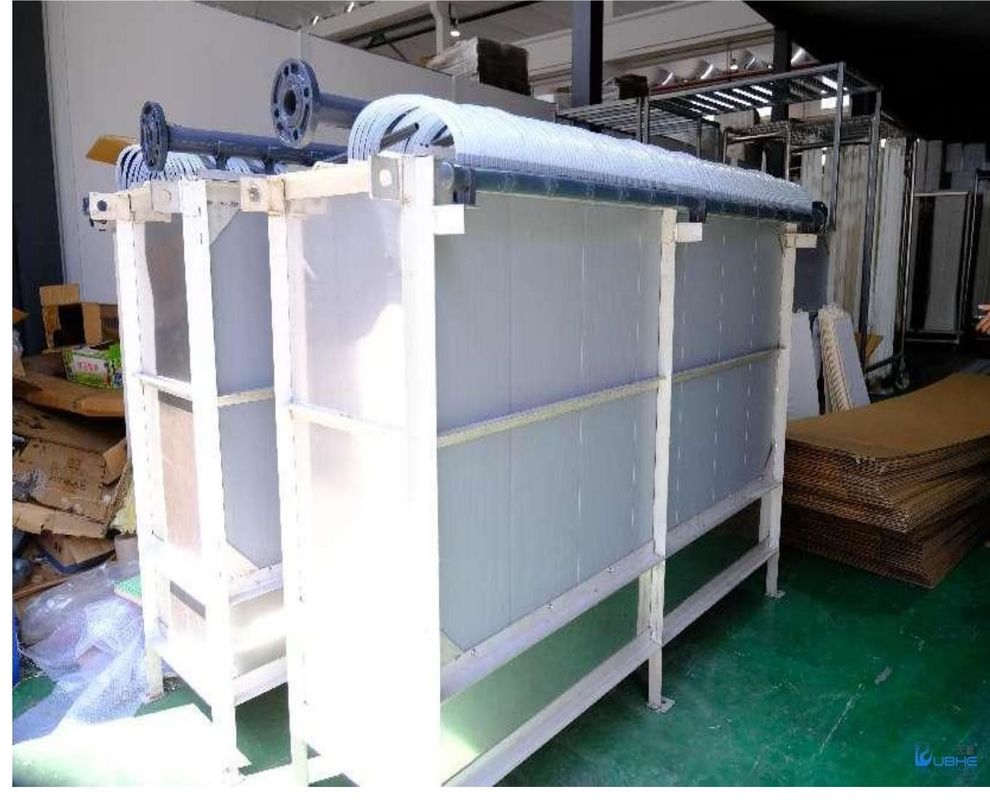

DEM series flat MBR membrane modules are composed of membrane element box and aeration box, in which the membrane element box is composed of membrane element, water-producing silicone hose, ABS water collection pipe, chute (fixed membrane element) and stainless steel bracket.

The aeration box is composed of UPVC main pipe, ABS aeration branch pipe, pipe flange and stainless steel bracket.


Flat Sheet Membrane Bioreactor Dairy Industry Suspended Solids Large Particles 9



Attention:

1. The membrane module is set in the membrane tank, and the treated water filtered by the membrane element is discharged through the hose and collecting pipe.

2. In order to prevent the pollution of the membrane element, the lower part of the membrane module is equipped with a perforated aeration pipe, which produces an aeration flow that can provide oxygen for the biological reaction of the aerobic tank and clean the surface of the membrane element at the same time.

3. SUS304 stainless steel is generally used as the material of membrane module support, if used for sewage containing high concentrations of chloride ions or other salts, please specify when ordering, so that the membrane module support can be made of the material suitable for it.

Flat Sheet Membrane Bioreactor Dairy Industry Suspended Solids Large Particles 0MBR Process Flow

Sewage flows through the mechanical grating (grating gap less than 1mm) to capture large particles of suspended solids and impurities and then flows into the sewage regulating tank for water quality and water quantity adjustment, and then lifted by the lifting pump to the MBR biological reaction system. The whole biochemical treatment system consists of a pre-treatment tank and MBR reaction tank, according to the incoming water quality and effluent requirements, to determine whether the need for the pre-treatment tank. The pretreatment tank can adopt hydrolysis acidification, an anaerobic or aerobic process, or an anoxic denitrification tank. MBR reaction tank is equipped with a submerged flat membrane module, constituting MBR- aerobic operation mode.

MBR reaction pool effluent directly into the reuse pool, adding disinfectant or ultraviolet light disinfection, the effluent discharge or pumped into the water pipeline network through the reuse, but also for nanofiltration or reverse osmosis system for further treatment and reuse.

Flat Sheet Membrane Bioreactor Dairy Industry Suspended Solids Large Particles 11

Flat Sheet Membrane Bioreactor Dairy Industry Suspended Solids Large Particles 0Technical Data & External Dimensions

Flat Sheet Membrane Bioreactor Dairy Industry Suspended Solids Large Particles 13

Flat Sheet Membrane Bioreactor Dairy Industry Suspended Solids Large Particles 14

Q1: Can you print our logo on the outer package?

A: Yes, you can.

Q2: Can we visit your company and factory?

A: Sure, if you can visit the factory, we will have relevant personnel to explain the products to you.

Q3: Can you accept mixed batches of different products?

A: We can accept the mixing of different equipment.

Q4: Do you have an inspection report for the material?

A: We can provide you with the relative certificates.
