9/12 Inch Disc Type Diffuser Intelligent Upgrades with EPDM and Fluoroelastomer Layers

9/12 Inch Disc Type Diffuser Intelligent Upgrades with EPDM and Fluoroelastomer Layers

Intelligent Upgrades Disc Type Diffuser

Fluoroelastomer Layers Disc Type Diffuser

EPDM Disc Type Diffuser

Place of Origin:

Korea

Brand Name:

SSI

Certification:

ISO

Model Number:

ECD

Contact Us

Request A Quote
Product Details
Service Life(year):
≥5
Color:
Black
Membrane Thickness(mm):
2
Mixed Batches:
Yes
Logo Printing:
Yes
Product Category:
SSI Aeration Diffusers
Hole Size:
1mm Or 2mm
Size(inch):
9/12
Payment & Shipping Terms
Delivery Time
5-8weeks
Payment Terms
L/C, T/T, Western Union, L/C, T/T, Western Union
Product Description

Product Description:

EPDM is a synthetic rubber product developed according to customer needs. Relying on its unique compound composition and compression molding process, the diaphragm is able to maintain its physical properties for a long time under minimal water pressure, is tear-resistant, and retains its shape after years of cyclic operations, producing microscopic bubbles. Our EPDM membrane products have been proven in a variety of municipal and industrial wastewater treatment applications with excellent results. However, standard EPDM is not recommended for use in applications where solvents, oils, or greases and high concentrations of metal salts are present.
Produced by compression molding process, the specific gravity and thickness are uniform. Resistant to pulling in multiple directions and resistant to changes in diaphragm material properties. High elastic coefficient, appropriate taper can reduce unit pressure, low pressure loss, high dissolution efficiency and long service life.
There is no hole in the center area of ​​the diaphragm. After the aeration system is turned off, the diaphragm will fall back to the base and become airtight. The entire diaphragm surface allows good air passage. The membrane is resistant to clogging and is at least 70% hydrophilic.
The maximum elongation at break is 700%, which is suitable for the process of cyclic opening and closing operations. It can still maintain its shape and produce fine bubbles during long-term operation.

9/12 Inch Disc Type Diffuser Intelligent Upgrades with EPDM and Fluoroelastomer Layers 0

Features:

1. Good anti-blocking and anti-backflow properties. The aerator is in the shape of a spherical crown. Even if the water quality of the aeration tank is complex, it will still operate intermittently and its surface will not easily accumulate mud. The diaphragm punching technology is unique and advanced, with diagonal incisions. In addition, a special-shaped sealing ring is set up in the center of the top to more effectively prevent water from flowing back.

2. The diaphragm has strong tear resistance. The rubber diaphragm is in the shape of a spherical crown. When working, the holes are opened to receive even force, reducing fatigue deformation. It has good resilience, is not easy to tear, and has a long service life.

3. Even air distribution, energy saving and high efficiency. The working surface of the spherical crown aerator is relatively larger than that of the flat type, with small bubbles, uniform air distribution, high oxygenation efficiency, and good treatment effect. Especially when working with low gas volume, this characteristic can still be exerted, and operation and management are convenient.

4 Resistant to aging and corrosion. The spherical crown-shaped aeration diaphragm is made of high-quality rubber, and the supporting tray and wedge-shaped insert plate are evenly made of engineering plastics. These materials have excellent physical and mechanical properties. It has excellent aging resistance and is resistant to chemical corrosion such as acids, alkali and chemicals.

5. The resistance loss is small. Due to the aerator's unique anti-blocking and waterproof backflow properties, the check valve attached to the flat micropore aerator is eliminated, thereby reducing the resistance of the aerator. Energy consumption is saved.

9/12 Inch Disc Type Diffuser Intelligent Upgrades with EPDM and Fluoroelastomer Layers 1

Technical Parameters:

MOQ Limit YES
Logo Printing Yes

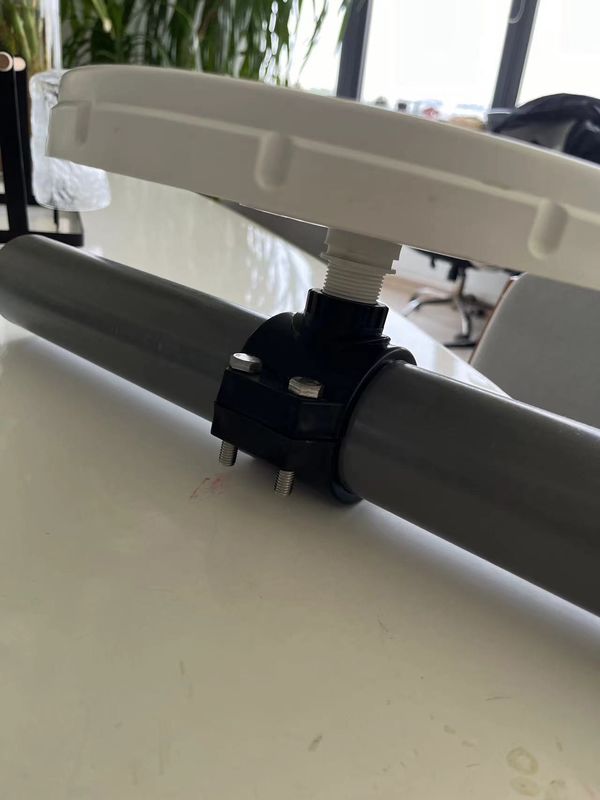

Installation Method SSI disk aerator can be installed on PVC branch pipe through quick connect saddle, Grommet connection, etc. SSI pre-installed aeration disk, rotate 1/4 turn can be installed on the quick connect saddle, this saddle is suitable for 9" and 12" aeration disk for installation.
SOTE(%) 31-59
Intelligent Upgrade Options Patented PTFE membranes prolong the efficiency and reduce whole-life costs. SSI’s patented PTFE membrane barrier properties not only reduce plasticizer extraction, shrinking, and membrane hardening but also limit dynamic changes that can result from swell, such as creep. Compared with uncoated products that are more susceptible to increases in DWP due to more aggressive fouling and changes in physical properties and weight, the PTFE-coated membrane improves the consistency of DWP (Headloss) values over the product life. This directly impacts long-term power costs and the ability of the system to distribute air uniformly across the tank floor. SSI Telemetry – the inside story solves maintenance problems At the click of a mouse, you will know the DWP of your diffuser membranes, the airflow rate to that monitored diffuser, and the air temperature in the submerged piping system. You can sense vibration, pipe rollover, and water in the grid. Automatic moisture purging and automatic acid dosing systems are available. Through multiple cameras, you can see both inside the grids and surface bubble patterns. Wet probes are also available for DO and WW temperatures. Tracking all this data on a user-friendly online dashboard facilitates communication between consultant and client, manufacturer and rep. This smart technology lets you locate problem areas and allocate resources more efficiently. SSI Telemetry is your preventive maintenance hub in the heart of the plant.
Hole Size 1mm Or 2mm
Reference Data Remark: We MANUFACTURE OUR DISC DIFFUSERS WITH DIFFERENT TYPE MEMBRANES. STANDARD MATERIALS ARE EPDM AND FLUOROELA STOMER LAYERED EPDM.
Advantages 1. Single mold technology to reduce costs. 2. Available in 2 versions",9",12". 3. 3/4" M NPT connection. 4. High efficiencies(SOTE) and low-pressure drops tested according to ASCE standards. 5. High resistance environmentally friendly polypropylene body(100℃). 6. Membrane with low plasticizer content to minimize the phenomena of loss of elasticity and shrinkage.
Product Category SSI Aeration Diffusers
Size(inch) 9/12


Applications:

Installation is a breeze with multiple options available. The SSI disk aerator can be installed on PVC branch pipes through quick connect saddles or grommet connections. The pre-installed aeration disk can be rotated 1/4 turn and installed on the quick connect saddle, which is suitable for 9" and 12" aeration disks. With a 3/4" M NPT connection, you can easily integrate the SSI ECD into your existing system.

Not only is the SSI Disc Type Diffuser easy to install, but it also boasts impressive features and advantages. The single mold technology reduces costs while still delivering high efficiencies (SOTE) and low-pressure drops tested according to ASCE standards. The high resistance, environmentally friendly polypropylene body can withstand temperatures up to 100℃. Meanwhile, the membrane has low plasticizer content to minimize the phenomena of loss of elasticity and shrinkage.

Choose from two versions of the SSI Disc Type Diffuser - 9 inches or 12 inches - to suit your specific needs. With its sleek black color and the option for logo printing, this diffuser is both practical and stylish. Payment terms include L/C, T/T, and Western Union, with a delivery time of 5-8 weeks.

Invest in the SSI Disc Type Diffuser for your wastewater treatment system and experience the benefits of fine bubble diffusers. Trust in the quality and reliability of SSI Diffusers, a leading brand in the industry.



Support and Services:

Our Disc Type Diffuser product is designed with high-quality materials to ensure long-lasting performance and durability. Our team of technical support experts is available to assist you with any questions or issues you may have with your product.

We offer a range of services including installation assistance, maintenance recommendations, and troubleshooting support. Our goal is to provide you with a seamless experience and ensure your satisfaction with our product.

If you require any assistance or have any questions regarding our Disc Type Diffuser product, please do not hesitate to contact us.



Packing and Shipping:

Product Packaging and Shipping:

The Disc Type Diffuser product will be carefully packaged to ensure that it arrives to you in perfect condition. We use eco-friendly materials for our packaging to reduce waste and protect the environment. Your order will be shipped within 1-2 business days after your payment is confirmed. We offer free shipping within the continental United States and we use reliable carriers to ensure timely delivery of your order. Please allow 3-5 business days for delivery after your order has been shipped.



FAQ:

Here are some frequently asked questions and answers about SSI's ECD Disc Type Diffuser:

Q: What is the ECD Disc Type Diffuser?

A: The ECD Disc Type Diffuser is a device that is attached to the bottom of a wastewater treatment tank and diffuses air into the water to promote the growth of beneficial bacteria that break down organic matter.

Q: What is the brand name of the ECD Disc Type Diffuser?

A: The brand name of the ECD Disc Type Diffuser is SSI.

Q: Where is the ECD Disc Type Diffuser made?

A: The ECD Disc Type Diffuser is made in Korea.

Q: What certifications does the ECD Disc Type Diffuser have?

A: The ECD Disc Type Diffuser is certified by ISO.

Q: What are the accepted payment terms for purchasing the ECD Disc Type Diffuser?

A: The accepted payment terms for purchasing the ECD Disc Type Diffuser are L/C, T/T, and Western Union.

Q: What is the delivery time for the ECD Disc Type Diffuser?

A: The delivery time for the ECD Disc Type Diffuser is 5-8 weeks.
