Patented PTFE Membrane Disc Type Diffuser Intelligent Upgrade Options for Black MOQ Limit

Patented PTFE Membrane Disc Type Diffuser Intelligent Upgrade Options for Black MOQ Limit

PTFE Membrane Disc Type Diffuser

Intelligent Upgrade Options Disc Type Diffuser

Patented PTFE Membrane Disc Type Diffuser

Place of Origin:

Korea

Brand Name:

SSI

Certification:

ISO

Model Number:

ECD

Contact Us

Request A Quote
Product Details
Service Life(year):
≥5
Reference Data:
Remark: We MANUFACTURE OUR DISC DIFFUSERS WITH DIFFERENT TYPE MEMBRANES. STANDARD MATERIALS ARE EPDM AND FLUOROELA STOMER LAYERED EPDM.
SOTE(%):
31-59
Advantages:
1. Single Mold Technology To Reduce Costs. 2. Available In 2 Versions",9",12". 3. 3/4" M NPT Connection. 4. High Efficiencies(SOTE) And Low-pressure Drops Tested According To ASCE Standards. 5. High Resistance Environmentally Friendly Polypropylene Body(10
Membrane Thickness(mm):
2
Product Name:
EPDM SSI AFD Fine Bubble Aeration Disc Diffuser
Company And Factory Visit:
Yes
Mixed Batches:
Yes
Payment & Shipping Terms
Delivery Time
5-8weeks
Payment Terms
L/C, T/T, Western Union, L/C, T/T, Western Union
Product Description

Product Description:

SSI aeration disks and diaphragms are designed for efficiency and ease of use. We make connecting aeration trays to pipes easy using SSI's exclusive PODs™ connectors, economical universal Grommet connectors, or proprietary SSI® Quick Connect Saddles. Each method is designed to operate at 15 psig air pressure without leaking and withstand a pull load of 200 pounds.

Liftable aeration system

Microporous aeration systems are divided into fixed and liftable types in terms of installation form. All aerators and piping systems of the fixed aeration system are fixed at the bottom of the biochemical tank. Affected by the installation form, the fixed aeration system needs to be stopped for maintenance or replacement after water release and dredging. The liftable aeration system improves the installation structure of the pipeline system. The installation, maintenance, cleaning and overall replacement of the aeration system can be carried out without draining the water into the clear tank.

In recent years, as the time for maintenance of sewage plants after approval has become shorter and shorter, and accompanied by high maintenance costs and losses during the shutdown period, most owners have realized the huge advantages of using liftable aeration systems. , the use of liftable aeration systems will become the future development trend.

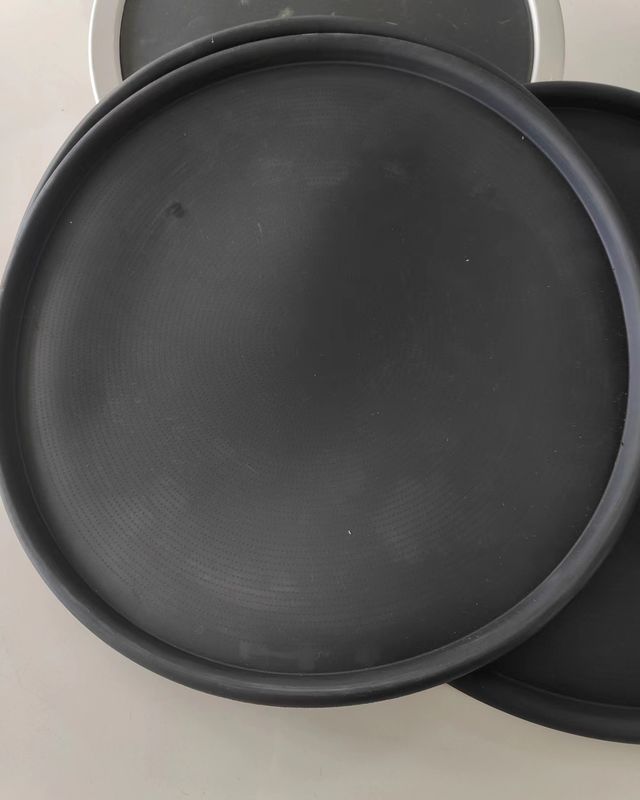

Patented PTFE Membrane Disc Type Diffuser Intelligent Upgrade Options for Black MOQ Limit 0

Features:

When the product is filled with air, it is compressed by gas, and the micropores on the rubber diaphragm expand by themselves to fill the pool with oxygen. The bubbles are cut through the micropores and become smaller. The size of the bubbles can be adjusted by itself as the air volume increases or decreases, thereby achieving better oxygenation effects. The design of the rubber diaphragm peripheral sealing fixed ring and O-ring ensures the air sealing performance between the rubber diaphragm and the fixed plate. When the air pressure increases, the sealing ability also increases, which can effectively prevent air leakage. When aeration stops, the aerator diaphragm has a self-closing function and is equipped with a check valve. The micropores on the rubber diaphragm will close automatically, so that sewage will not enter the aerator system and sludge can be prevented clogged.

After stopping aeration for a long time, normal aeration can still be achieved. The aerator and air distribution pipe are connected through the thread in the special rubber adapter, which facilitates the connection and disassembly of the aeration system, and facilitates maintenance and replacement. At the same time, the special rubber adapter has a sealing function after the thread is tightened, ensuring a firm connection and reliable sealing.

Patented PTFE Membrane Disc Type Diffuser Intelligent Upgrade Options for Black MOQ Limit 1

Technical Parameters:

Attribute Value
Company and Factory Visit Yes
SOTE (%) 31-59
Intelligent Upgrade Options Patented PTFE membranes prolong the efficiency and reduce whole-life costs. SSI’s patented PTFE membrane barrier properties not only reduce plasticizer extraction, shrinking, and membrane hardening but also limit dynamic changes that can result from swell, such as creep. Compared with uncoated products that are more susceptible to increases in DWP due to more aggressive fouling and changes in physical properties and weight, the PTFE-coated membrane improves the consistency of DWP (Headloss) values over the product life. This directly impacts long-term power costs and the ability of the system to distribute air uniformly across the tank floor. SSI Telemetry – the inside story solves maintenance problems At the click of a mouse, you will know the DWP of your diffuser membranes, the airflow rate to that monitored diffuser, and the air temperature in the submerged piping system. You can sense vibration, pipe rollover, and water in the grid. Automatic moisture purging and automatic acid dosing systems are available. Through multiple cameras, you can see both inside the grids and surface bubble patterns. Wet probes are also available for DO and WW temperatures. Tracking all this data on a user-friendly online dashboard facilitates communication between consultant and client, manufacturer and rep. This smart technology lets you locate problem areas and allocate resources more efficiently. SSI Telemetry is your preventive maintenance hub in the heart of the plant.
Installation Method SSI disk aerator can be installed on PVC branch pipe through quick connect saddle, Grommet connection, etc. SSI pre-installed aeration disk, rotate 1/4 turn can be installed on the quick connect saddle, this saddle is suitable for 9" and 12" aeration disk for installation.
Service Life(year) ≥5
MOQ Limit YES
Logo Printing Yes
Product Name EPDM SSI AFD Fine Bubble Aeration Disc Diffuser
Size(inch) 9/12
Reference Data Remark: We MANUFACTURE OUR DISC DIFFUSERS WITH DIFFERENT TYPE MEMBRANES. STANDARD MATERIALS ARE EPDM AND FLUOROELA STOMER LAYERED EPDM.
Keywords SSI Diffusers, Efficient Aeration Diffusers, Fine Bubble Diffusers


Applications:

The SSI ECD Disc Type Diffuser is designed to provide high oxygen transfer and is ideal for use in industrial aeration systems. It is suitable for both large and small  scale aeration projects, including municipal wastewater treatment plants, fish farms, and industrial wastewater treatment systems. With a SOTE of 31-59%, the diffuser effectively delivers oxygen to the water, promoting healthy aquatic life and efficient treatment processes.

The SSI ECD Disc Type Diffuser comes in 9/12 inch sizes and is easy to install. The installation method involves connecting the diffuser to a PVC branch pipe through quick connect saddle, grommet connection, or other suitable methods. The pre-installed aeration disk can be quickly rotated 1/4 turn to install it on the quick connect saddle, which is suitable for both 9" and 12" aeration disks.

SSI manufactures its disc diffusers using different types of membranes, with standard materials being EPDM and fluorocarbon layered EPDM. The diffuser's black color gives it a sleek and professional look, making it suitable for a variety of indoor and outdoor installations.

SSI accepts various payment terms, including L/C, T/T, and Western Union, and the delivery time is 5-8 weeks. The SSI ECD Disc Type Diffuser is a reliable and efficient aeration system that meets the needs of a wide range of industrial applications.

 EPDM SSI AFD Fine Bubble Aeration Disc Diffuser

Support and Services:

Our Disc Type Diffuser product comes with comprehensive technical support and services to ensure the best performance and longevity of the product. Our team of experts is available to provide assistance with installation, operation, and maintenance of the diffuser system. We also offer customized solutions to meet specific project requirements, including diffuser sizing and selection, aeration system design, and performance optimization. Our technical support team is committed to providing timely and efficient service to resolve any issues or concerns that may arise.



Packing and Shipping:

Product Packaging:

  • 1 Disc Type Diffuser
  • 1 Power Cord
  • 1 User Manual

Shipping:

  • Shipping Method: Standard Shipping
  • Estimated Delivery Time: 5-7 business days
  • Shipping Cost: $5.99


FAQ:

Q: What is the brand name of this disc type diffuser product?

A: The brand name of this disc type diffuser product is SSI.

Q: What is the model number of this disc type diffuser product?

A: The model number of this disc type diffuser product is ECD.

Q: Is this disc type diffuser product certified?

A: Yes, this disc type diffuser product is certified with ISO.

Q: Where is this disc type diffuser product made?

A: This disc type diffuser product is made in Korea.

Q: What are the payment terms for this disc type diffuser product?

A: The payment terms for this disc type diffuser product are L/C, T/T, and Western Union.

Q: What is the delivery time for this disc type diffuser product?

A: The delivery time for this disc type diffuser product is 5-8 weeks.
