Product Description:

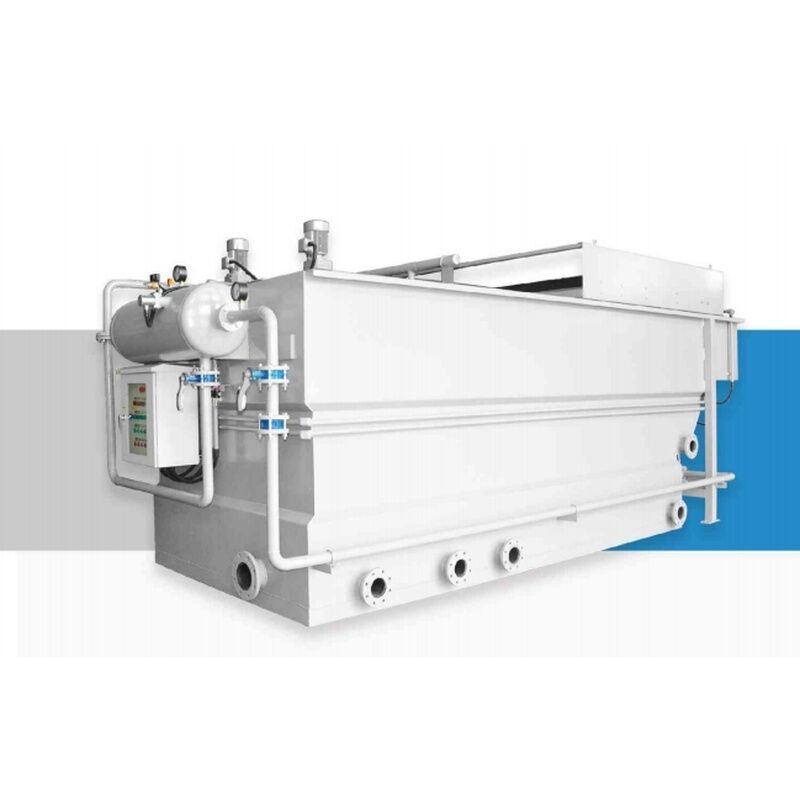

The DAF-FP compact dissolved air flotation system is purpose-built for food processing plants, slaughterhouses, and beverage manufacturing facilities. Its space-saving design integrates the dissolved air tank, flotation chamber, and skimming mechanism into a single compact unit. By generating a dense cloud of micro-bubbles through the pressurized dissolved air release system, it efficiently separates grease, oil, suspended solids, and organic matter from wastewater. This system is widely adopted across Latin American food industry operations in Brazil, Argentina, Mexico, and Colombia.
Features:
- Product Name: Compact Dissolved Air Flotation DAF System
- Model: DAF-FP
- Application: Food Processing and Slaughterhouse Wastewater
- Material: Stainless Steel 304
- Treatment Capacity: 1-100 m3/h
- Grease Removal Rate: Above 95%
- Design: Compact Space-Saving Footprint
- Automation: Fully Automatic PLC Control
DAF / IDAF (Technical Specifications)
| Model |
Capacity |
Power (kW) |
Dimension (m) |
Nozzle list (DN) |
DAF/
IDAF |
m³/h |
Recycle
pump |
Air
compressor |
Skimmer |
IDAF
Fast mixer |
IDAF
Slow mixer |
DAF
L₁/L₂ |
IDAF
L₁/L₂ |
W₁/W₂ |
H₁/H₂ |
Inlet
(a) |
Outlet
(b) |
Sludge
outlet (c) |
Vent
nozzle (d) |
| 003 |
~3 |
0.75 |
0.55 |
0.12 |
0.37 |
0.25 |
3.6/2.8 |
4.1/3.2 |
2.4/1.2 |
2.2/1.7 |
50 |
50 |
80 |
80 |
| 005 |
~5 |
1.1 |
0.55 |
0.12 |
0.37 |
0.25 |
3.8/3.0 |
4.4/3.6 |
2.4/1.2 |
2.2/1.7 |
80 |
80 |
80 |
80 |
| 010 |
~10 |
4 |
0.55 |
0.12 |
0.37 |
0.25 |
4.3/3.3 |
5.0/4.0 |
2.9/1.7 |
2.4/1.9 |
100 |
100 |
100 |
100 |
| 020 |
~20 |
4 |
0.75 |
0.12 |
0.37 |
0.25 |
5.7/4.8 |
6.2/5.2 |
3.2/2.2 |
2.4/1.9 |
150 |
100 |
100 |
100 |
| 030 |
~30 |
5.5 |
0.75 |
0.12 |
0.37 |
0.25 |
6.5/5.5 |
7.7/6.7 |
3.2/2.2 |
2.4/1.9 |
150 |
150 |
150 |
100 |
| 040 |
~40 |
5.5 |
0.75 |
0.12 |
0.75 |
0.37 |
6.5/5.5 |
7.7/6.7 |
3.6/2.7 |
2.4/1.9 |
200 |
200 |
150 |
100 |
| 050 |
~50 |
7.5 |
0.75 |
0.12 |
0.75 |
0.37 |
7.3/6.3 |
8.8/7.8 |
3.6/2.7 |
2.4/1.9 |
200 |
200 |
150 |
100 |
| 080 |
~80 |
11 |
1.5 |
0.12 |
1.5 |
0.37 |
8.9/7.6 |
10.6/9.2 |
4.4/3.4 |
2.7/2.3 |
250 |
200 |
150 |
100 |
| 100 |
~100 |
11 |
1.5 |
0.12 |
1.5 |
0.37 |
10.8/9.4 |
13.2/11.8 |
4.4/3.4 |
2.7/2.3 |
300 |
250 |
150 |
100 |
| 120 |
~120 |
11 |
2.2 |
0.12 |
1.5 |
0.37 |
11.7/10.4 |
14.2/12.8 |
4.4/3.4 |
2.7/2.3 |
300 |
250 |
150 |
100 |
| 150 |
~150 |
15 |
3 |
0.12 |
1.5 |
0.37 |
13.5/12.0 |
15.8/14.4 |
4.5/3.8 |
2.7/2.3 |
300 |
300 |
150 |
100 |
Process Flow Diagram:
Applications:
This compact DAF dissolved air flotation system is ideal for meat processing and slaughterhouse wastewater, poultry processing effluent, dairy and cheese plant wastewater, vegetable and fruit washing water, beverage bottling plant discharge, and cooking oil refinery wastewater. It serves food industry clients across Latin America including Brazil, Argentina, Uruguay, Mexico, Colombia, and Chile, delivering efficient grease and suspended solids separation in limited-space plant environments.
Support and Services:
- Remote installation support and on-site commissioning for Latin American projects
- System troubleshooting and diagnostic services
- Preventive maintenance programs and genuine spare parts supply
- Operator training with bilingual technical manuals (English and Spanish)
- System upgrades and retrofit services for existing installations
Packing and Shipping:
Product Packaging:
- Export-grade wooden case with anti-corrosion moisture-proof wrapping
- Compact unit configuration optimized for containerized sea freight
- Includes operation manual, maintenance guide, and certification documents
Shipping:
- Ocean freight to principal Latin American ports: Santos, Buenos Aires, Montevideo, Cartagena, Manzanillo
- Freight charges calculated based on destination and order specifications
- Real-time tracking information provided after shipment
FAQ:
Q: What is the brand of this DAF system?
A: The brand is DUBHE.
Q: What is the model number?
A: DAF-FP (Food Processing).
Q: Is this suitable for slaughterhouse wastewater?
A: Yes, the DAF-FP is specifically designed for slaughterhouse and meat processing wastewater with high grease content removal above 95%.
Q: What certifications does this system hold?
A: ISO 9001 certified.
Q: What is the MOQ?
A: Minimum order quantity is 1 set.
